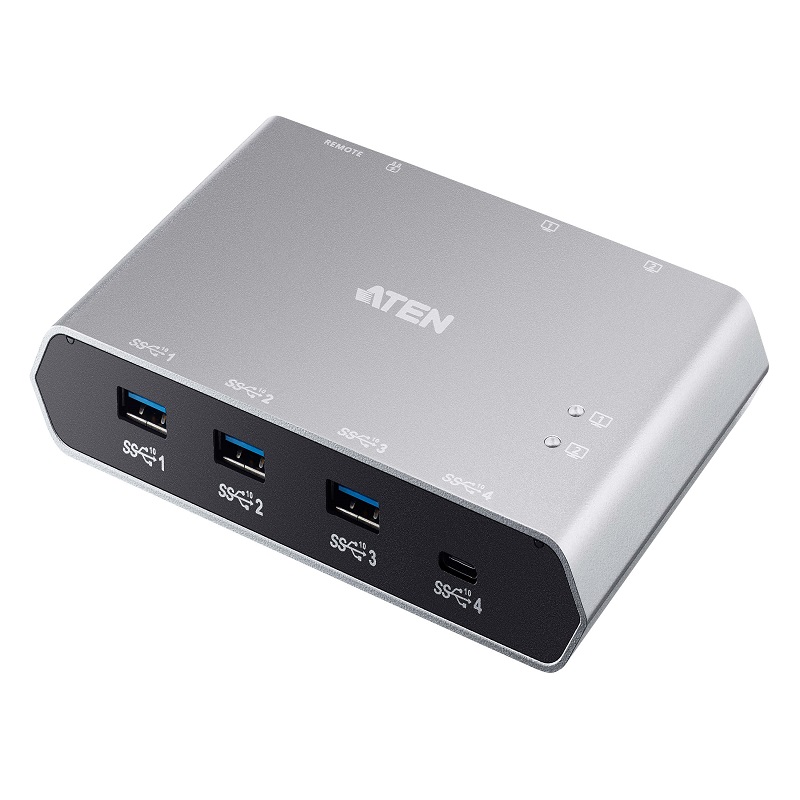

2-Port USB-C Gen 2 Sharing Switch with Power Pass-through

Product Code : US3342

Brand Category : Docks and Switches

Description

Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rates up to 10Gbps
Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed)*
BEZEL X – Enable file transfer function and mice control cross two platforms, Windows and Mac
Supports power profiles 5V, 9V, 15V, and 20V power specification
Switch device via Remote Port Selector by pressing a button
LEDs Console Indicator – Allow users to know which computer is active
Plug and play – No drivers or external power adapter needed
Over-current protection
Apple M1 chip compatible (BazelX works with Rosetta on M1 Chipset)

* For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions should be at least 5V, 3A.

Technical Specification

Computer Connections	2
Connectors
Computer	USB 3.2 Gen 2 Type-C Female (Black) x 2 Note: This USB-C port is for data transmission only, USB-C monitor is not supported.

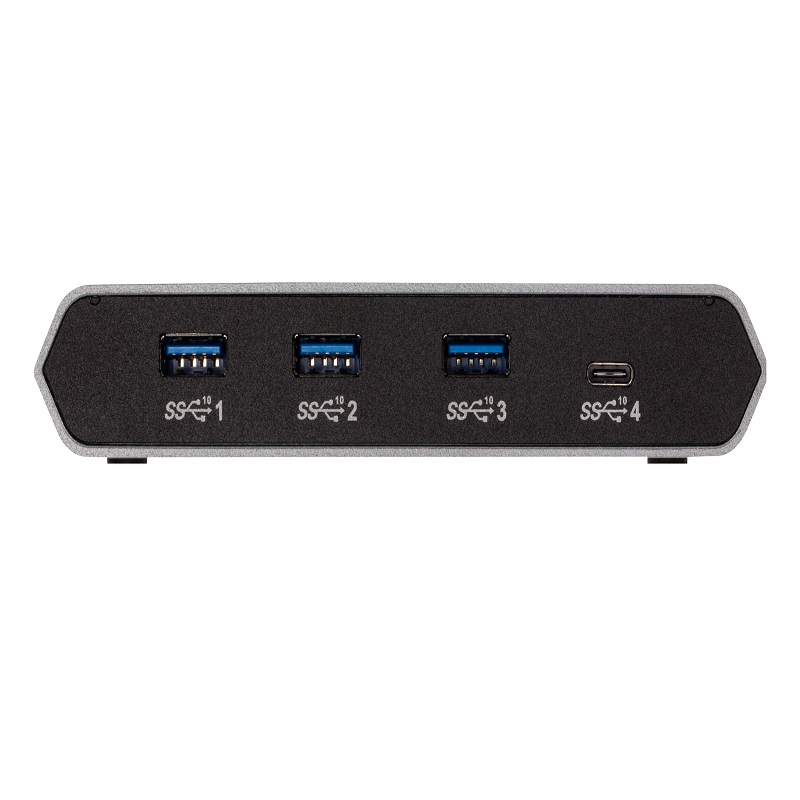

Device	USB 3.2 Gen 2 Type-A Female (Blue) × 3 USB 3.2 Gen 2 Type-C Female (black) x 1
Power	USB Type-C Female x 1, supports USB PD3.0 at 5V, 9V, 15V and 20V output* * For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions should be at least 5V, 3A.
Port Selection
Input	Remote port selector / software
Power Consumption	DC5V:0.43W:428BTU
LEDs
Selected	2 (White)
Environmental
Operating Temperature	0-40℃
Storage Temperature	-20-60℃
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.26 kg ( 0.57 lb )
Dimensions (L x W x H)	14.30 x 9.00 x 2.38 cm (5.63 x 3.54 x 0.94 in.)
