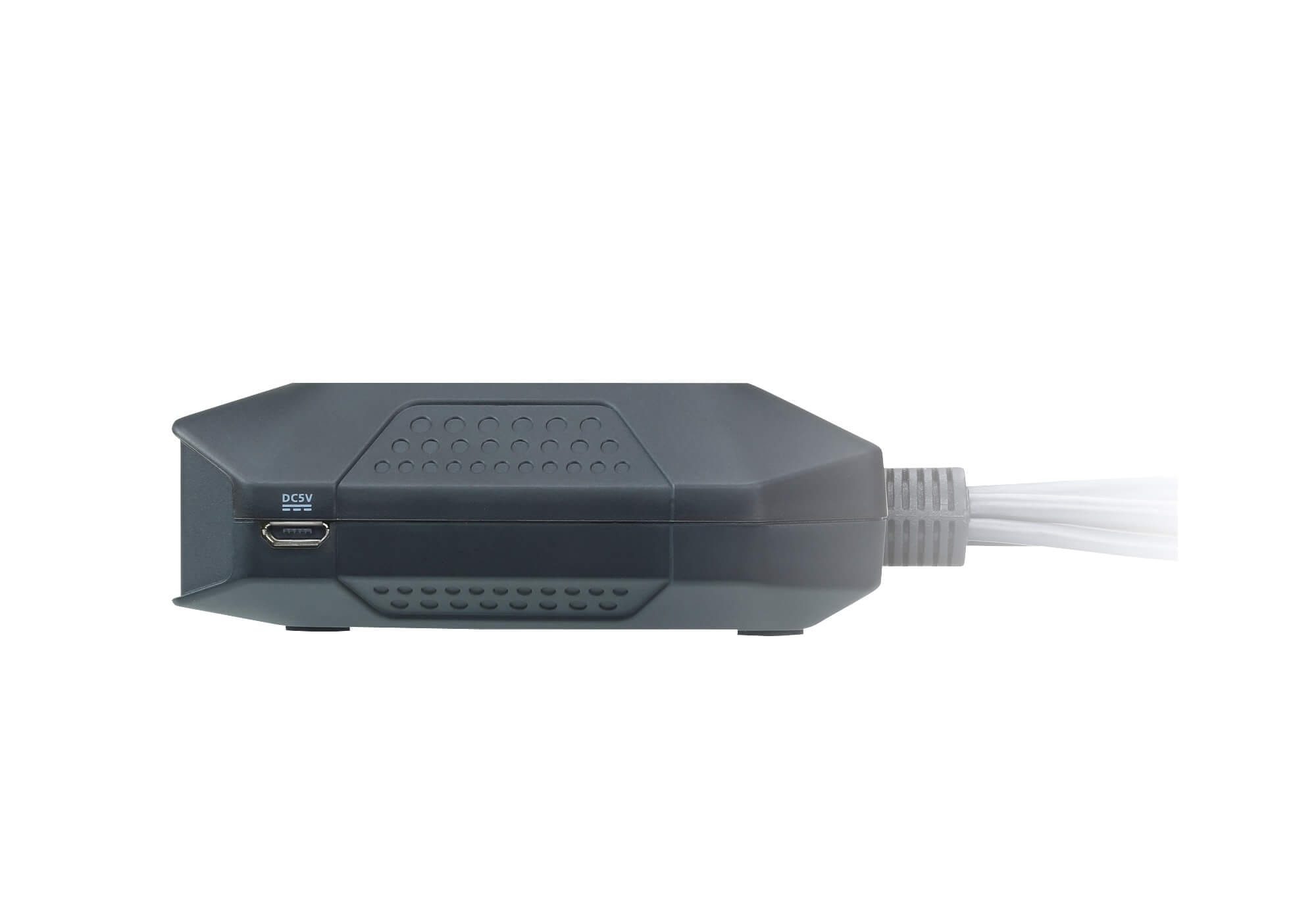

2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector

Product Code : CS22DP

Brand Category : Cable KVM Switches

Description

One KVM console controls two USB DisplayPort computers
Superior video quality – up to 4096 x 2160 @ 30Hz
Computer selection via Remote Port Selector
Multiplatform support – Windows, Mac, and Linux
Supports microphone and speakers
The console USB ports can be used for USB peripheral sharing1
Supports USB hot-plugging
DisplayPort 1.1 compliant; HDCP compliant2
Compatible with widescreen LCD monitors
Bus-powered

1. The CS22DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.
2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.1 to avoid compatibility issue.

Technical Specification

Computer Connections	2
Port Selection	Remote Port Selector
Connectors
Console Ports	1 x DisplayPort Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

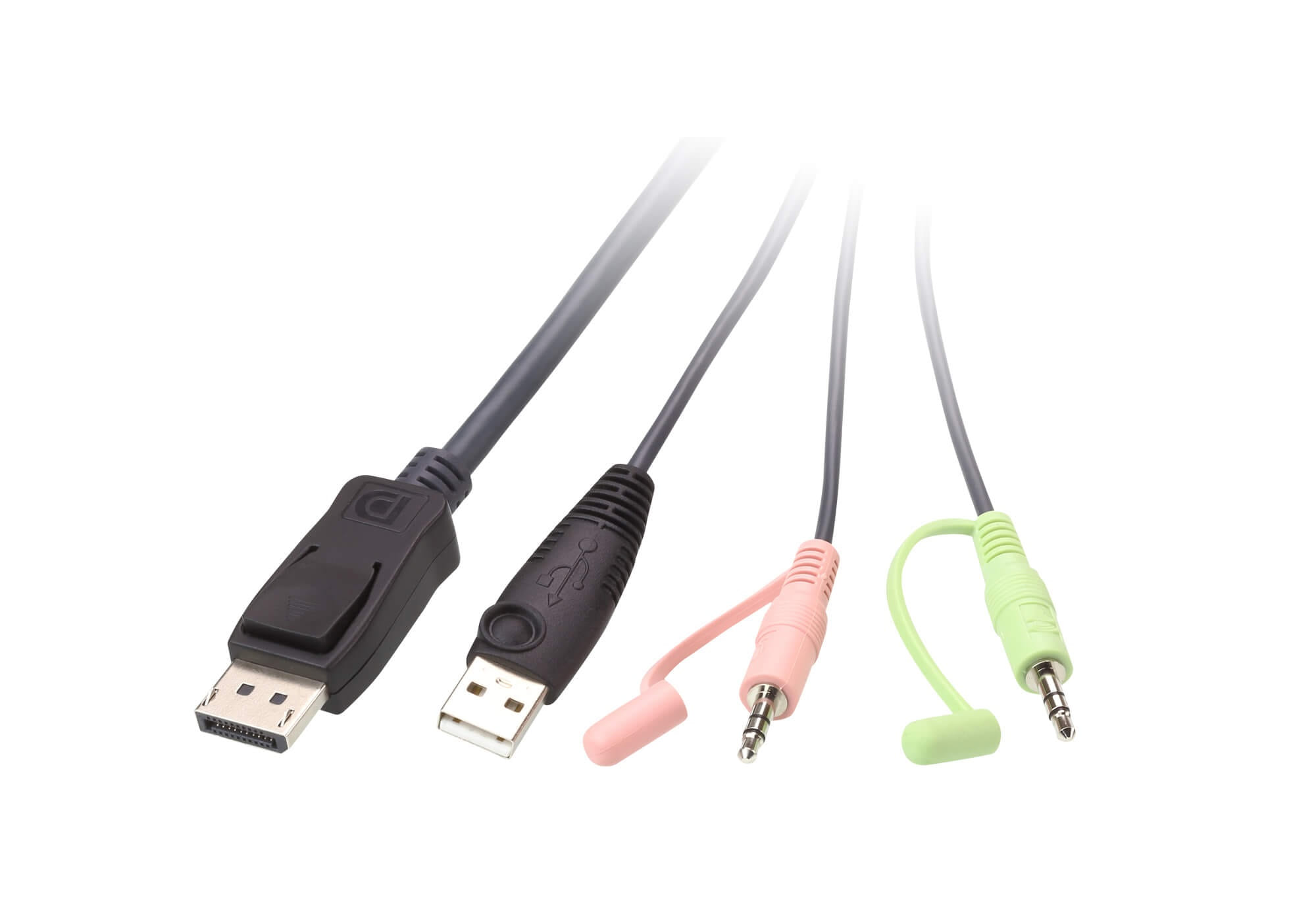

KVM (Computer) Ports	2 x DisplayPort Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Power (Optional)	1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected)	2 (White)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	N/A
Video	4096 x 2160 @ 30Hz
Power Consumption	DC5V:1.38W:28BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.35 kg ( 0.77 lb )
Dimensions (L x W x H)	8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
