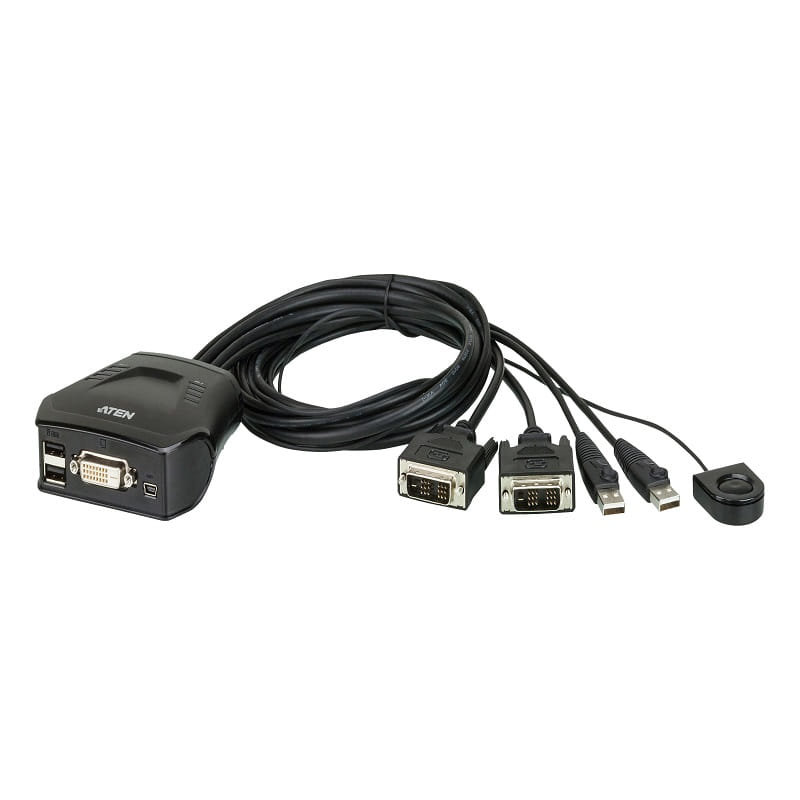

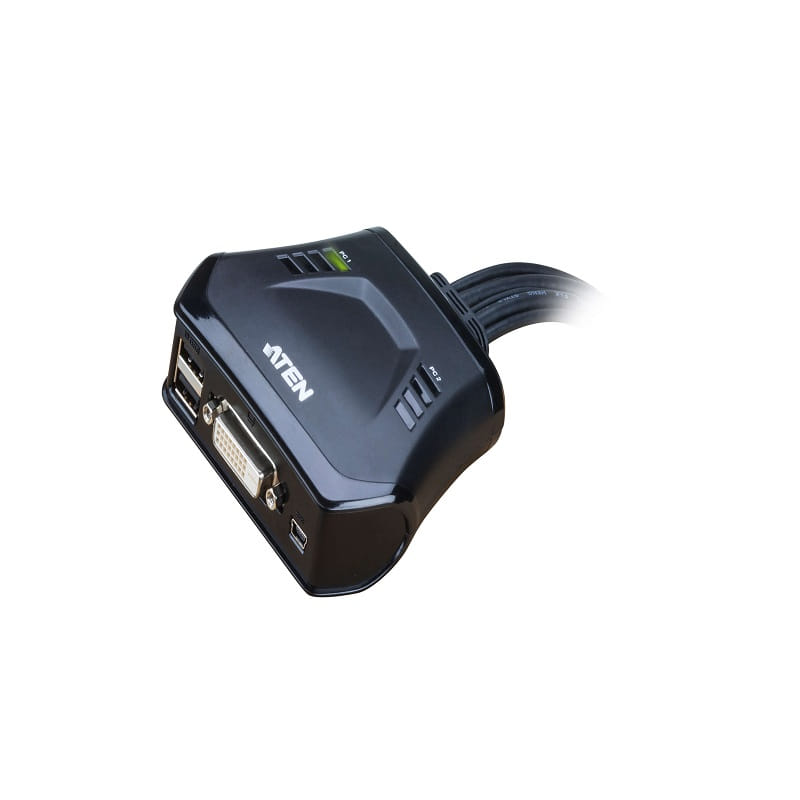

2-Port USB DVI Cable KVM Switch with Remote Port Selector

2-Port USB DVI Cable KVM Switch with Remote Port Selector

Product Code : CS22D

Brand Category : Cable KVM Switches

Description

  • One DVI-D video console controls two DVI-D USB interface computers
  • Computer Selection via Remote Port Selector
  • OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
  • Superior video quality- up to 1920 x 1200@60Hz
  • Supports USB hot-plugging
  • Bus-Powered
  • The console USB ports can be used for USB peripheral sharing1

Note: 1. The CS22D may require an external power supply via a micro USB port.

Add to Query Cart PDF Download

Technical Specification

Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 1 x DVI-D Female (White)
2 x USB Type A Female
1 x USB Mini-B Female
KVM Ports 2 x DVI-D Male (Black)
2 x USB Type A Male
LEDs
Selected 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Video Resolution 1920 x 1200 @ 60 Hz
Power Consumption DC5V:0.93W:9BTU
Environmental
Operating Temperature 0 - 50˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.34 kg ( 0.75 lb )
Dimensions (L x W x H) 9.95 x 9.66 x 3.01 cm
(3.92 x 3.8 x 1.19 in.)
