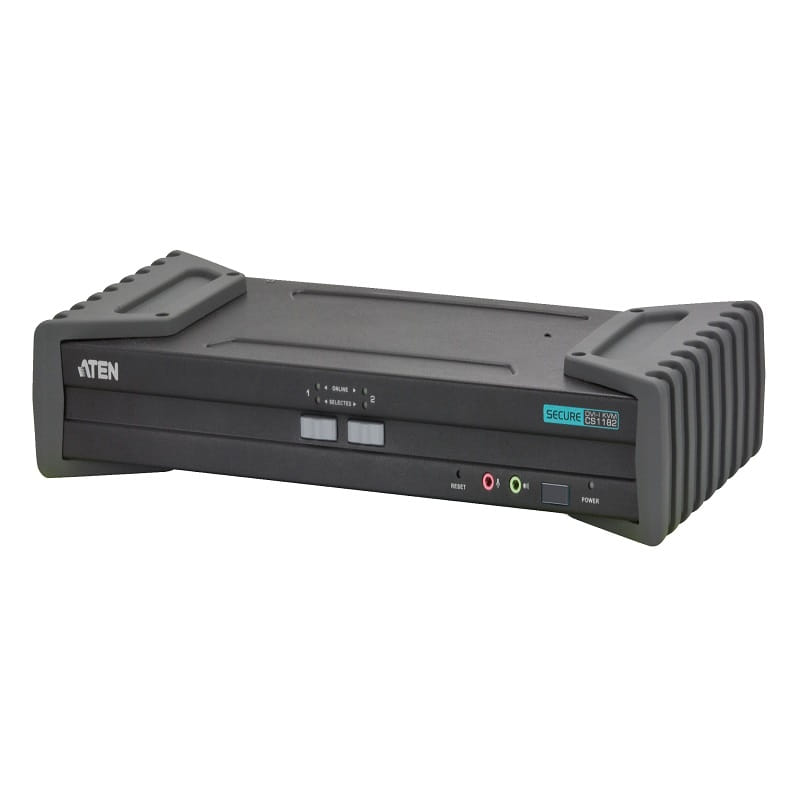

2-Port USB DVI Secure KVM Switch

Product Code : CS1182

Brand Category : Secure KVM Switches

Description

2-port USB DVI Dual-Link Secure KVM Switch
Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
One USB console controls 2 secure computers
NIAP-certified — validated to Common Criteria EAL2+ security requirements
Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching
Isolated channel per port — makes it impossible for data to be transferred between computers
Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
Multiplatform support — Windows, Linux, Mac, and Sun
Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
Rugged metal enclosure
Built-in internal power
Speaker and microphone support

Technical Specification

Computer Connections	2
Port Selection	Pushbutton

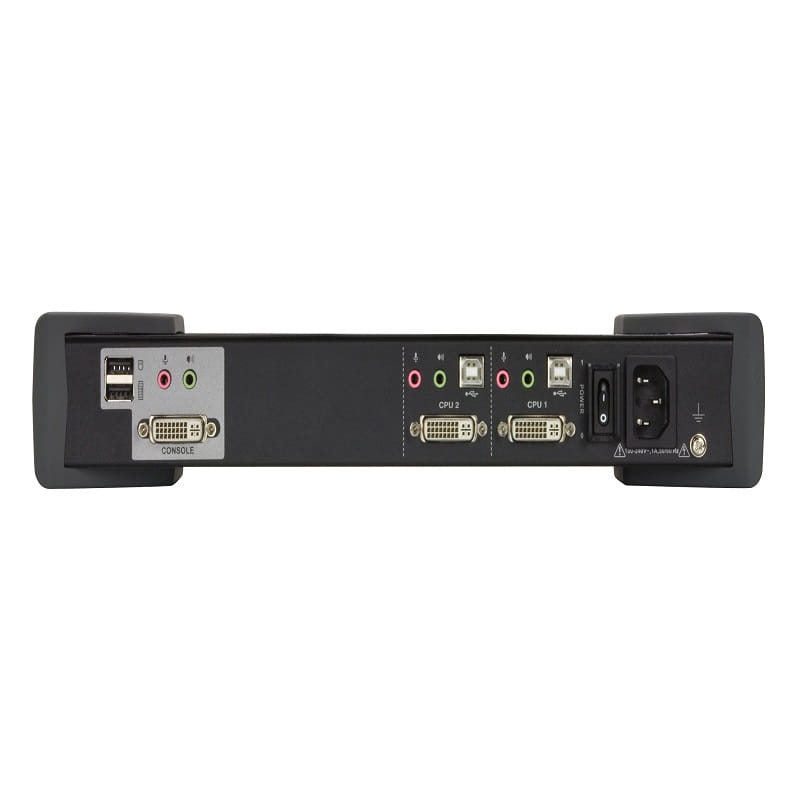

Connectors
Console Ports	2 x USB Type-A Female (Black) 1 x DVI-I Dual Link Female (White) 2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel) 2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel)
KVM Ports	2 x USB Type-B Female (White) 2 x DVI-I Dual Link Female (White) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)
Power	1 x 3-prong AC Socket
Switches
Port Selection	2 x Pushbuttons
Reset	1 x Semi-recessed Pushbutton
Power	1 x Rocker
LEDs
Power	1 (Blue)
Online	2 (Green)
Selected	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	DVI Dual Link: 2560x1600; DVI Single Link: 1920x1200 DVI-A: 2048x1536
Maximum Input Power Rating	100–240V AC; 50/60 Hz; 0.5A
Power Consumption	AC110V:3.4W:31BTU AC220V:3.6W:32BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	2.06 kg ( 4.54 lb )
Dimensions (L x W x H)	34.90 x 16.90 x 6.09 cm (13.74 x 6.65 x 2.4 in.)
