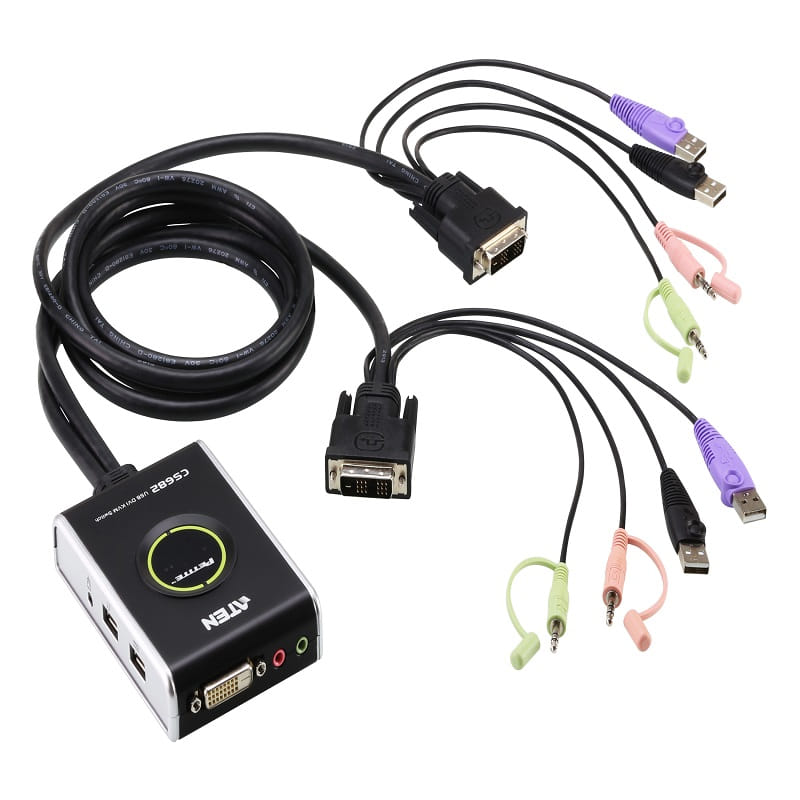

2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector

Product Code : CS682

Brand Category : Cable KVM Switches

Description

One DVI video console controls two USB computers
Fully DVI-Digital specification compliant
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
Computer selection via remote port selector, hotkeys, and USB mouse
Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Compact design, built-in all-in-on cables (2 x 1.2 m)
Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
Superior video quality - up to 1920 x 1200
Compatible with widescreen LCD monitors
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
Supports multimedia keyboards
Supports wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac/Sun keyboard support and emulation**
HDCP Compliant
Bus-Powered
Firmware upgradable

* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** • PC keyboard combinations emulate Mac/Sun keyboards.
• Mac/Sun keyboards work only with their own computers.

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Mouse, Remote Port Selector
Connectors

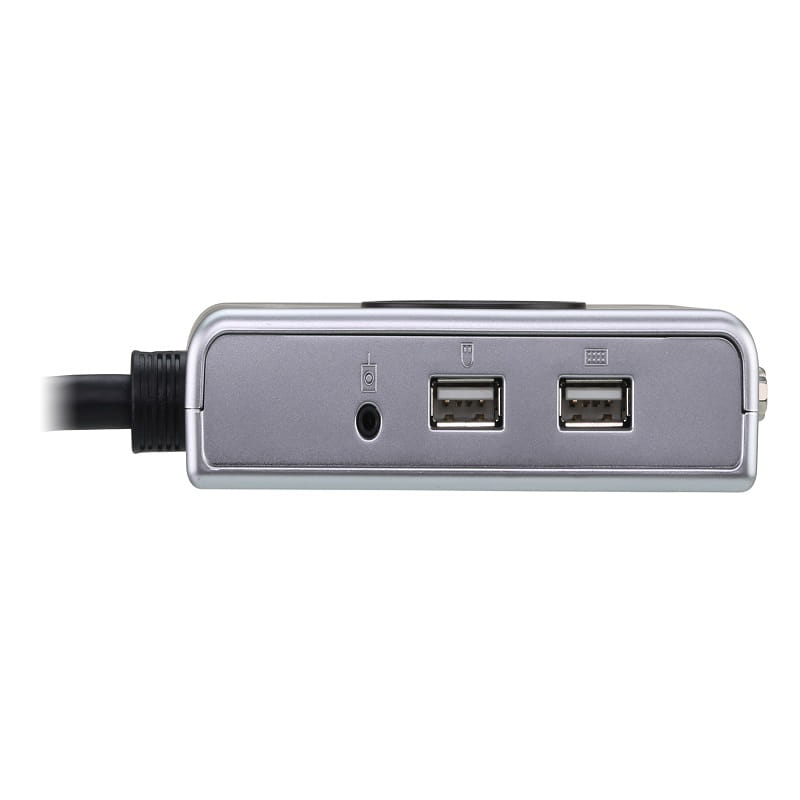

Console Ports	1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x DVI-D Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
KVM	2 (Green)
Remote Port Selector	2 (Green)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60Hz
Scan Interval	3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption	DC5V:3.23W:28BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.49 kg ( 1.08 lb )
Dimensions (L x W x H)	11.15 x 7.80 x 2.40 cm (4.39 x 3.07 x 0.94 in.)
