2-Port USB DVI/Audio KVMP™ Switch

Product Code : CS1762A

Brand Category : Desktop KVM Switches

Description

One USB console controls two DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Computer selection via front panel pushbuttons, hotkeys, and mouse
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse
Connectors

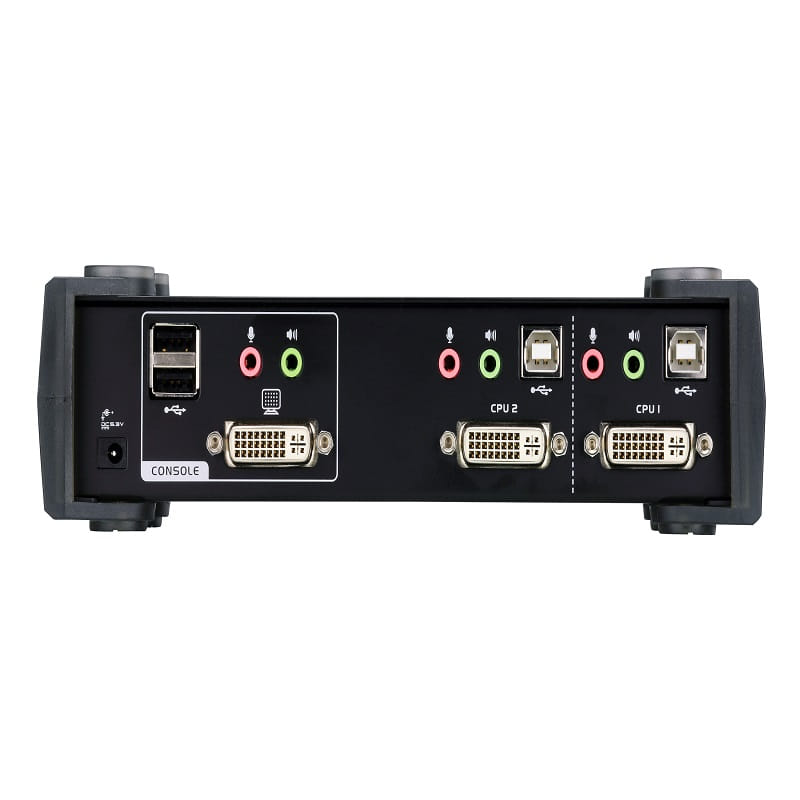

Console Ports	2 x USB Type A Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (rear panel)
Switches

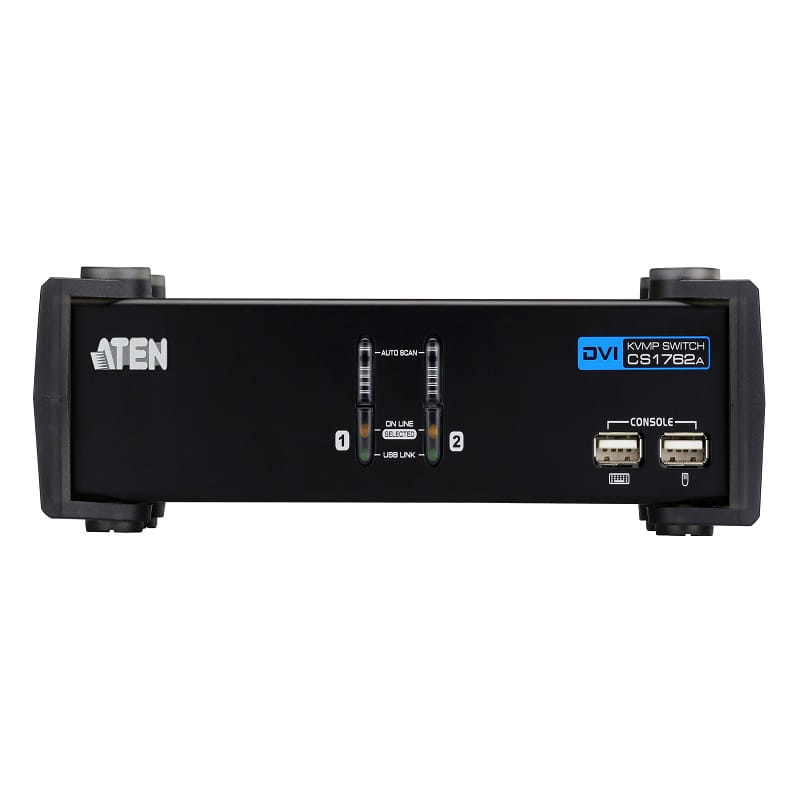

Selected	2 x Pushbutton
LEDs
USB Link	2 (Green)
On Line /Selected	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 sec.)
Power Consumption	DC5.3V:3.78W:43BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.73 kg ( 1.61 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
