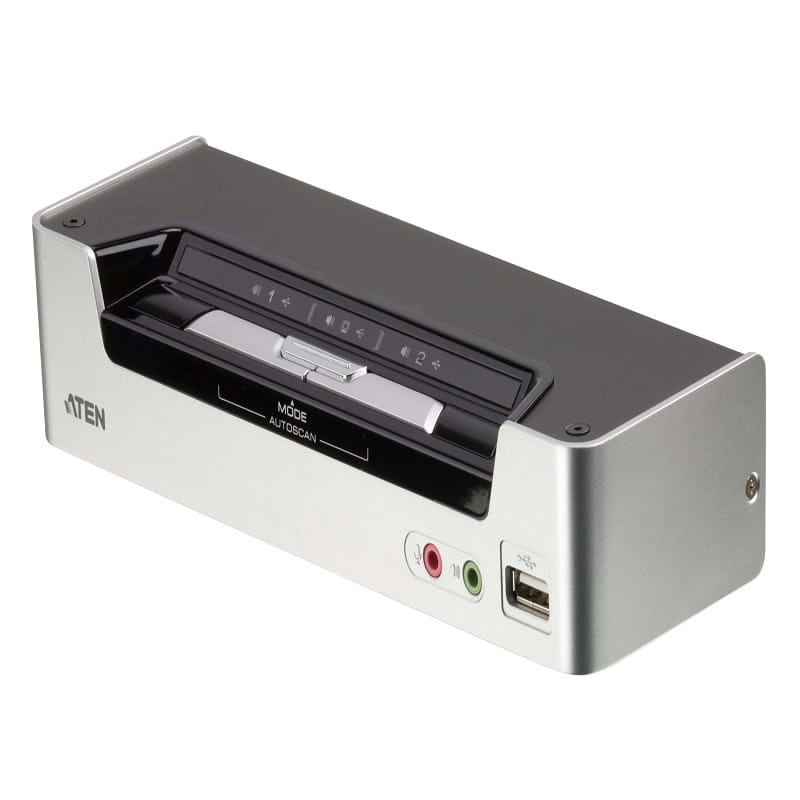

2-Port USB HDMI/Audio KVMP™ Switch

2-Port USB HDMI/Audio KVMP™ Switch

Product Code : CS1792

Brand Category : Desktop KVM Switches


Description


"

  • 2-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls two HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable

    * 1. PC keyboard combinations emulate Mac Keyboards
       2. Mac keyboards only work with their own computers

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 2
Port Selection Hotkey, Pushbutton

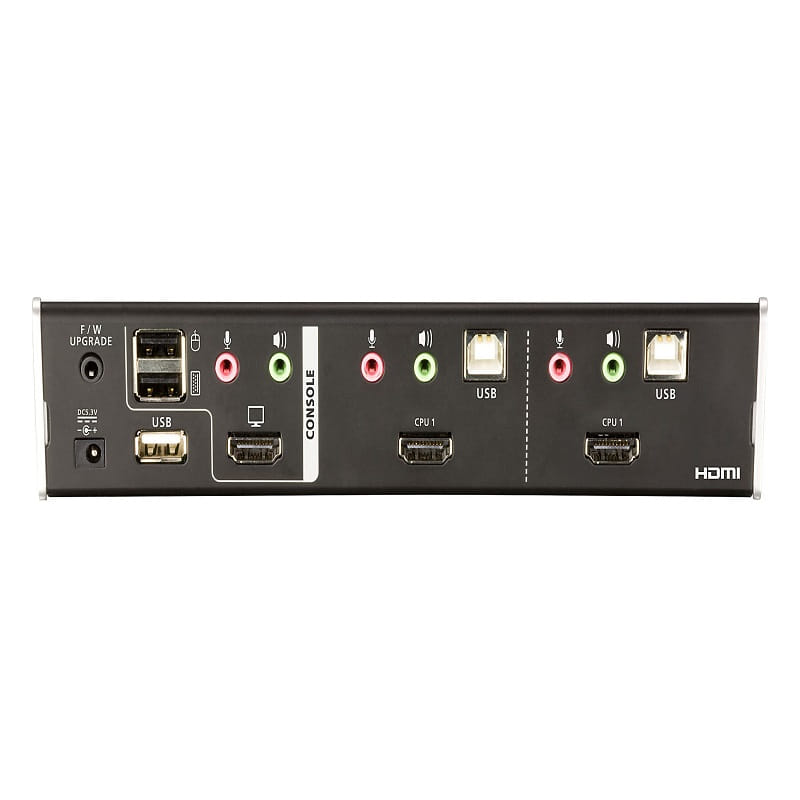

Connectors
Console Ports 2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports 2 x USB Type B Female
2 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green)
2 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 3.5 mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 3 x Pushbutton
LEDs
Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval 1-99 seconds (default: 5 sec.)
Power Consumption DC5.3V:2.7W:28BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.42 kg ( 0.93 lb )
Dimensions (L x W x H) 20.63 x 7.24 x 4.40 cm
(8.12 x 2.85 x 1.73 in.)
