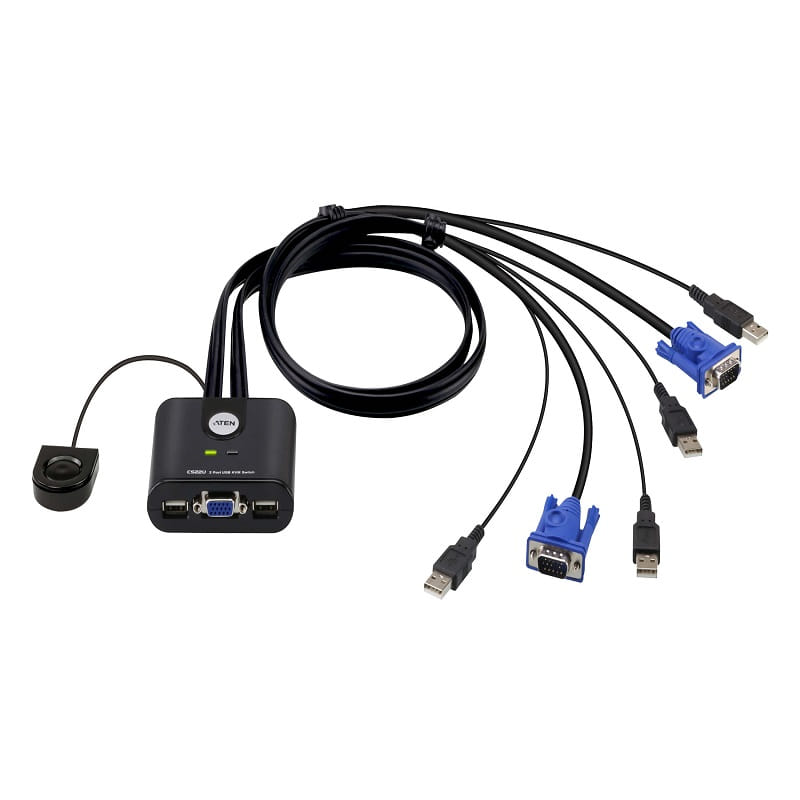

2-Port USB VGA Cable KVM Switch with Remote Port Selector

2-Port USB VGA Cable KVM Switch with Remote Port Selector

Product Code : CS22U

Brand Category : Cable KVM Switches


Description


  • One USB console controls two USB computers
  • Supports multifunction mice
  • Multiplatform support - Windows, Mac, Linux and Sun
  • The console USB ports can be used for USB peripheral sharing
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Bus-Powered

Add to Query Cart PDF Download


Technical Specification


Computer Connections 2
Port Selection Remote Port Selector
Connectors

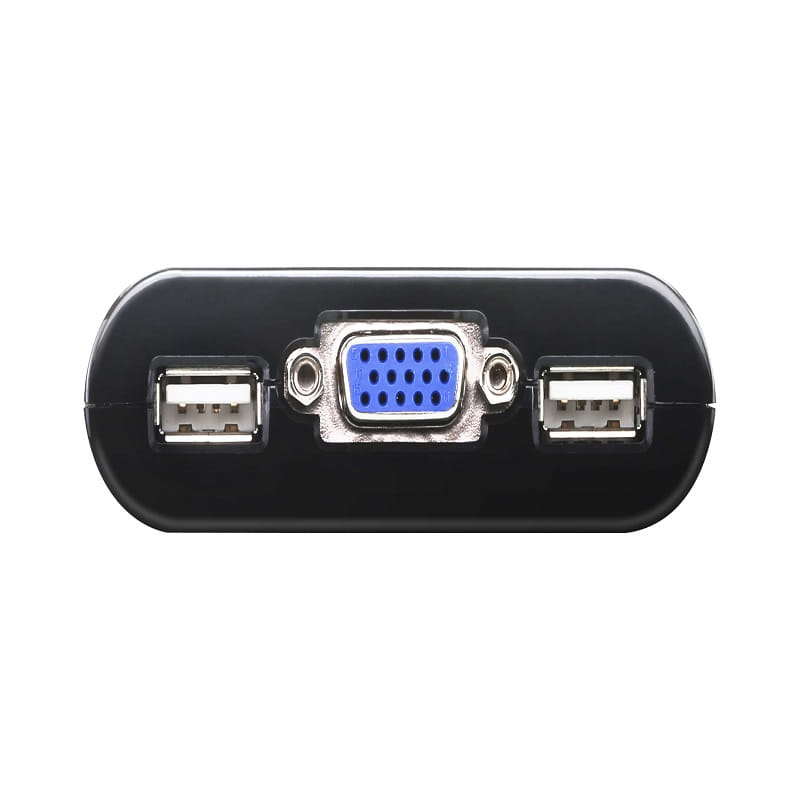

Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
KVM Ports 2 x HDB-15 Male (Blue)
4 x USB Type A Male (Black)
LEDs
Selected 2
Cable Length
Computer 2 x 0.9 m
Remote Port Selector 1.8 m
Video 2048 x 1536, DDC2B
Power Consumption DC5V:0.14W:13BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 8.24 x 7.01 x 2.46 cm
(3.24 x 2.76 x 0.97 in.)
