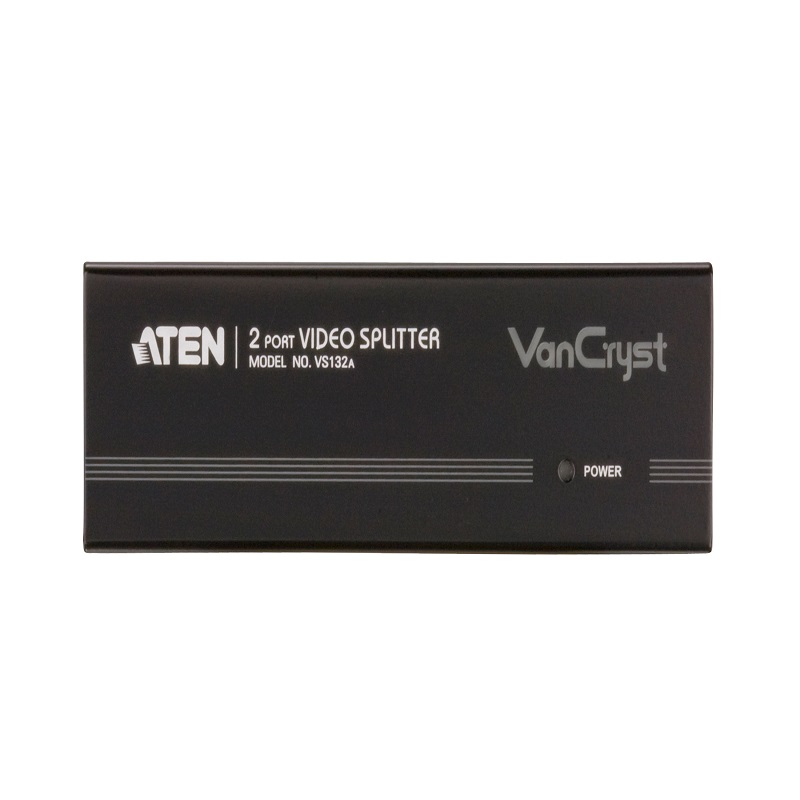

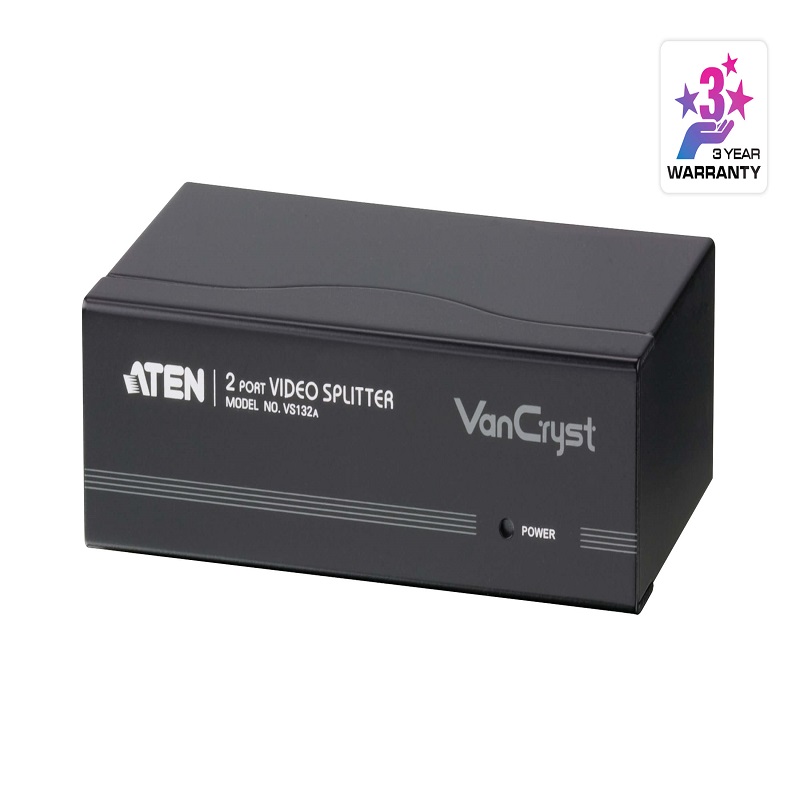

2-Port VGA Splitter (450MHz)

2-Port VGA Splitter (450MHz)

Product Code : VS132A

Brand Category : Video Splitters

Description

  • One video input to 2 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels - provides up to 8 video signals
  • Long-distance transmission - up to 30m *
  • Superior video quality - up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintains excellent fidelity
  • All-metal casing

* Video content sent over very long distances using a VGA cable might result in slight degradation of the video signal and quality.

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces 1 x HDB-15 Male (Blue)
Impedance 75 Ω
Max. Distance 1.8 m
Video Output
Interfaces 2 x HDB-15 Female (Blue)
Impedance 75 Ω
Video
Max. Bandwidth 450 MHz
Max. Resolution Up to 2048 x 1536
Max. Distance Up to 30 m
Connectors
Power 1 x DC Jack
Power Consumption DC5V:0.62W:3BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.42 kg ( 0.93 lb )
Dimensions (L x W x H) 13.00 x 7.51 x 4.40 cm
(5.12 x 2.96 x 1.73 in.)
Carton Lot 20 pcs
