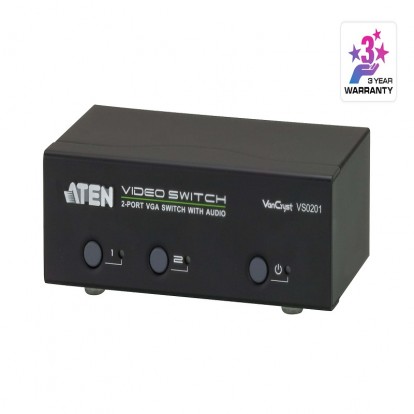

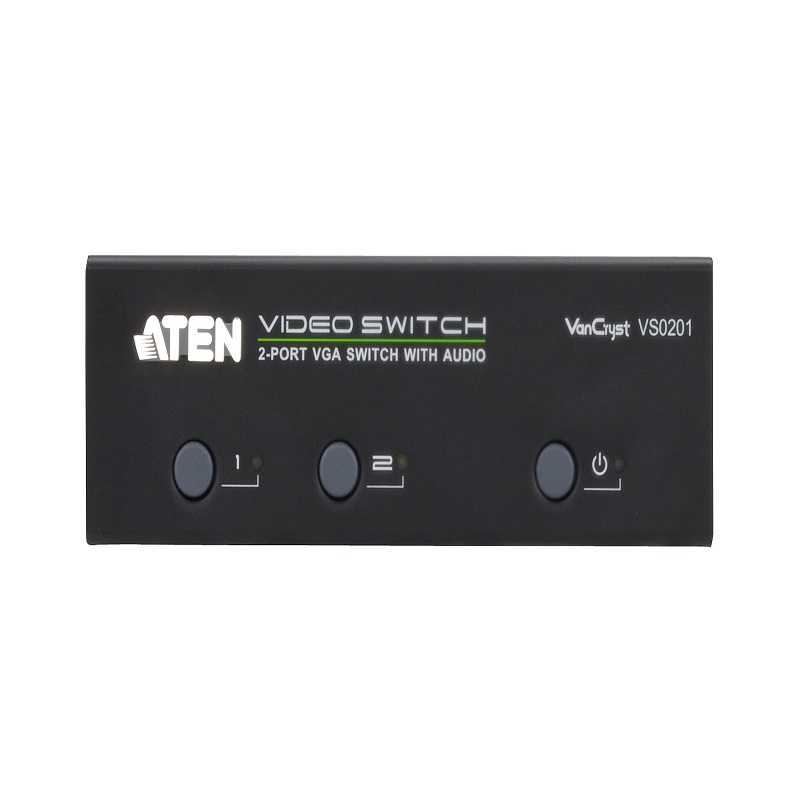

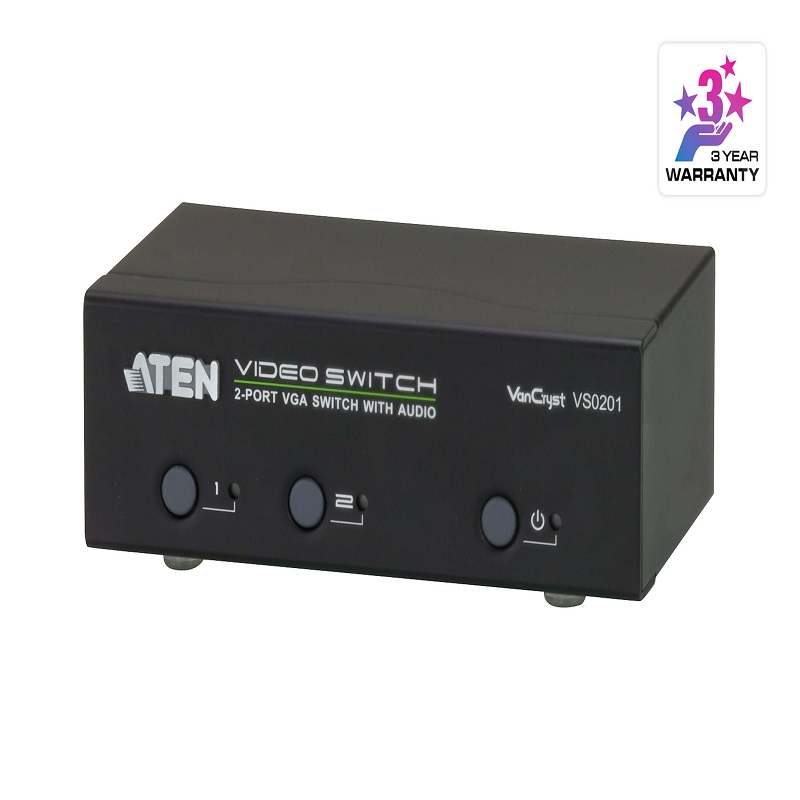

2-Port VGA/Audio Switch

Product Code : VS0201

Brand Category : Video Switches

Description

Displays the video output of two computers on a single monitor or projector
Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
Superior video quality – up to 1920 x 1440
Long-distance transmission – up to 30 m *
Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Built-in bi-directional RS-232 serial port for high-end system control **
RS-232 Control:
• Power On Detection – if one VGA source is powered off, the VS0201 will automatically switch to the next powered-on
source
• Auto Switching – sets the priority for auto switching to a connected port
• Pushbutton Lock – locks use of the front panel pushbuttons
Supports stereo audio
DDC compatible
Supports up to 300MHz bandwidth for optimal video quality
LED indication of power status and source device
All-metal casing provides durability and protection
Plug-and-play – no software installation required

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

** Note: The VS0201 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	2 x HDB-15 Male (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video Output
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
Max. Distance	30 m
Video
Max. Bandwidth	300 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Audio
Input	2 x Mini Stereo Jack Female (Green)
Output	1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:0.55W:3BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.45 kg ( 0.99 lb )
Dimensions (L x W x H)	13.00 x 7.61 x 4.40 cm (5.12 x 3 x 1.73 in.)
Carton Lot	5 pcs
