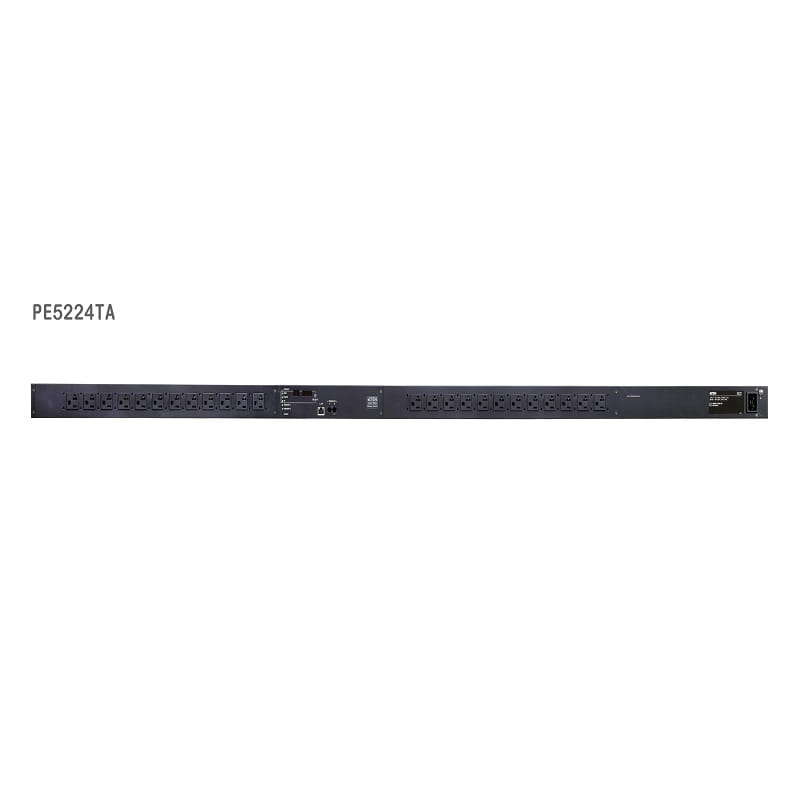

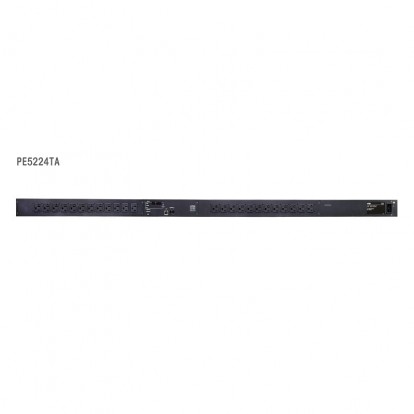

20A 24-Outlet eco PDU (Thin Form Factor eco PDU)

Product Code : PE5224TA

Brand Category : Rack PDU

Description

Thin form factor design with 56 mm width
Built-in 10/100 Mbps Ethernet port
Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
2-level account and password security
IP/MAC filters, SSL 128-bit data encryption and RADIUS for remote authentication
Supports eco DC Energy Management Software
Browser access via IE, Firefox, Chrome, Safari and more
Bank level power metering and monitoring
Environment monitoring via external sensors for rack temperature and humidity readings with threshold alerts
Real-time aggregate current, voltage, power, and aggregate power dissipation displayed in a browser-based UI
Space saving 0U rack mount design with rear mounting
Lok-U-Plug and EZ-Lok Holders – easily secures power cables to the PDU

eco DC Energy Management Software*
Automatic discovery of all ATEN PDUs within the same intranet
Remote real-time power measurement and monitoring of PDUs
Real-time environment monitoring via sensors
Plotting and monitoring of all ATEN PDU devices
Exceed threshold alerts through real-time monitoring, SMTP and System log
Power analysis reports
* eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

Technical Specification

Electrical
Nominal Input Voltage	100 – 120 VAC
Maximum Input Current	20A(Max)
Input Frequency	50-60 Hz
Input Connection	NEMA 5-20P
Input Power	2400 VA(Max)
Outlet Type	Total: 24 x NEMA 5-20R Bank1-1: Outlet 1 – 12; 12 x NEMA 5-20R Bank1-2: Outlet 13 – 24; 12 x NEMA 5-20R
Nominal Output Voltage	100 – 120 VAC
Maximum Output Current (Outlet)	NEMA 5-20R: 20A(Max)
Maximum Output Current (Bank)	20A(Max)
Maximum Output Current (Total)	20A(Max)
Metering	Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching	None
Environment Sensor Ports	2
Metering Accuracy	Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)	177.50 x 5.60 x 4.80 cm (69.88 x 2.2 x 1.89 in.)
Weight	3.93 kg ( 8.66 lb )
Power Cord Length	3 m
Environmental
Temperature (Operating / Storage)	0–50°C / -20–60°C
Humidity (Operating & Storage)	0–80% RH, Non-Condensing
Compliance
EMC Verification	FCC, J55022, Others by Request
Safety Verification	PSE, Others by Request
