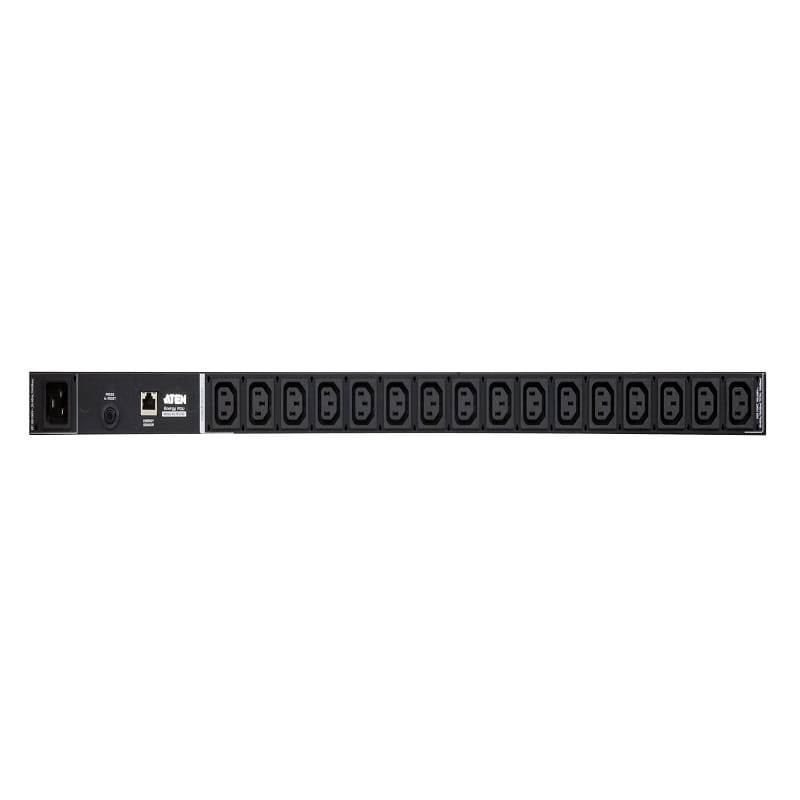

Product Code : PE1216
Brand Category : Rack PDU
| Function | PE1216A | PE1216B | PE1216G |
| Electrical | |||
| Nominal Input Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Input Current | 20A(Max) | 20A(Max) | 16A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-20P | NEMA 6-20P | IEC 60320 C20 |
| Input Power | 2400 VA(Max) | 4160 VA(Max) | 3680 VA(Max) |
| Outlet Type | Total: 16 x NEMA 5-15R | Total: 16 x IEC320 C13 | Total: 16 x IEC320 C13 |
| Nominal Output Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Output Current (Outlet) | 15A(Max) | 15A(Max) | 10A(Max) |
| Maximum Output Current (Bank) | 20A(Max) | 20A(Max) | 16A(Max) |
| Maximum Output Current (Total) | 20A(Max) | 20A(Max) | 16A(Max) |
| Breakers | 1 x 20A Non-Fuse Breaker | 1 x 20A Non-Fuse Breaker | 1 x 16A Non-Fuse Breaker |
| Metering | Bank Level Current Monitoring (Via EC1000 Energy Box) | Bank Level Current Monitoring (Via EC1000 Energy Box) | Bank Level Current Monitoring (Via EC1000 Energy Box) |
| Outlet Switching | None | None | None |
| Environment Sensor Ports | 0 | 0 | 0 |
| Metering Accuracy | Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% | Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% | Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Physical Properties | |||
| Dimensions (L x W x H) | 73.00 x 4.40 x 4.40 cm (28.74 x 1.73 x 1.73 in.) | 73.00 x 4.40 x 4.40 cm (28.74 x 1.73 x 1.73 in.) | 73.00 x 4.40 x 4.40 cm (28.74 x 1.73 x 1.73 in.) |
| Weight | 1.32 kg ( 2.91 lb ) | 1.32 kg ( 2.91 lb ) | 1.32 kg ( 2.91 lb ) |
| Power Cord Length | 3 m | 3 m | 3 m |
| Environmental | |||
| Temperature (Operating / Storage) | 0–50°C / -20–60°C | 0–50°C / -20–60°C | 0–50°C / -20–60°C |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing |
| Compliance | |||
| EMC Verification | FCC, Others by Request | FCC, Others by Request | CE, C-Tick, Others by Request |
| Safety Verification | cTUVus, PSE, Others by Request | cTUVus, PSE, Others by Request | TUV-CB, GOST, Others by Request |
