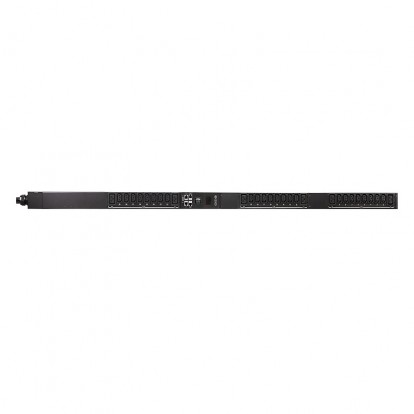

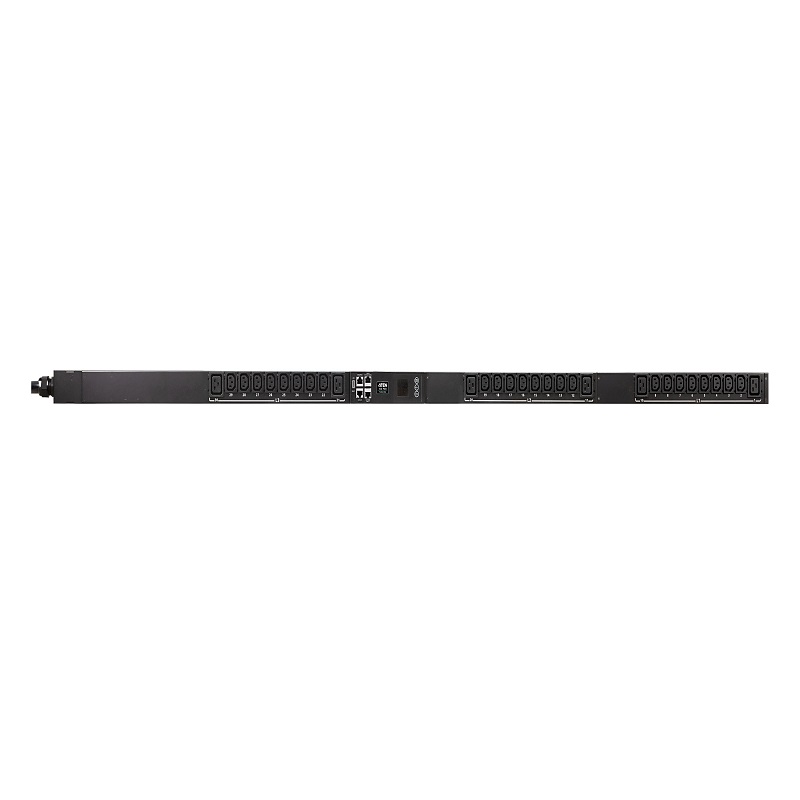

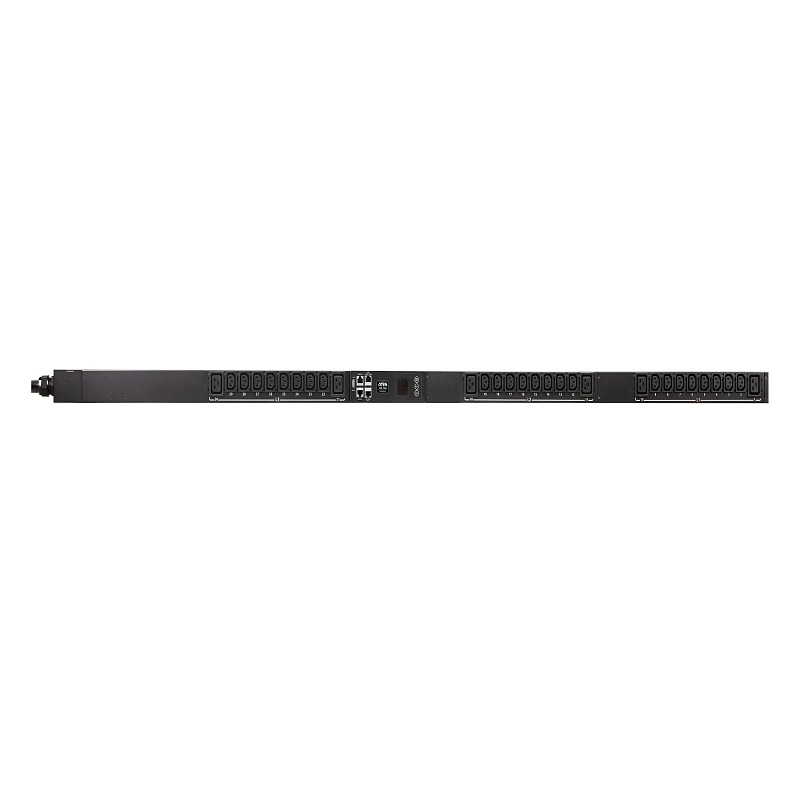

20A/16A 30-Outlet 3-Phase Switched eco PDU

20A/16A 30-Outlet 3-Phase Switched eco PDU

Product Code : PG96230

Brand Category : Rack PDU


Description


  • Each PG PDU comes with 6 x IEC 60320 C19 and 24 x IEC 60320 C13 outlets in a 0U rack enclosure
  • ARM Cortex-A8 processor for flexible control methods via LAN / COM / USB / environment sensor ports and enhanced monitoring via LCD console
  • Advantageous hardware / network specification
    – 1 Gbps and 100 Mbps Ethernet ports
    – Auto Ping & Reboot
    – Remote Management Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus (over TCP/IP), Wi-Fi, 802.11 a/b/g/n network protocols, IPv6, and SMS
    – Alerts / Alarms: receives alarms via SNMP, SMTP, SMS1, and syslog
    – Scripting: JSON-RPC (Remote Procedure Call) protocol and Python scripting to control specified PDU unit (e.g. Switch On / Off) 1
    – Security: 2-level account / password login access, and IP / MAC filter, TLS 1.2, SMTP / SMTPS protocols
    – Authentication: LDAP, RADIUS, TACACS+
  • Expandable installation
    – Allows for connecting up to 64 PDU units with cascading
    – Allows for PON port connection to an ATEN's KN series KVM over IP switch for centralized management of up to 16 cascaded PDUs2
  • Energy-efficient relays allow operators to control large amounts of current flow for lower energy consumption
  • Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
  • Environment sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks3
  • Real-time LCD alert sends warnings to alert users of unusual power state
  • An adjustable power cord is built in to the unit capable of 90-degree rotation to allow flexible in-rack installation, resulting in better cable organization
  • Rotatable LCD Screen – capable of 180-degree rotation, delivering flexible in-rack installation
  • Secure locking enhancement prevents power cords from becoming unplugged due to vibration or human error
  • Supports ATEN’s eco DC (Energy & DCIM Management Web GUI) for monitoring power distribution, energy, and environmental data from PDUs and connected devices

    Note:
    1. To be included in a future firmware release.
    2. To be included in a future firmware release.
    3. Please contact the local sales representative for further information on the environment sensor.

Add to Query Cart PDF Download


Technical Specification


FunctionPG96230BPG96230B2PG96230G
Electrical
Nominal Input Voltage208V 3PH (Delta)208V 3PH (Delta)400/230V 3PH (Star)
Maximum Input Current20A Max
16A(UL de-rated)
20A Max
16A(UL de-rated)
16A Max
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionNEMA L21-20PNEMA L15-20PG Plug: IEC 60309 16/20A Red 3P+N+PE
U Plug: Clipsal 20A 56PA52-EO Angled Plug
Input Power7205VA(Max),
5764VA(UL de-rated)
7205VA(Max),
5764VA(UL de-rated)
11084VA(Max)
Outlet Type(6) IEC 320 C19, (24) IEC 320 C13(6) IEC 320 C19, (24) IEC 320 C13(6) IEC 320 C19, (24) IEC 320 C13
Nominal Output Voltage208 VAC208 VAC230 VAC
Maximum Output Current (Outlet)C13: 15A(Max),12A(UL de-rated)
C19: 20A(Max),16A(UL de-rated)
C13: 15A(Max),12A(UL de-rated)
C19: 20A(Max),16A(UL de-rated)
C13:10A(Max),
C19:16A(Max),
BreakersNANANA
MeteringBank level Current, Voltage , PF and KWh MonitoringBank level Current, Voltage , PF and KWh MonitoringBank level Current, Voltage , PF and KWh Monitoring
Outlet SwitchingYesYesYes
Environment Sensor PortsYesYesYes
Metering Accuracy1%*1%*1%*
Physical Properties
Dimensions (L x W x H)179.00 x 5.60 x 6.80 cm
(70.47 x 2.2 x 2.68 in.)
179.00 x 5.60 x 6.80 cm
(70.47 x 2.2 x 2.68 in.)
179.00 x 5.60 x 6.80 cm
(70.47 x 2.2 x 2.68 in.)
Weight7.36 kg ( 16.21 lb )7.36 kg ( 16.21 lb )7.36 kg ( 16.21 lb )
Power Cord Length3m3m3m
Environmental
Temperature (Operating / Storage)0 – 60℃ / -20 – 60℃0 – 60℃ / -20 – 60℃0 – 60℃ / -20 – 60℃
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing
Compliance
EMC VerificationFCCFCCCE,EMC
Safety VerificationUL, PSEUL, PSECE, UL, PSE
Warranty3 years3 years3 years
