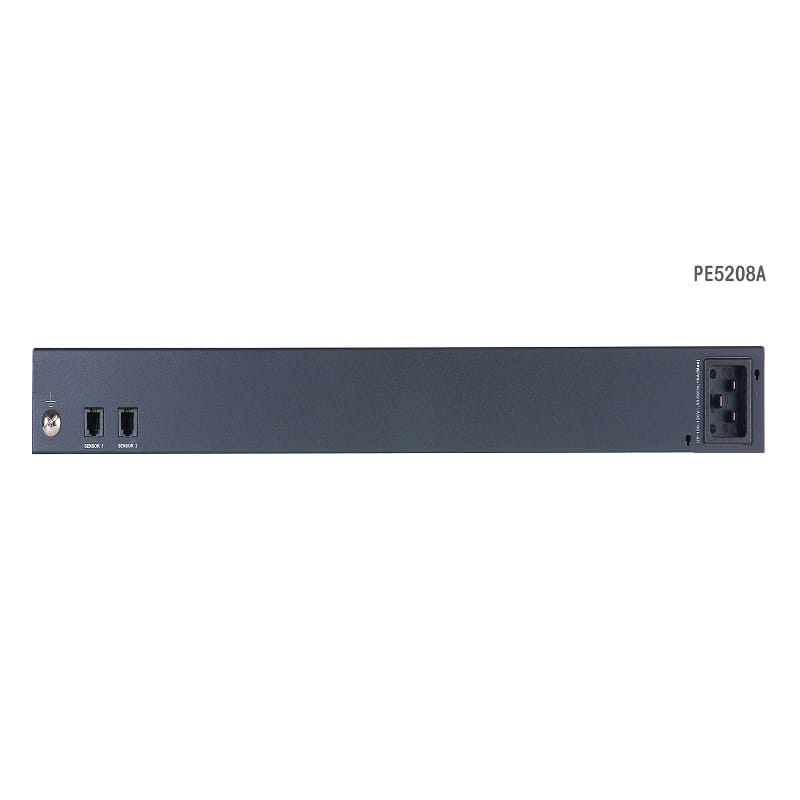

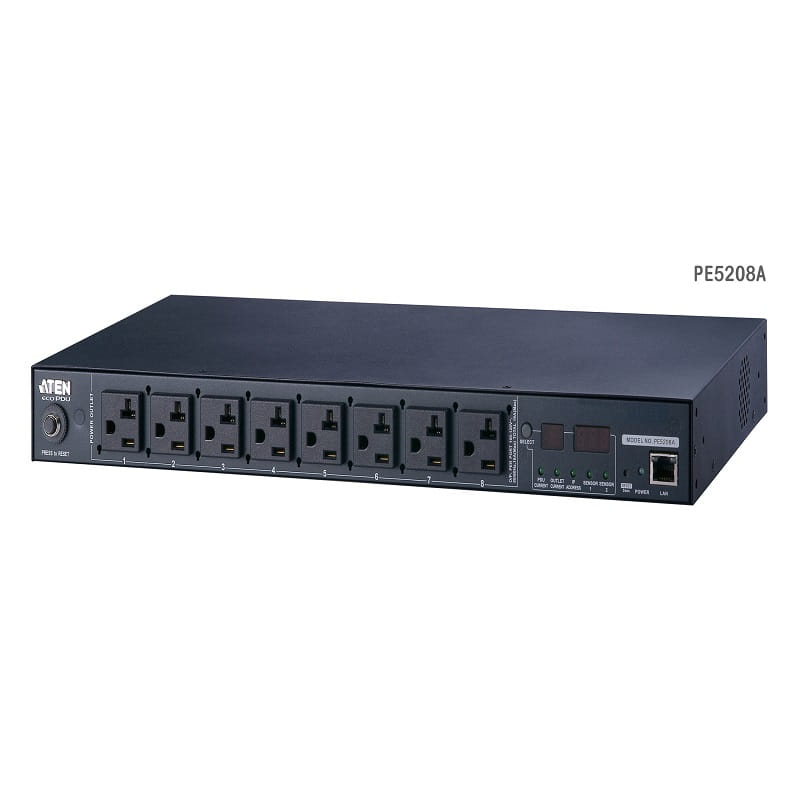

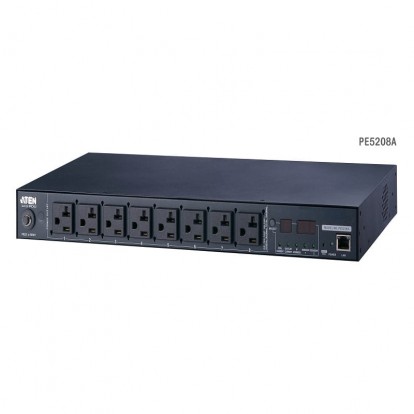

20A/16A 8-Outlet 1U Metered eco PDU

20A/16A 8-Outlet 1U Metered eco PDU

Product Code : PE5208

Brand Category : Rack PDU

Description

  • Connections
  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
  • Support : eco DC, Browser (IE, Firefox, Chrome, Safari)
  • Metering
  • Bank level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
  • Outlet Switch Control
  • Always On

Add to Query Cart PDF Download

Technical Specification

FunctionPE5208APE5208BPE5208G
Electrical
Nominal Input Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Input Current20A Max; 16A(UL de-rated)20A Max; 16A(UL de-rated)16A Max
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionNEMA 5-20PNEMA 6-20PIEC 60320 C20
Input Power2400 VA(Max); 1920 VA(UL de-rated)4160 VA(Max); 3328 VA(UL de-rated)3680 VA(Max)
Outlet TypeTotal : 8 x NEMA 5-20RTotal : 7 x IEC320 C13 + 1 x IEC320 C19Total : 7 x IEC320 C13 + 1 x IEC320 C19
Nominal Output Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Output Current (Outlet)NEMA 5-20R: 20A(Max); 16A(UL de-rated)C13: 15A(Max); 12A(UL de-rated)
C19: 20A(Max); 16A(UL de-rated)		C13: 10A(Max)
C19: 16A(Max)
Maximum Output Current (Bank)20A(Max); 16A(UL de-rated)20A(Max); 16A(UL de-rated)16A(Max)
Maximum Output Current (Total)20A(Max); 16A(UL de-rated)20A(Max); 16A(UL de-rated)16A(Max)
Breakers1 x 20A Non-Fuse Breaker1 x 20A Non-Fuse Breaker1 x 16A Non-Fuse Breaker
MeteringBank level Current, Voltage, VA , PF and KWh MonitoringBank level Current, Voltage, VA , PF and KWh MonitoringBank level Current, Voltage, VA , PF and KWh Monitoring
Outlet SwitchingNoneNoneNone
Environment Sensor Ports222
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)		43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)		43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)
Weight2.71 kg ( 5.97 lb )2.71 kg ( 5.97 lb )2.71 kg ( 5.97 lb )
Power Cord Length3 m3 m3 m
Environmental
Temperature (Operating / Storage)0 – 50°C / -20 – 60°C0 – 50°C / -20 – 60°C0 – 50°C / -20 – 60°C
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing
Compliance
EMC VerificationFCC, Others by RequestFCC, Others by RequestCE, Others by Request
Safety VerificationTUV-CB, cTUVus, UL, Others by RequestTUV-CB, cTUVus, UL, Others by RequestTUV-CB, CE-LVD, Others by Request
