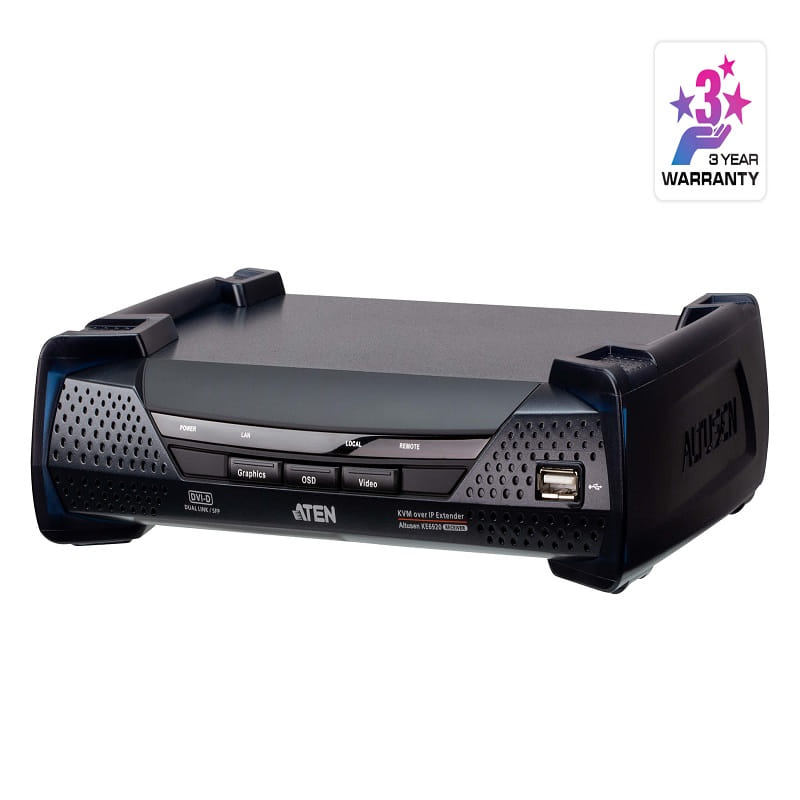

2K DVI-D Dual-Link KVM over IP Receiver with Dual SFP

"

• Exclusive Features for ATC Industry*
  • Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
  • Adaptive Fast Switching – switches automatically and immediately between different Tx video resolutions on a Rx display (within 0.3 seconds)
  • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
  • “Push”and“Pull”– shares content instantly to/from a single Rx or video wall by just one click
  • Authentication Lock – automatically logs in when the power of the system is resumed after power off
  • Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
  • Disconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection status
  • Supports power/network failover –KE6920 has 2 DC jacks for power redundancy while 1 RJ45 & 2 SFP fiber ports for network failover to ensure constant availability for mission-critical applications

<!-- Features List-2 -->

• Advanced Features*
  • ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
  • Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
  • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
  • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
  • Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
  • Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
  • Configurable user and group permissions for access and control of KE devices
  • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
  • Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**

    *These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)
    **The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

<!-- Features List-3-->

• Hardware
  • Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
  • Supports stereo speakers and stereo microphone
  • High speed USB Storage Transmission support
  • Auto-MDIX – automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Fanless design for silent operations that are energy efficient
  • Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failover
  • Supports 1Gbps SFP fiber module expansions*** up to 10 km
  • Power Redundancy – KE6920 has 2 DC jacks for power redundancy
  • Rack Mountable – Mounting options:
    •2X-021G Dual Rack Mount Kit
    •2X-031G Single Rack Mount Kit
  • Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions
    ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.

<!-- Features List-4 -->

• Management
  • Centralized KE Series management software – KE Matrix Management Software (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
  • Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
  • Local console for emergency operation
  • OSD (On Screen Display) on the receiver configures both Tx / Rx devices
  • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
  • On-screen Preview – allows users to view the video of up to 36 displays on one screen
  • Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
  • CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
  • RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
  • Compatible with all KE devices

<!-- Features List-5 -->

• Security
  • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
  • Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
  • Supports industry standard Transport Layer Security (TLS) protocol

<!-- Features List-6 -->

• Virtual Media
  • USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Supports Smart Card/CAC Reader

"
