3-Port HDMI Switch

Product Code : VS381

Brand Category : Video Switches

Description

Allows up to three HDMI A/V sources to be connected to one HDMI display

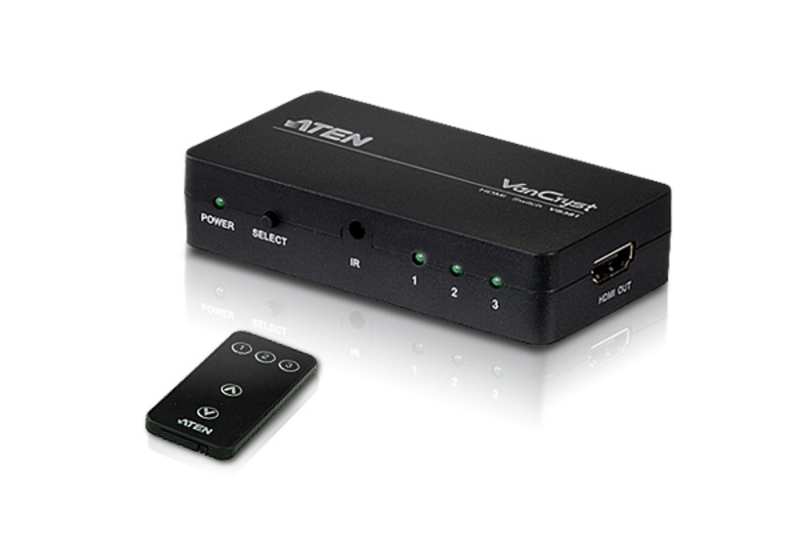

Toggle between A/V sources using remote control or front panel pushbuttons
Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200)
Supports Dolby True HD and DTS HD Master Audio
Plug-and-play – no software installation required
DDC Compatible
HDMI (3D, Deep Color)
HDCP 1.4 compatible

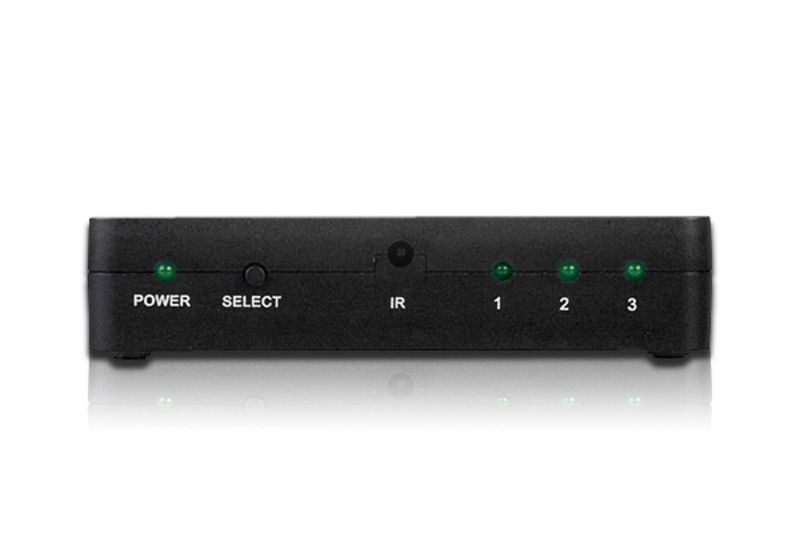

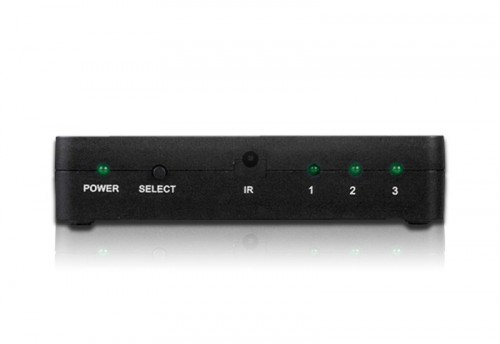

Front-Panel LED for port and power status
Easy and affordable way to add three HDMI inputs to your home theater system

Technical Specification

Video Input
Interfaces	3 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m
Control
IR	1 x Mini Stereo Jack Female (Black)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.69W:3BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.07 kg ( 0.15 lb )
Dimensions (L x W x H)	9.60 x 5.12 x 2.24 cm (3.78 x 2.02 x 0.88 in.)
Carton Lot	40 pcs
