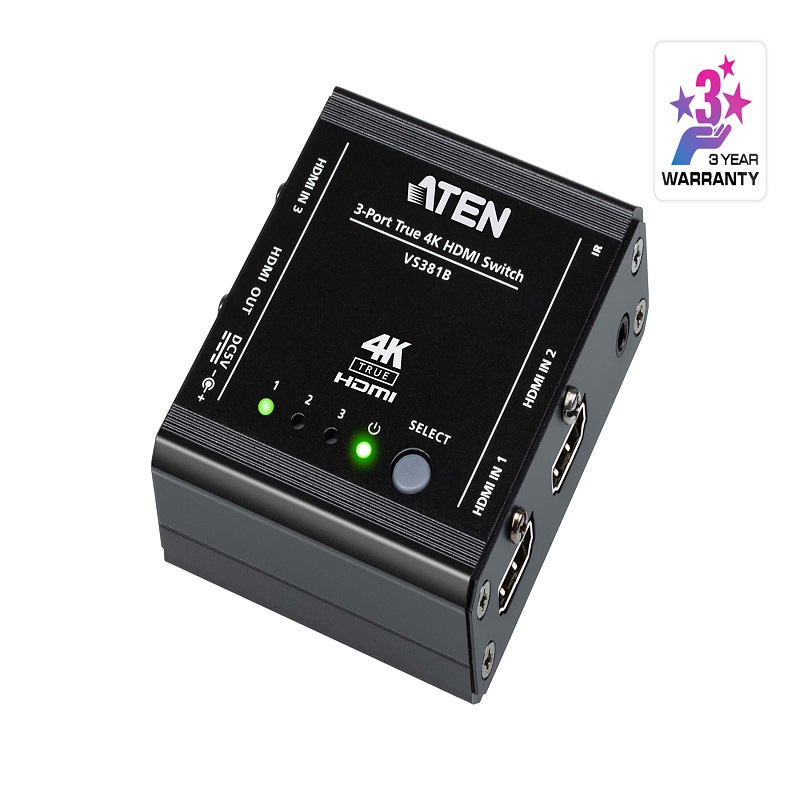

3-Port True 4K HDMI Switch

Product Code : VS381B

Brand Category : Video Switches

Description

Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)
HDCP 2.2 compliant
Auto switching mode for auto port selection
Switching between HDMI input sources via front panel pushbuttons and IR remote control
Supports IR extension
Supports 7.1 channel audio output
Clear LED indication of device status
Plug-and-play – no software installation required

Technical Specification

LEDs
Input	3 x HDMI-In (Green)
Power	1 x Power LED (Green)
Pushbuttons
Select	1 x push button (input selection)
Audio
Input	3 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)
Video Input
Interfaces	3 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate	18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision) HDCP 2.2
Max. Resolution	4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
IR	1 x Mini Stereo Jack Female (Black) / Max distance@ 5m
Connectors
Power	1 x DC Jack Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.
Power Consumption	DC5V:1.46W:6BTU
Environmental
Operating Temperature	0-40 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.15 kg ( 0.33 lb )
Dimensions (L x W x H)	7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.)
Carton Lot	20 pcs
