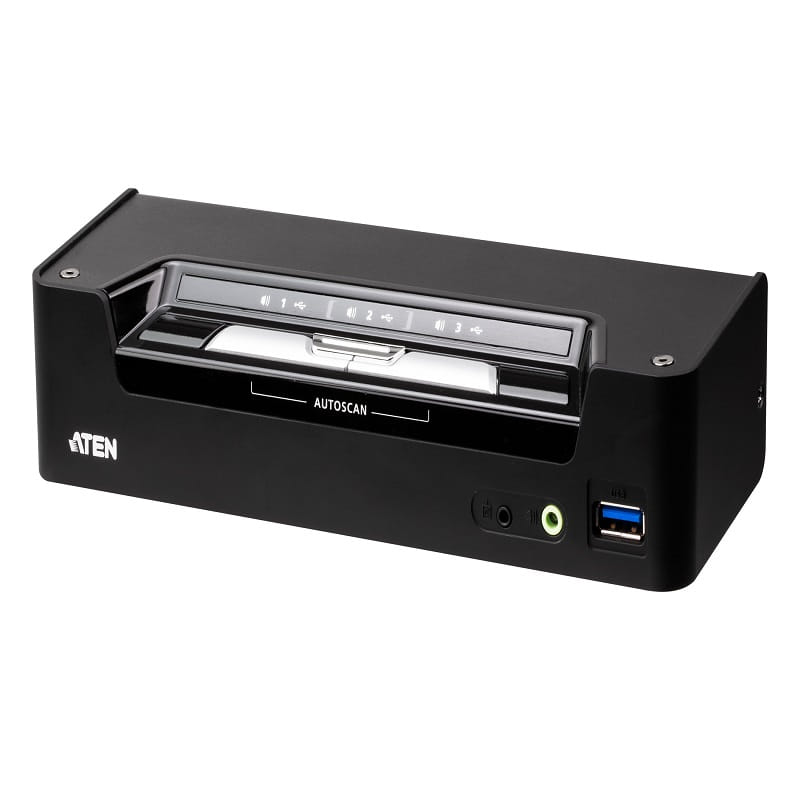

3-Port USB-C DisplayPort Hybrid KVMP™ Switch

3-Port USB-C DisplayPort Hybrid KVMP™ Switch

Product Code : CS1953

Brand Category : Desktop KVM Switches


Description


"

  • One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
  • Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1
  • Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • Independent switching of KVM, USB peripheral, and audio focus4
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant3
  • Supports HD Audio4
  • Supports DisplayPort Dual-Mode technology (DP++)5
  • Firmware upgradeable
  • Bus-powered6

    Note:
    1. An additional power adapter is needed on the CS1953 for USB-C device charging to work.
    2. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
    3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.
    4. HD audio through DisplayPort channel cannot be switched independently.
    5. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP++ compatibility.
    6. The unit can be bus-powered by the connected KVM sources via USB ports.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 3
Port Selection Hotkey, Pushbutton, Mouse, Remote Port Selector

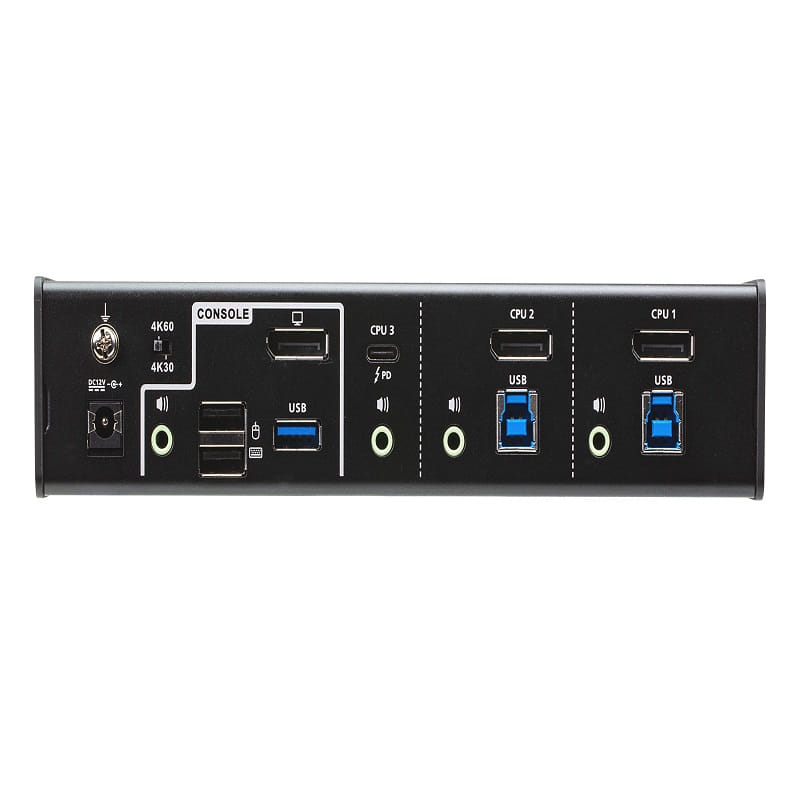

Connectors
Console Ports 2 x USB Type A Female
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports CPU1 and CPU2:
2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
CPU3:
1 x USB Type-C Female (Black)
1 x 3.5mm Audio Jack Female (Green)
Remote Port Selector 1 x 2.5mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear)
Switches
Selected 3 x Pushbutton
Mode Switch 1 x Slide Switch
LEDs
Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation
Keyboard / Mouse USB
Video Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC12V:5.78W:269BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.63 x 7.54 x 4.40 cm
(8.12 x 2.97 x 1.73 in.)
