305M Shielded Digital Video Extension Cable

Product Code : 2L-2901

Brand Category : Cat 5 Cables

Description

Supports high quality RGB video transmission
Contains 305 m/1000 ft of shielded low skew cable
Delay Skew: 1 - 100 MHz 25nS/100m Max.
Outer Jacket Material: PVC
Outer Shield Material: Aluminum Mylar
Conductor Material: 24 AWG bare copper
Compatible with ATEN digital Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
UL, ETL approved

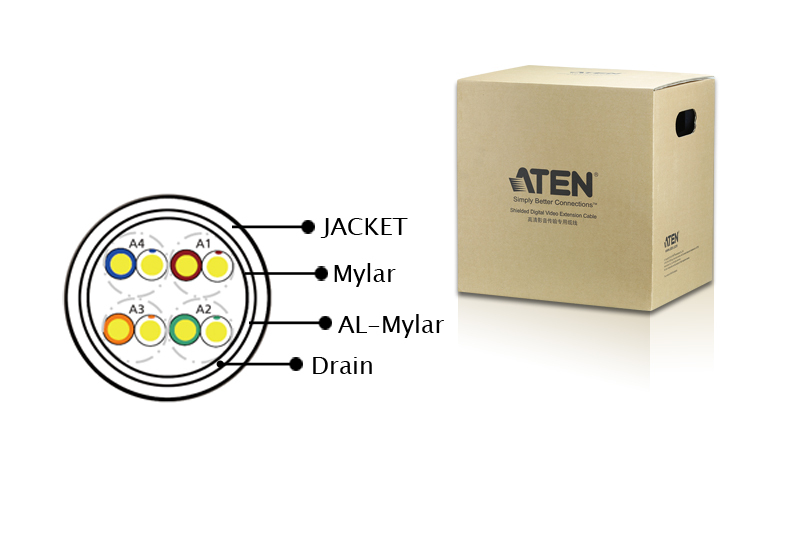

Technical Specification

Conductor
Size	24 AWG
Construction	Bare copper
Conductor Diameter	1/0.5±0.008 mm
Insulation
Average Thickness	0.20 mm
Diameter	0.99 ± 0.05 mm
Material	Polyolefin
Color codes	1.Orange × White/Orange stripe 2.Blue × White/Blue stripe 3.Brown × White/Brown stripe 4.Green × White/Green stripe
Shielded (1)
Material	Mylar
Coverage	100% Coverage with 25% Overlapping
Drain Wire
Size	26 AWG
Material	Tinned Copper
Construction	7/0.16 ± 0.008 mm
Shielded (2)
Material	Aluminum Mylar (Aluminum inward)
Coverage	100% Coverage with 25% Overlapping
Jacketed
Average Thickness	0.45 mm
Diameter	5.6 ± 0.20 mm
Material	PVC
Color	Black
