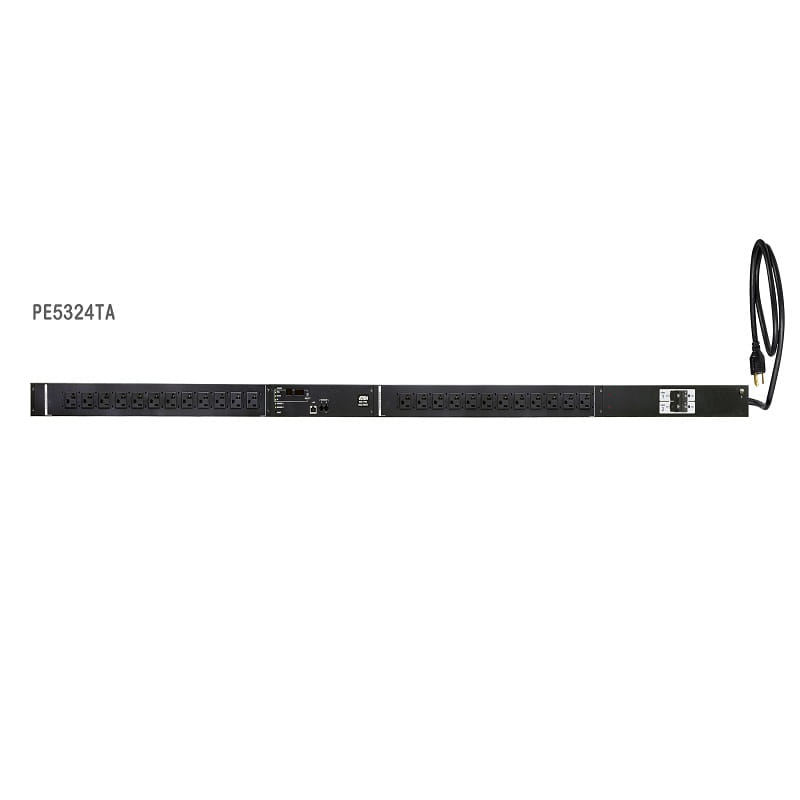

30A 24-Outlet Metered Thin Form Factor eco PDU

Product Code : PE5324TA

Brand Category : Rack PDU

Description

Thin form factor design with 56 mm width
Built-in 10/100 Mbps Ethernet port
Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
Bank level power metering and monitoring
Environment monitoring via external sensors for rack temperature and humidity readings and alerts
Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
Space saving 0U rack mount design with rear mounting
Lok-U-Plug & EZ-Lok – easily secures power cable to PDU

eco DC Energy Management Software *
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Real-time environment sensor monitoring
Plotting/monitoring of all PE devices
Exceed threshold alert through SMTP and System log
Power analysis report
* eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

Technical Specification

Electrical
Nominal Input Voltage	100 – 120 VAC
Maximum Input Current	30A(Max)
Input Frequency	50-60 Hz
Input Connection	NEMA L5-30P
Input Power	3600 VA(Max)
Outlet Type	Total: 24 x NEMA 5-20R Bank1: Outlet 1 – 12; 12 x NEMA 5-20R Bank2: Outlet 13 – 24; 12 x NEMA 5-20R
Nominal Output Voltage	100 – 120 VAC
Maximum Output Current (Outlet)	NEMA 5-20R: 15A(Max)
Maximum Output Current (Bank)	15A(Max)
Maximum Output Current (Total)	30A(Max)
Metering	Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching	None
Environment Sensor Ports	2
Metering Accuracy	Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)	177.50 x 5.60 x 4.80 cm (69.88 x 2.2 x 1.89 in.)
Weight	4.95 kg ( 10.9 lb )
Power Cord Length	3 m
Environmental
Temperature (Operating / Storage)	0–50°C / -20–60°C
Humidity (Operating & Storage)	0–80% RH, Non-Condensing
Compliance
EMC Verification	FCC, J55022, Others by Request
Safety Verification	PSE, Others by Request
