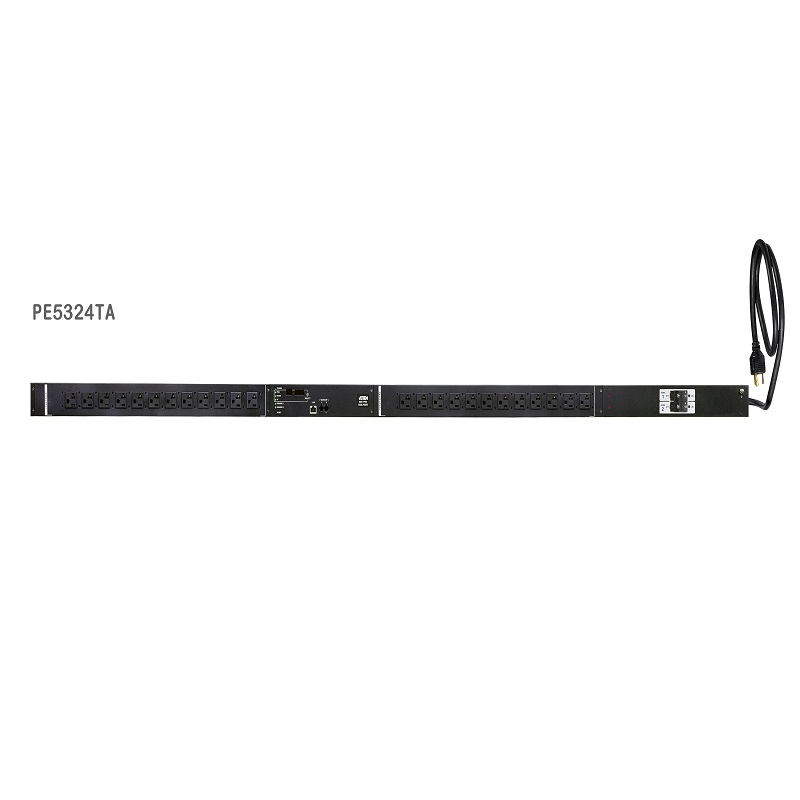

30A 24-Outlet Metered Thin Form Factor eco PDUs

30A 24-Outlet Metered Thin Form Factor eco PDUs

Product Code : PE5324TAA

Brand Category : Rack PDU


Description




  • Thin form factor design with 56 mm width
  • Built-in 10/100 Mbps Ethernet port
  • Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • 2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
  • Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
  • Bank level power metering and monitoring
  • Environment monitoring via external sensors for rack temperature and humidity readings and alerts
  • Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
  • Space saving 0U rack mount design with rear mounting
  • Lok-U-Plug & EZ-Lok – easily secures power cable to PDU

    eco DC Energy Management Software *
  • Automatic discovery of all PE devices within the same intranet
  • Remote real-time power measurement and monitoring
  • Real-time environment sensor monitoring
  • Plotting/monitoring of all PE devices
  • Exceed threshold alert through SMTP and System log
  • Power analysis report
    * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.




Add to Query Cart PDF Download


Technical Specification


Electrical
Nominal Input Voltage 100 – 120 VAC
Maximum Input Current 30A(Max)
Input Frequency 50-60 Hz
Input Connection NEMA L5-30P
Input Power 3600 VA(Max)
Outlet Type Total: 24 x NEMA 5-20R
Bank1: Outlet 1 – 12; 12 x NEMA 5-20R
Bank2: Outlet 13 – 24; 12 x NEMA 5-20R
Nominal Output Voltage 100 – 120 VAC
Maximum Output Current (Outlet) NEMA 5-20R: 15A(Max)
Maximum Output Current (Bank) 15A(Max)
Maximum Output Current (Total) 30A(Max)
Metering Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching None
Environment Sensor Ports 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 177.50 x 5.60 x 4.80 cm
(69.88 x 2.2 x 1.89 in.)
Weight 4.95 kg ( 10.9 lb )
Power Cord Length 3 m
Environmental
Temperature (Operating / Storage) 0–50°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing
Compliance
EMC Verification FCC, J55022, Others by Request
Safety Verification PSE, Others by Request
