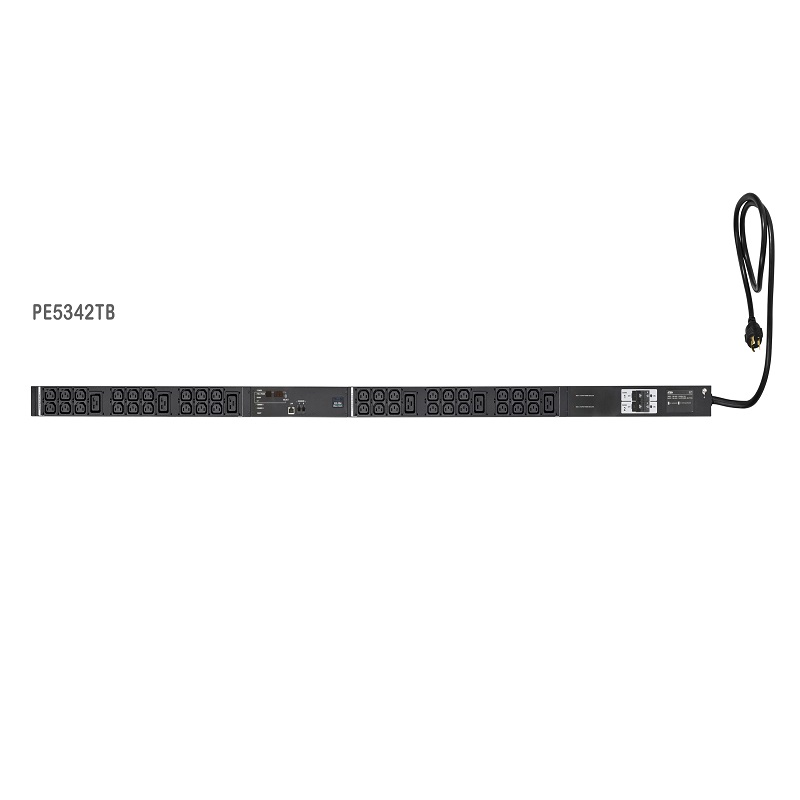

30A 42-Outlet Metered Thin Form Factor eco PDU

30A 42-Outlet Metered Thin Form Factor eco PDU

Product Code : PE5342TB

Brand Category : Rack PDU


Description


  • Thin form factor design with 56 mm width
  • Built-in 10/100 Mbps Ethernet port
  • Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • 2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
  • Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
  • Bank level power metering and monitoring
  • Environment monitoring via external sensors for rack temperature and humidity readings and alerts
  • Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
  • Space saving 0U rack mount design with rear mounting
  • Lok-U-Plug & EZ-Lok – easily secures power cable to PDU

    eco DC Energy Management Software *
  • Automatic discovery of all PE devices within the same intranet
  • Remote real-time power measurement and monitoring
  • Real-time environment sensor monitoring
  • Plotting/monitoring of all PE devices
  • Exceed threshold alert through SMTP and System log
  • Power analysis report
    * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

Add to Query Cart PDF Download


Technical Specification


Electrical
Nominal Input Voltage100 – 240 VAC
Maximum Input Current30A(Max)
Input Frequency50-60 Hz
Input ConnectionNEMA L6-30P
Input Power6240 VA(Max)
Outlet TypeTotal: 36 x IEC320 C13 + 6 x IEC320 C19
Bank1: Outlet 1 – 21; 18 x C13 + 3 x C19
Bank2: Outlet 22 – 42; 18 x C13 + 3 x C19
Nominal Output Voltage100 – 240 VAC
Maximum Output Current (Outlet)C13: 15A(Max)
C19: 15A(Max)
Maximum Output Current (Bank)15A(Max)
Maximum Output Current (Total)30A(Max)
Breakers2 x 16A Slim Breaker
MeteringBank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet SwitchingNone
Environment Sensor Ports2
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)177.50 x 5.60 x 4.80 cm
(69.88 x 2.2 x 1.89 in.)
Weight6.01 kg ( 13.24 lb )
Power Cord Length3 m
Environmental
Temperature (Operating / Storage)0–50°C / -20–60°C
Humidity (Operating & Storage)0–80% RH, Non-Condensing
Compliance
EMC VerificationFCC, J55022, Others by Request
Safety VerificationPSE, Others by Request
