Product Code : PE1324
Brand Category : Rack PDU
| Function | PE1324B | PE1324G |
| Electrical | ||
| Nominal Input Voltage | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Input Current | 30A(Max) | 32A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA L6-30P | IEC 60309 32A |
| Input Power | 6240 VA(Max) | 7360 VA(Max) |
| Outlet Type | Total: 24 x IEC320 C13 Bank1: Outlet 1 – 12; 12 x C13 Bank2: Outlet 13 – 24; 12 x C13 |
Total: 24 x IEC320 C13 Bank1: Outlet 1 – 12; 12 x C13 Bank2: Outlet 13 – 24; 12 x C13 |
| Nominal Output Voltage | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Output Current (Outlet) | 15A(Max) | 10A(Max) |
| Maximum Output Current (Bank) | 15A(Max) | 16A(Max) |
| Maximum Output Current (Total) | 30A(Max) | 32A(Max) |
| Breakers | 2 x 16A UL489 Breaker | 2 x 16A UL489 Breaker |

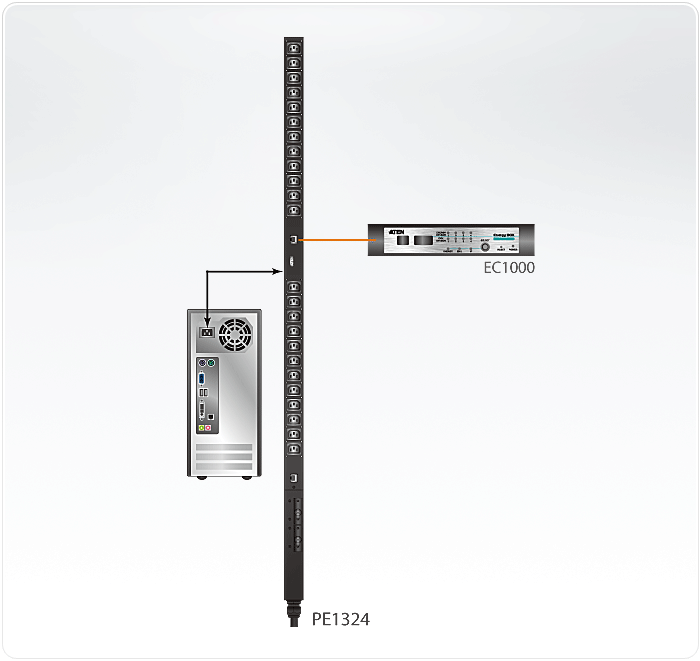

| Metering | Bank Level Current Monitoring (Via EC1000 Energy Box) | Bank Level Current Monitoring (Via EC1000 Energy Box) |
| Outlet Switching | None | None |
| Environment Sensor Ports | 0 | 0 |
| Metering Accuracy | Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% | Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Physical Properties | ||
| Dimensions (L x W x H) | 130.00 x 4.04 x 4.40 cm (51.18 x 1.59 x 1.73 in.) |
130.00 x 4.04 x 4.40 cm (51.18 x 1.59 x 1.73 in.) |
| Weight | 3.60 kg ( 7.93 lb ) | 3.60 kg ( 7.93 lb ) |
| Power Cord Length | 1.6 m | 1.6 m |
| Environmental | ||
| Temperature (Operating / Storage) | 0–50°C / -20–60°C | 0–50°C / -20–60°C |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing |
| Compliance | ||
| EMC Verification | FCC, Others by Request | CE, C-Tick, Others by Request |
| Safety Verification | PSE, Others by Request | TUV-CB, GOST, Others by Request |
