30A/32A 24-Outlet Metered & Switched Low Profile eco PDU

30A/32A 24-Outlet Metered & Switched Low Profile eco PDU

Product Code : PE6324L

Brand Category : Rack PDU


Description


  • Connections
  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
  • Support : eco DC, Browser (IE, Firefox, Chrome, Safari)
  • Metering
  • Bank level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
  • Outlet Switch Control
  • Remote power outlet control ( On/Off, Power Cycle) by individual outlets and outlet groups
  • Support multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
  • Power-On sequencing – users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order
  • Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices

Add to Query Cart PDF Download


Technical Specification


FunctionPE6324LBPE6324LG
Electrical
Nominal Input Voltage100 – 240 VAC100 – 240 VAC
Maximum Input Current30A (Max); 24A (UL-derated)32A(Max)
Input Frequency50-60 Hz50-60 Hz

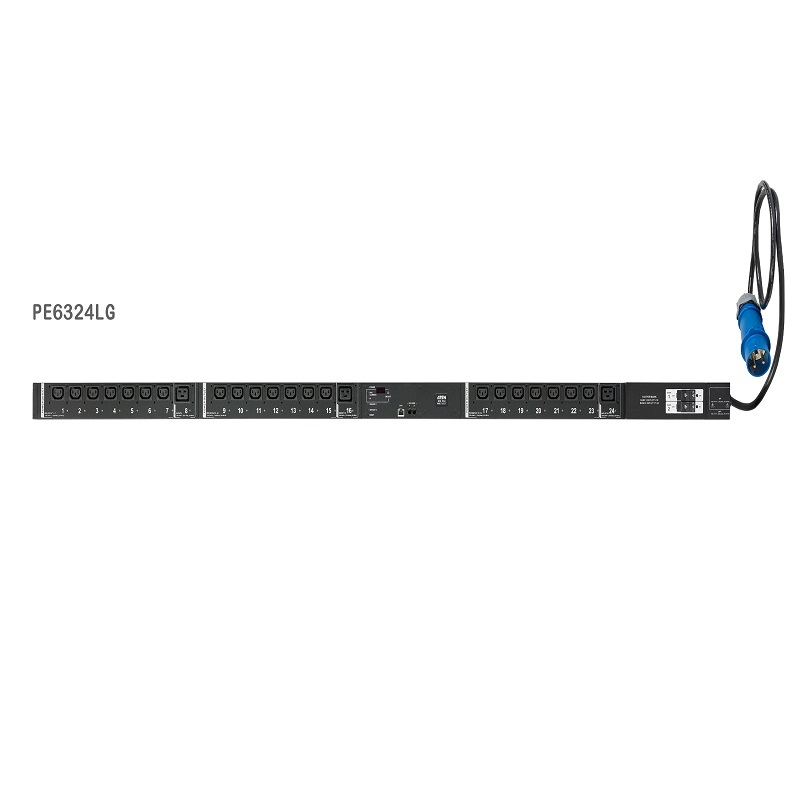

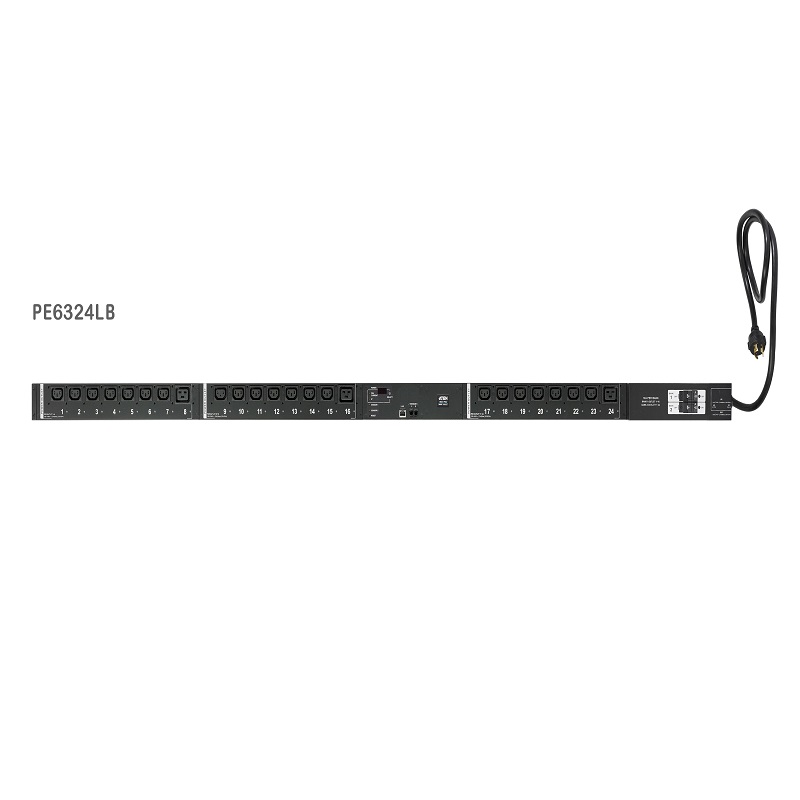

Input ConnectionNEMA L6-30PIEC 60309 32A
Input Power6240 VA(Max) ;
4992 VA(UL de-rated)
7360 VA(Max)
Outlet TypeTotal: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Nominal Output Voltage100 – 240 VAC100 – 240 VAC
Maximum Output Current (Outlet)C13: 15A (Max) ; 12A (UL de-rated)
C19: 20A (Max) ; 16A (UL de-rated)
C13: 10A(Max)
C19: 16A(Max)
Maximum Output Current (Bank)15A (Max) ; 12A (UL de-rated)16A(Max)
Maximum Output Current (Total)30A (Max) ; 24A (UL de-rated)32A(Max)
Breakers2 x 16A Slim Breaker2 x 16A Slim Breaker
MeteringBank Level Current, Voltage, VA , PF and kWh MonitoringBank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet SwitchingYesYes
Environment Sensor Ports22
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
Weight5.76 kg ( 12.69 lb )5.76 kg ( 12.69 lb )
Power Cord Length1.6 m1.6 m
Environmental
Temperature (Operating / Storage)0–50°C / -20–60°C0–40°C / -20–60°C
Humidity (Operating & Storage)0–80% RH, Non-Condensing0–80% RH, Non-Condensing
Compliance
EMC VerificationFCC, Others by RequestCE, C-Tick, Others by Request
Safety VerificationBy RequestCE-LVD, Others by Request
