32-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

32-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

Product Code : KH1532A

Brand Category : Cat 5 KVM Switches


Description


"

  • One KVM console controls up to 32 directly connected computers
  • Space-Saving RJ-45 connectors and Cat 5e/6 cabling
  • By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console
  • Console conversion – any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides
  • Superior video quality – supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters*, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
  • Configure port access rights for users on a port-by-port basis
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support – Windows, Linux, Mac and Sun
  • Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
  • Multiple user accounts – supports up to 10 user and 1 administrator accounts
  • Two-Level password security – supports one administrator and ten user profiles. Password protection prevents unauthorized access to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installations, upgrades, shutdowns, etc.), on all computers simultaneously
  • Adapter ID feature
  • Firmware Upgradeable


    *For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections
Direct 32
Maximum 1024 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton

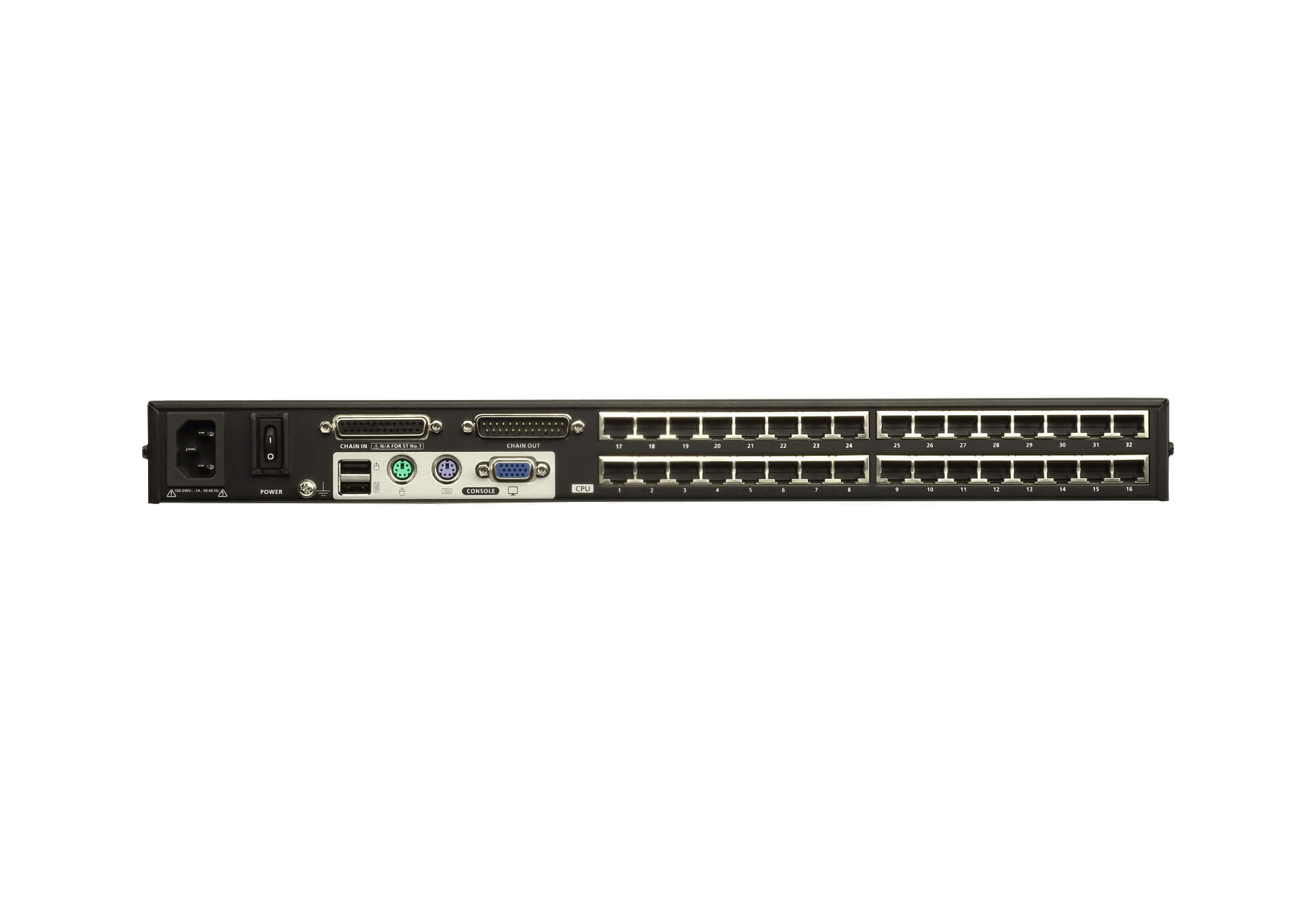

Connectors
Console Ports 2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 32 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female
Power 1 x IEC 60320/C14
Switches
Port Selection 32 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide
Power 1 x Rocker
LEDs
Online 32 (Green)
Selected 32 (Orange)
Power 1 (Blue)
Station ID 1 x 2 Digit 7-segment (Orange)
Emulation
Keyboard / Mouse PS/2; USB
Scan Interval 1–255 seconds
Video 1920 x 1200 @ 60 Hz (30 m);
1600 x 1200 @ 60 Hz (40 m);
1280 x 1024 @ 75 Hz (50 m)
Maximum Input Power Rating 100–240V AC; 50/60 Hz; 1A
Power Consumption AC110V:4.6W:30BTU
AC220V:4.8W:31BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.81 kg ( 6.19 lb )
Dimensions (L x W x H) 43.72 x 16.37 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
