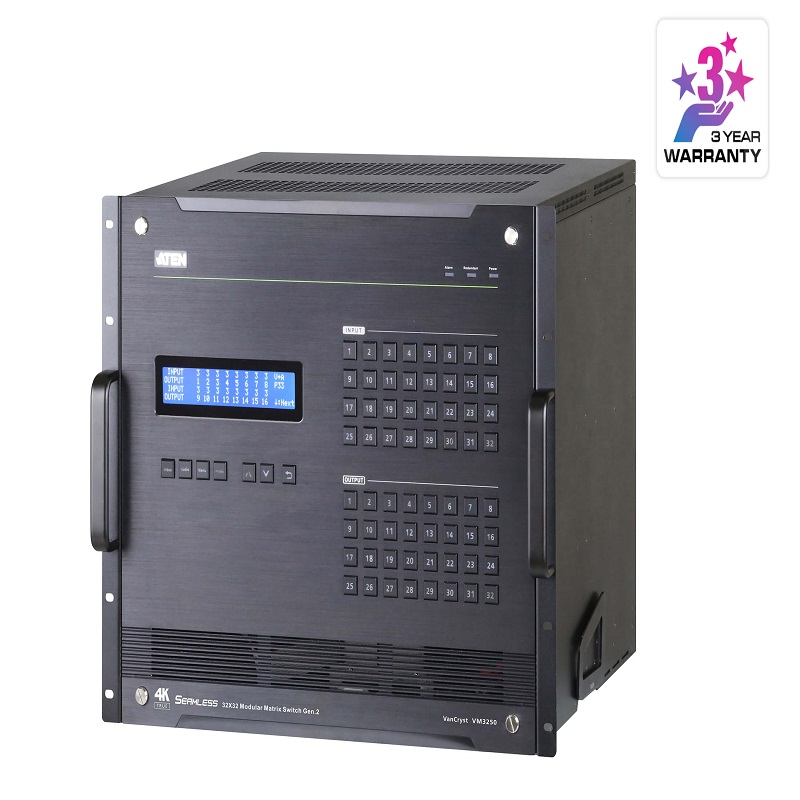

32 x 32 Modular Matrix Switch Gen.2

32 x 32 Modular Matrix Switch Gen.2

Product Code : VM3250

Brand Category : Video Matrix Switches


Description

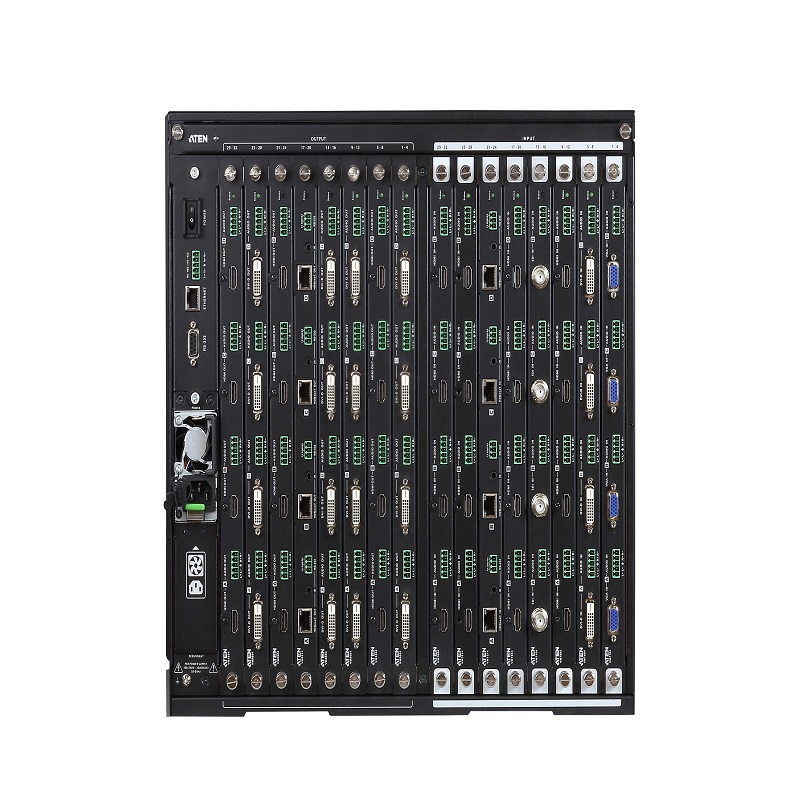

  • 32 x 32 I/O connections via 8 x 8 I/O slots for modular matrix boards
  • Multiple Control Methods – system management via front-panel pushbuttons, serial control over RS-232/RS-485/RS-422, and web GUI/Telnet over Ethernet connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • True 4K Resolutions – Supports uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) *
  • Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions*
  • Seamless Switch – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
  • Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output
  • Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration
  • Calendar-based Scheduling – allows profile playing based on the pre-set schedule synchronized with RTC
  • EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*
  • Enables power supply via HDBaseT with installation of I/O boards and power injectors (VE44PB recommended), eliminating the need for separately installing power infrastructures to save overall cost
  • Optional Redundant Power Supply – ensures higher reliability for mission-critical applications
  • Support long-distance transmission via optical or HDBaseT I/O boards and extenders
  • Hot-swappable I/O boards, fan module, and power supplies for easy maintenance
  • ESD protection for HDMI
  • Rack-mountable (9U design)
    *Note:
    1. The availability of these features depends on which I/O board is inserted.
    2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™

Add to Query Cart PDF Download


Technical Specification


Board Input 8 x Slot
Board Output 8 x Slot
Video Input
Interfaces Depends on which I/O board is inserted
Max. Data Rate 22.5 Gbps
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50-60Hz; 10A
Power Consumption AC110V:800W:239BTU
AC220V:800W:236BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Dimensions (L x W x H) 48.20 x 47.19 x 39.90 cm
(18.98 x 18.58 x 15.71 in.)
Weight 18.20 kg ( 40.09 lb )
Rack Height (U Spaces) 9U
Carton Lot 1 pc
