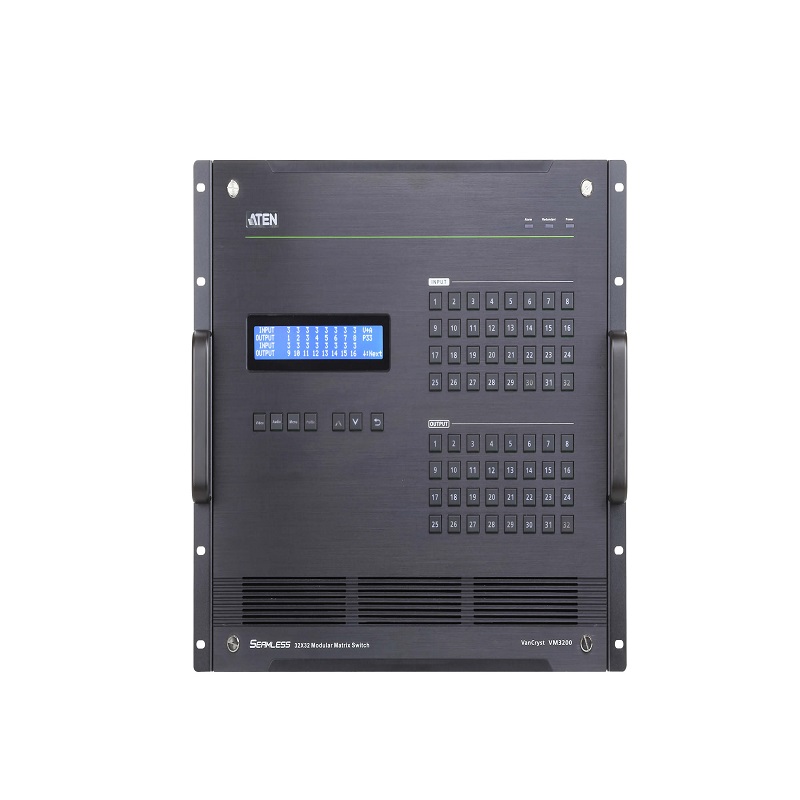

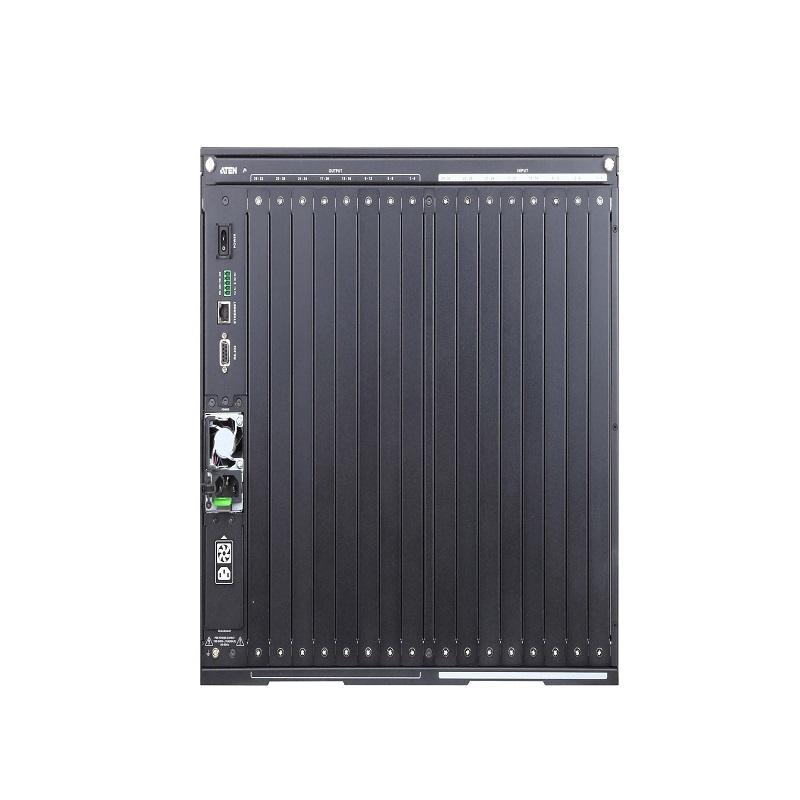

32x32 Modular Matrix Switch

Product Code : VM3200

Brand Category : Video Matrix Switches

Description

Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
Supports 4K resolutions – up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
Seamless Switch™ – features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI
Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output
Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
Audio-enabled – HDMI audio can be extracted, and stereo audio can be embedded (HDMI I/O boards)
Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC
Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections
View and control via ATEN Video Matrix Control App in a swift and agile way
Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
Flexible system expandability via hot-swappable tool-free installation of I/O boards
Enables power supply via HDBaseT with installation of I/O boards and power injectors (VE44PB recommended), eliminating the need for separately installing power infrastructures to save overall cost
Optional redundant power supply – ensures reliability for mission-critical applications
Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
HDCP 2.2 Compatible*
HDMI: 3D, Deep Color, 4K*
Consumer Electronics Control (CEC) supported*
ESD protection for HDMI
Rack mountable (9U design)
Note:
1. The availability of the features with “*” depends on which I/O board is inserted.
2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Add to Query Cart PDF Download

Technical Specification

Board Input	8 x Slot
Board Output	8 x Slot
Video Input
Interfaces	Depends on which I/O board is inserted
Max. Data Rate	15.2 Gbps (3.8Gbps per Lane)
Audio
Input	Depends on which Input board is inserted
Output	Depends on which Output board is inserted
Control
RS-232	Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422	Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet	Connector: 1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60Hz; 10A
Power Consumption	AC110V:800W:239BTU AC220V:800W:236BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Dimensions (L x W x H)	48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.)
Weight	18.20 kg ( 40.09 lb )
Rack Height (U Spaces)	9U
Carton Lot	1 pc
