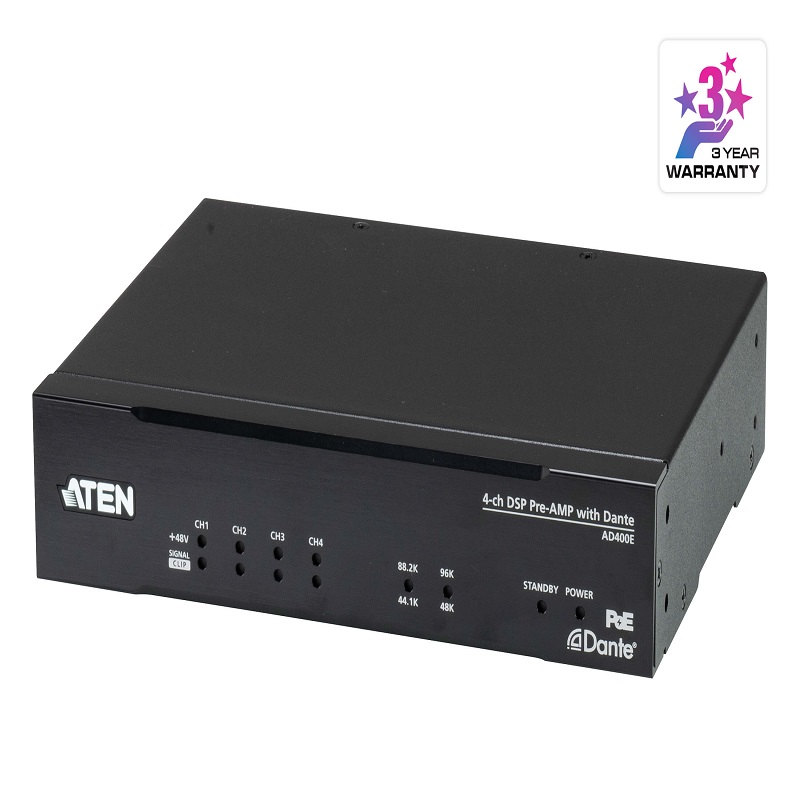

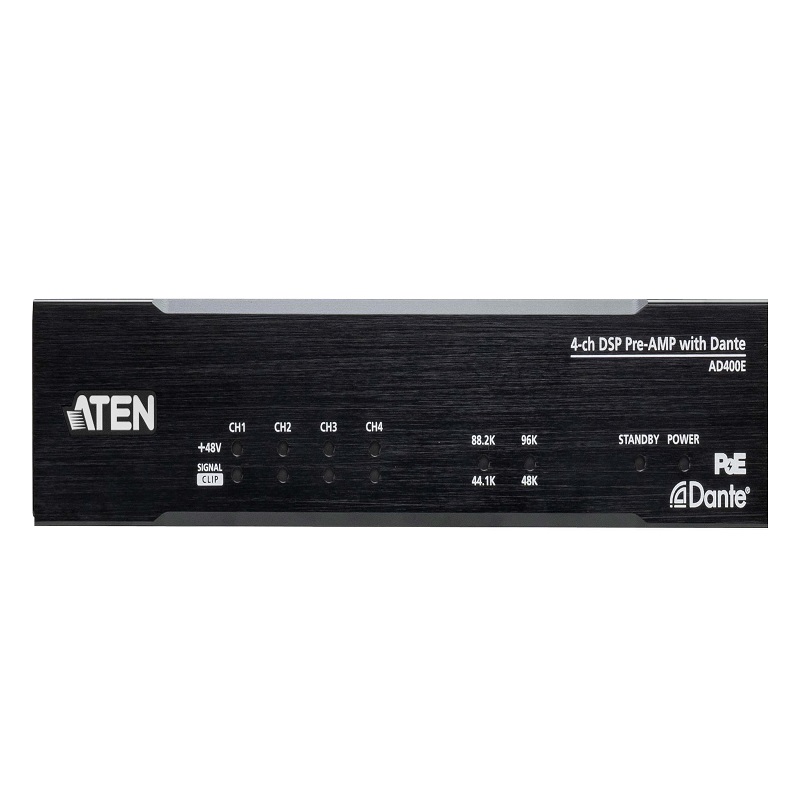

4-ch Mic/Line Pre-AMP with DSP and Dante Output

Product Code : AD400E

Brand Category : Audio

Description

Dante AoIP technology - replaces heavy, costly analog audio cables with cost-effective, easy-to-manage Cat cables
AES67 compliant
Converts 4 channels of balanced / unbalanced microphone / line-level audio signals into Dante packets
Supports 24 bit and offers sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz
Euroblock connectors come with the package for analog input connection
Professional preamp circuitry - delivers a wide dynamic range and great Signal-to-Noise Ratio (SNR)
Phantom power (+48V) - can be enabled on any individual input, supporting condenser microphones while causing little signal distortion
Parallel Compression - 4 additional channels serve as side chain inputs, combining an original signal with a compressed copy to polish the sound
Built-in DSP - allows 24 presets and quick setting adjustment through PC-based app Audio Wizard / ATEN VK control system via LAN / RS-232
Selectable automatic Standby Mode - the unit enters Standby Mode automatically when the signal level runs lower than -50 / -60 / -70 dBu for a selected duration (10 / 30 / 60 minutes)
Supports PoE for redundancy operation and eliminating the need for additional wiring installations
Supports Dante Daisy Chaining for simplifying system infrastructure wiring
Compact half-rack size chassis - flexible installation inside racks and easy placement under desks or on flat surfaces
Works with ATEN Pro Audio models to realize distributed DSP systems

Technical Specification

Microphone Inputs
Gain Range	0~+34dB
Maximum Input Level	-30dBu
Impedance	3kΩ
Phantom power	+48V, Individual Control in Each Input Channel
Line Inputs
Gain Range	Balanced: -8~+4dB Unbalanced: -8~+10dB
Maximum Input Level	+24dBu, Nominal Input Level: +4dBu
Impedance	Balanced: 20kΩ Unbalanced: 10kΩ
System Specification
Distortion	THD+N: <0.01%, 1kHz, Max. Gain
Frequency Response	20~20kHz, +/-0.5dB
Audio Sampling	24-bit, 44.1k/48k/88.2k/96kHz
Crosstalk	<-95dB
Power
Power Consumption	12VDC, 3.3A
Power over Ethernet (PoE)	Class 0, IEEE802.3af
Control
RS-232	Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet	RJ45
Compliance
Certification	FCC, CE, UKCA
Environmental
Operating Temperature	0~40℃
Humidity	0-80% RH, Non-Condensing
Storage Temperature	-20~60℃
Physical Properties
Weight	0.92 kg ( 2.04 lb )
Housing	Metal
Dimensions (L x W x H)	20.00 x 4.40 x 15.40 cm (7.87 x 1.73 x 6.06 in.)
Note	External power adapter is sold separately.
