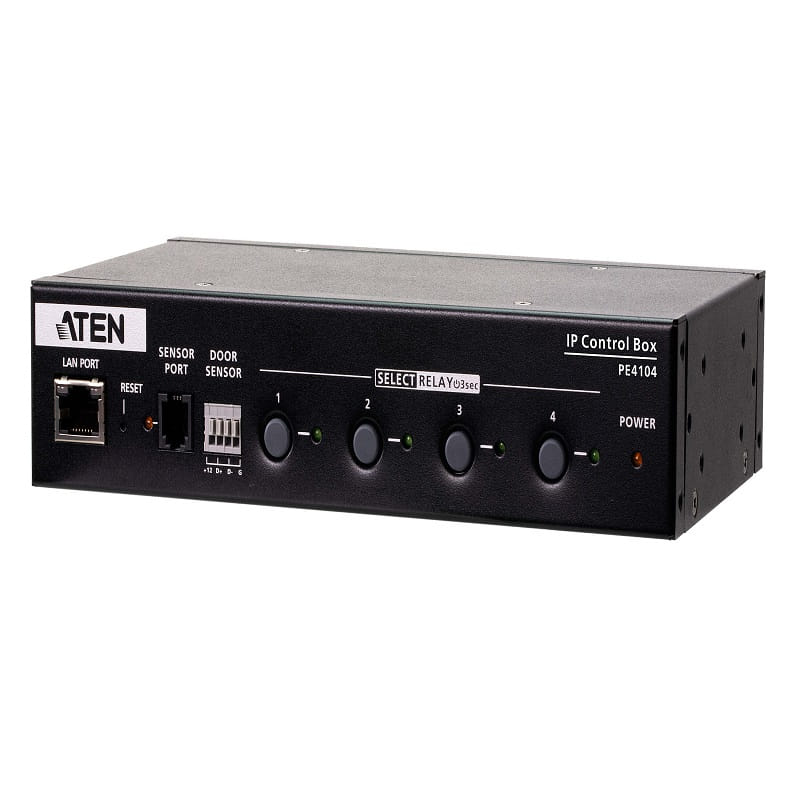

4-Outlet IP Control Box

4-Outlet IP Control Box

Product Code : PE4104

Brand Category : Rack PDU

Description

  • Power Distribution
    • Space saving slim form factor
    • IEC / NEMA power outlet
    • Separates power for the unit's own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker



  • Remote Access
    • Remote power control via TCP/IP and a built in 10/100 Ethernet port
    • Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
    • Works with web-based eco DC software
    • Supports IMAP and POP3 email protocols – enables users to switch on / off PE4104's outlets via E-mail
    • Schedule control



  • Operation
    • Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
    • Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
    • Easy setup and operation via a browser-based user interface
    • Receives the heartbeat signals of its connected devices from PMonitor regularly to ensure their normal operation and reboots them when no signal is being sent to it
    • Outlet lock functionality – use of the front panel Power Control Button for the outlet can be disabled to prevent inadvertent button presses



  • Security
    • Two-level password security
    • Strong security features include password protection and advanced encryption technologies – TLS1.2
    • Remote authentication support: RADIUS

Add to Query Cart PDF Download

Technical Specification

FunctionPE4104APE4104G
Electrical
Nominal Input Voltage100-120 VAC100 – 240 VAC
Maximum Input Current15A(Max), 12A(UL de-rated)10A(Max)
Input Frequency50-60 Hz50-60 Hz
Input ConnectionNEMA 5-15PIEC C14
Input Power1800VA(Max) 1440VA(UL de-rated)2400VA(Max)
Outlet Type(4) NEMA 5-15R(4) IEC 320 C13
Nominal Output Voltage100-120 VAC100 – 240 VAC
Maximum Output Current (Outlet)15A(Max), 12A(UL de-rated)10A(Max)
Maximum Output Current (Bank)15A(Max), 12A(UL de-rated)10A(Max)
Maximum Output Current (Total)15A(Max), 12A(UL de-rated)10A(Max)
BreakersYes(UL1077)Yes(UL1077)
MeteringNoNo
Outlet SwitchingYesYes
Power ConsumptionAC110V:3.1W:20BTU
AC220V:3.5W:22BTU		AC110V:3.1W:20BTU
AC220V:3.5W:22BTU
Physical Properties
Dimensions (L x W x H)20.00 x 12.81 x 4.40 cm
(7.87 x 5.04 x 1.73 in.)		20.00 x 12.81 x 4.40 cm
(7.87 x 5.04 x 1.73 in.)
Weight0.90 kg ( 1.98 lb )0.90 kg ( 1.98 lb )
Power Cord Length3m3m
Environmental
Temperature (Operating / Storage)0 – 50℃ / -20 – 60℃0 – 50℃ / -20 – 60℃
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing
Compliance
EMC VerificationFCC Class ACE-EMC
Safety VerificationBy requestCE-LVD
