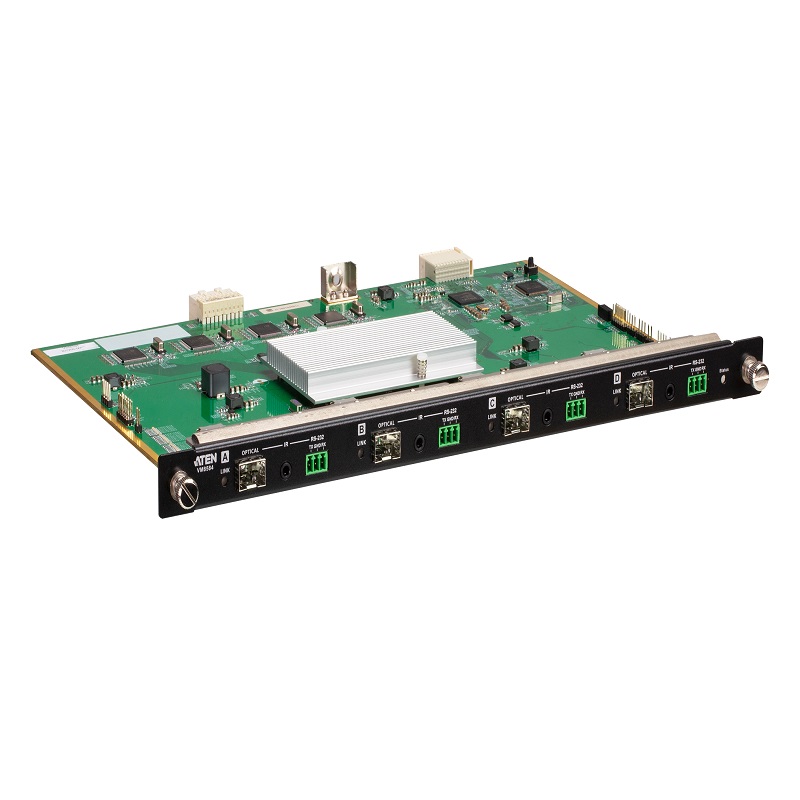

4-Port 10G Optical Output Board (4K@300m (K1, MM) / 10km (K2, SM))

Product Code : VM8584

Brand Category : Video Matrix Switches

Description

Compatible with the VM3250/VM3200/VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
Superior video quality over long-distance transmission – up to 4096 x 2160@60Hz (4:2:0), 300m with VM8584K1 over multimode cables or 10km with VM8584K2 over single-mode cables
Scaler – features a 4K video scaling function to convert input resolutions to the optimum display resolutions*
Seamless Switch ™ – features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
Consumer Electronics Control (CEC) support
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners*
Bi-directional IR channel – IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz*
EDID Expert ™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate*
Hot-swappable fiber optic module and I/O boards for easy integration and maintenance

*Note: The VM8584 is designed to work with the VE883R video Receiver. The features are only available when used with the VE883R.

Technical Specification

Fiber Optics
Data Rate	10.3 Gbps
Wavelength	VM8584K1: 850 nm VM8584K2: 1310 nm
Fiber Type	VM8584K1: Multimode(MM), OM3, LC Duplex Type VM8584K2: Singlemode(SM), LC Duplex Type
Video Output
Interfaces	4 x bi-directional SFP+ (LC)
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP 2.2 compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	VM8584K1: up to 300m (MM, OM3, Black) VM8584K2: up to 10km (SM, Blue)
Control
RS-232 Channel	4 x Captive Screw Connectors, 3 pole
IR Channel	4 x Mini Stereo Jack Female (Black)
LEDs
Status	1 (Green)
Link	4 (Orange)
Power Consumption	22.96W:108BTU
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.65 kg ( 1.43 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Carton Lot	2 pcs
Note	1. The operating distance may vary depending on the fiber type, network bandwidth, connector splicing, signal losses, modal or chromatic dispersion, environmental factors, and kinks. 2. ATEN recommends using single-mode optical fibers that conform to IEC60793-2-50 B1.1 or ITU-T G.652.B specifications; multimode optical fibers that conform to IEC11801 (OM3) specification. 3. The VM8584 is a class 1 laser product and complies with the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
