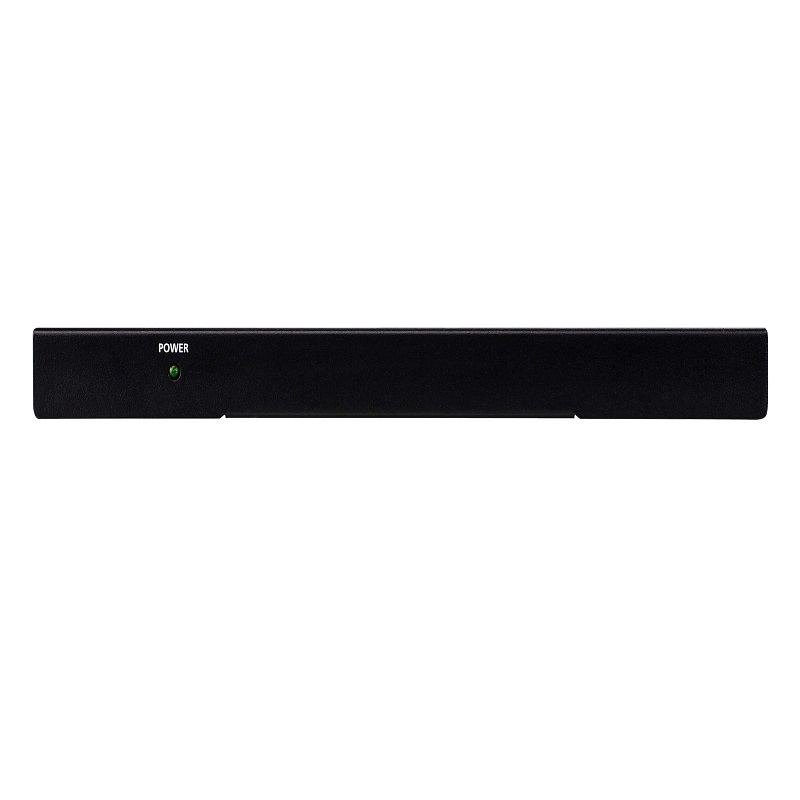

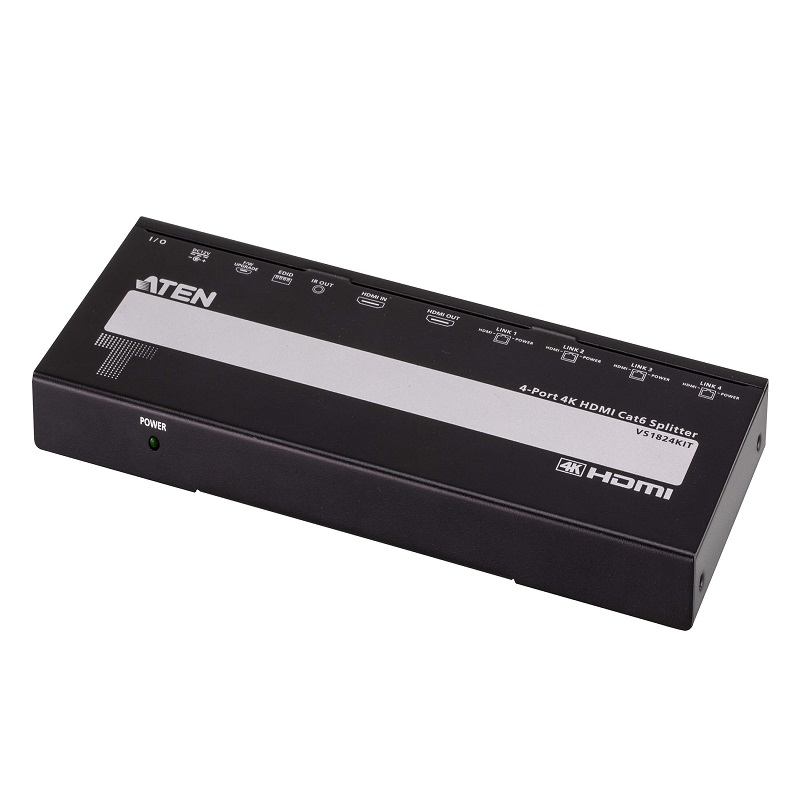

4-Port 4K HDMI Cat 6 Splitter with Receivers

4-Port 4K HDMI Cat 6 Splitter with Receivers

Product Code : VS1824KIT

Brand Category : Video Splitters

Description

  • A kit that includes 1 splitter and 4 receivers to distribute 1 HDMI source to 4 displays up to 40m away via a single Cat 6 cable
  • Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
  • Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio
  • HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
  • Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
  • HDMI local output port on splitter for content monitoring or cascading purposes
  • User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration
  • VE1821R's ultra lightweight, palm-sized case enables flexible installation including mounting and placement in tight spaces
  • One-way IR channel for remote control of the source device from the receiver side
  • Built-in 4KV/8KV ESD protection
  • Plug-and-play – no additional software needed

Add to Query Cart PDF Download

Technical Specification

Function VE1821R VS1824T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Impedance 100 Ω 100 Ω
Max. Distance 3 m 3 m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible		 HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible
Max. Resolutions / Distance Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Control
IR Channel 1 x Mini Stereo Jack Female (Black);
(NOTE1)		 1 x Mini Stereo Jack Female (Black);
(NOTE1)
Connectors
Unit To Unit 1 x RJ-45 Female 4 x RJ-45 Female
Power 1 x RJ-45 Female
(Power over Cable, power supply from VS1824T)		 1 x DC Jack (Black) with locking
Maintenance N/A Micro USB for F/W upgrade
Switches
Mode Switch N/A EDID Mode Selection
Power N/A Power ON/OFF
Power Consumption 11WBTU 11WBTU
Environmental
Operating Temperature 0 - 40°C 0 - 40°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 20 - 90% RH, Non-Condensing 20 - 90% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.12 kg ( 0.28 lb ) 0.44 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket 7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)		 N/A (Housing comes without bracket)
Dimensions (L x W x H) without bracket 5.75 x 6.80 x 1.65 cm
(2.26 x 2.68 x 0.65 in.)		 21.00 x 8.20 x 1.80 cm
(8.27 x 3.23 x 0.71 in.)
Note NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.		 NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.
