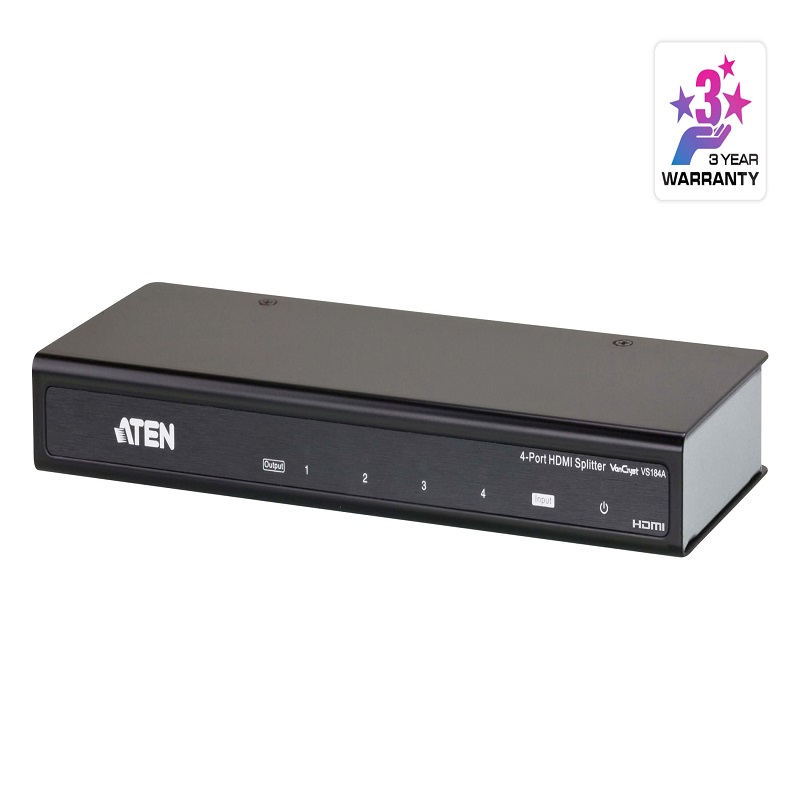

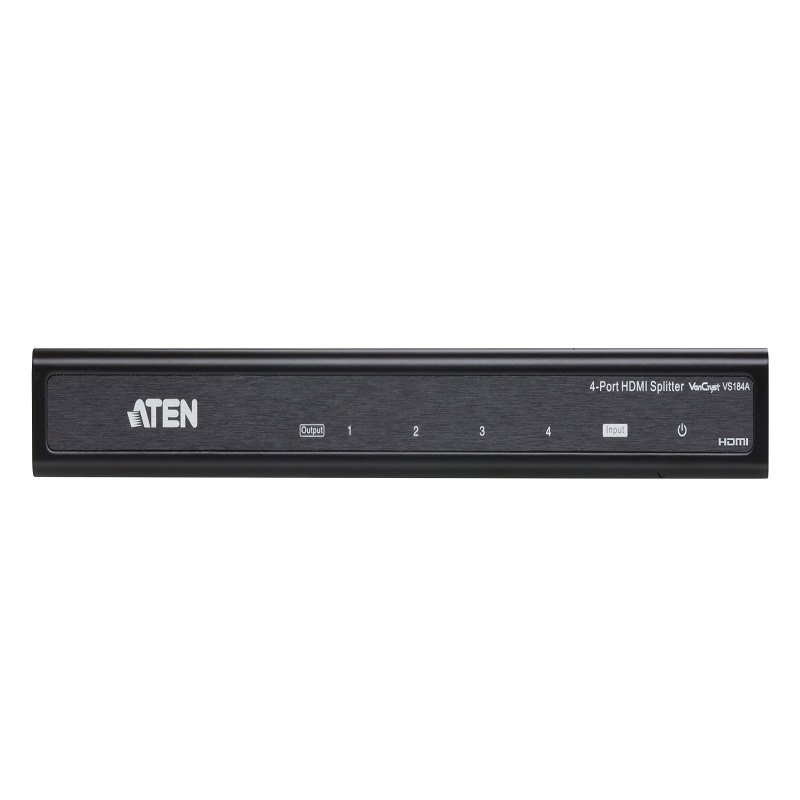

4-Port 4K HDMI Splitter

Product Code : VS184A

Brand Category : Video Splitters

Description

Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP Compatible
Supports resolutions of up to Ultra HD 4k x 2k
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports max. data rate of 10.2 Gbps
Plug-and-play – no software installation required

Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @3840x2160@30Hz (4:4:4)
Video Output
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @3840x2160@30Hz (4:4:4)
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K); HDCP Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Output	4 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:6.02W:28BTU
Environmental
Operating Temperature	0-50 °C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.47 kg ( 1.04 lb )
Dimensions (L x W x H)	20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
Carton Lot	20 pcs
