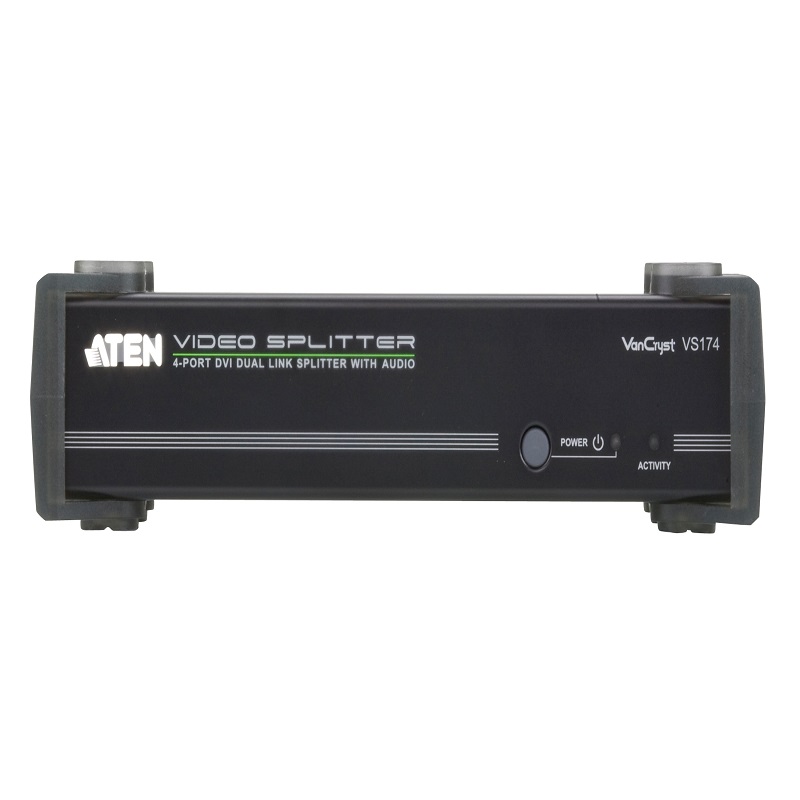

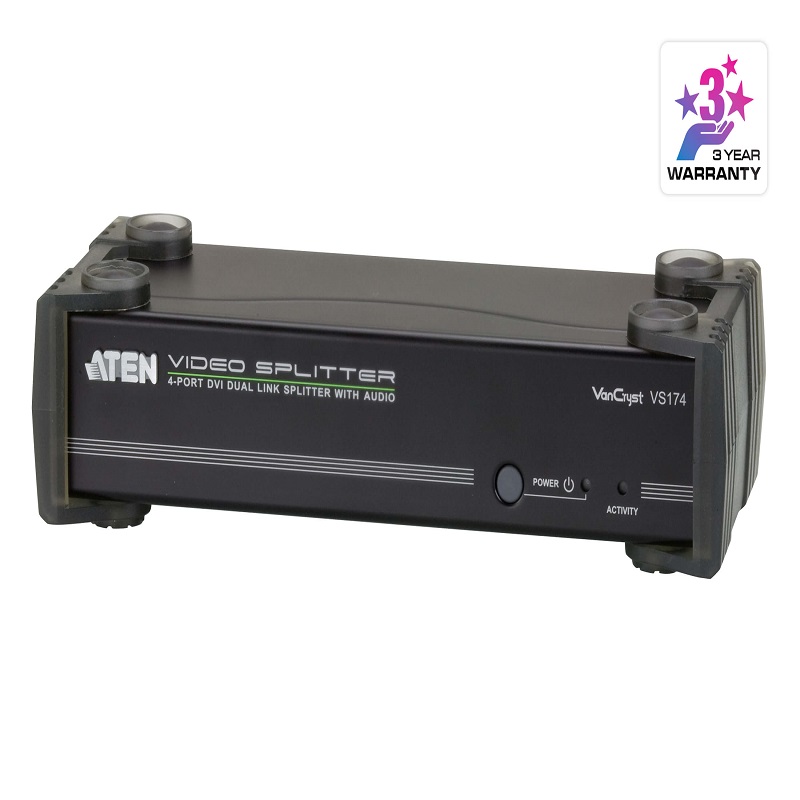

4-Port DVI Dual Link/Audio Splitter

Product Code : VS174

Brand Category : Video Splitters

Description

Displays DVI audio/video to multiple DVI-compatible monitors or projectors
Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
Cascadable to 3 levels – provides up to 64 video signals
Audio enabled
Features RS-232 serial port for command controls
RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
EDID Expert – selects the optimum EDID settings via RS-232

Note:
* The VS174 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
** HDCP is not supported

Technical Specification

Video Input
Interfaces	1 x DVI-D Female (White)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	4 x DVI-D Female (White)
Impedance	100 Ω
Video
Max. Data Rate	13.5 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Max. Resolution	Up to 2560 x 1600
Max. Distance	Up to 5 m
Audio
Input	1 x Mini Stereo Jack Female (Green)
Output	4 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings	EDID Mode: Default / Port 1 / Auto
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:5.91W:28BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.73 kg ( 1.61 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Carton Lot	5 pcs
