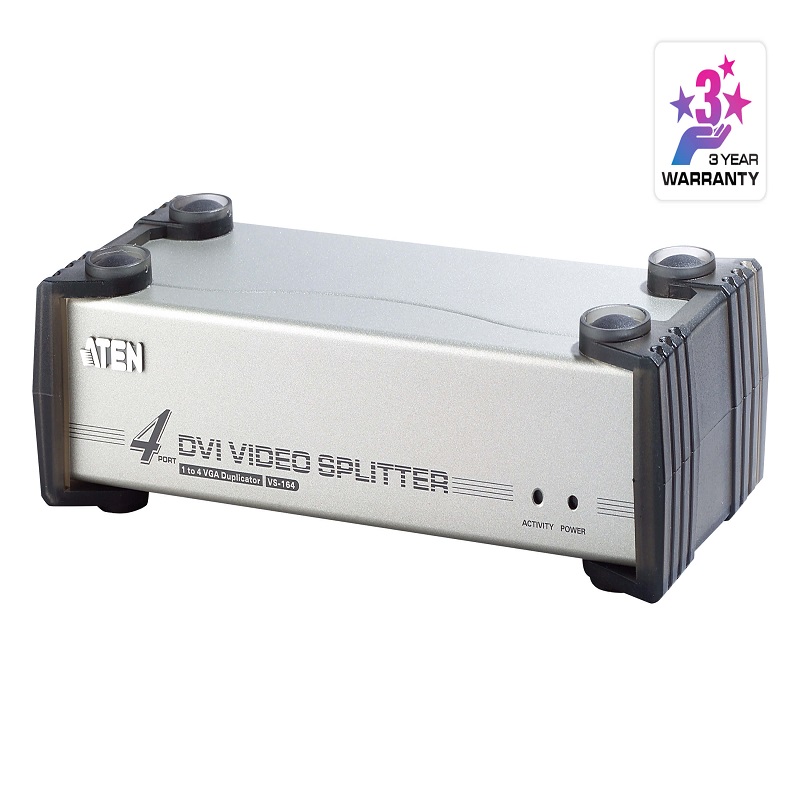

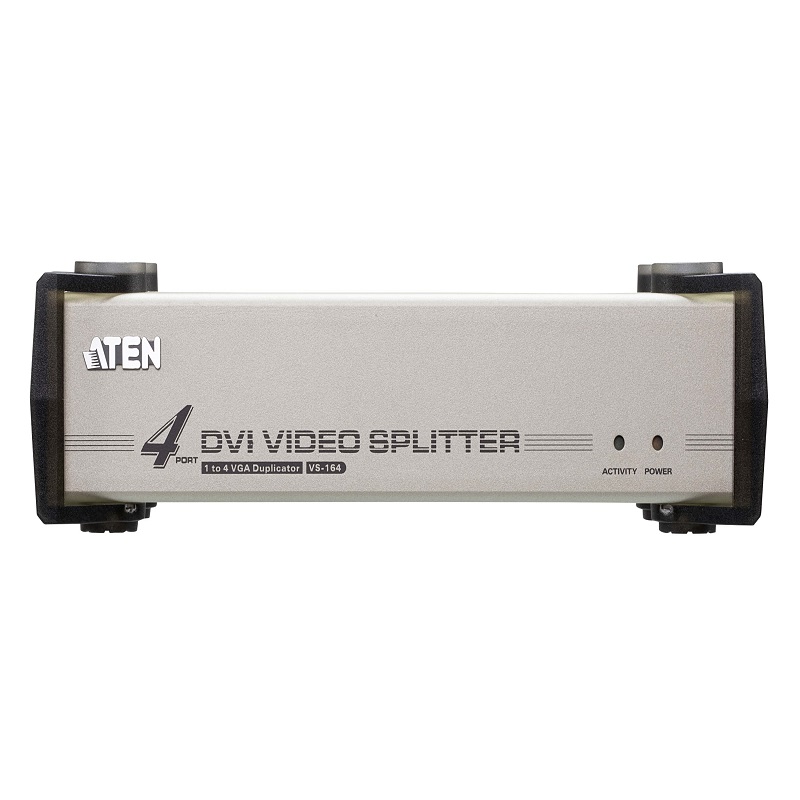

4-Port DVI/Audio Splitter

Product Code : VS164

Brand Category : Video Splitters

Description

Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
Fully compliant with DVI-Digital and DVI-Analog.
Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
Speaker enabled for audio enjoyment.
Cascadable to 3 levels - provides up to 64 video signals.
Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
Installs in minutes.
Maintains highest single link video resolution (up to 1920 x 1200).
DDC, DDC2, DDC2B Compatible (Port 1 only).
HDCP Compliant.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Technical Specification

Video Input
Interfaces	1 x DVI-I Female (White)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	4 x DVI-I Female (White)
Impedance	100 Ω
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDCP Compatible
Max. Resolution	Up to 1920 x 1200
Max. Distance	Up to 5 m
Audio
Input	1 x Mini Stereo Jack Female (Green)
Output	4 x Mini Stereo Jack Female (Green)
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:3.95W:19BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.72 kg ( 1.59 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Carton Lot	5 pcs
