4-Port HDMI Cat 5 Splitter

Product Code : VS1804T

Brand Category : Video Splitters

Description

One HDMI input to 4 HDMI outputs via Cat 5e cables
Extends displays up to 60 m
Supports HDMI (3D, Deep color)
Supports Dolby True HD and DTS HD Master Audio
Offers local HDMI output
HDCP compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
Features RS-232 serial port for command controls *
Cascadable to three levels
Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
EDID mode selection
Rack-mountable

Note: The VS1804T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output

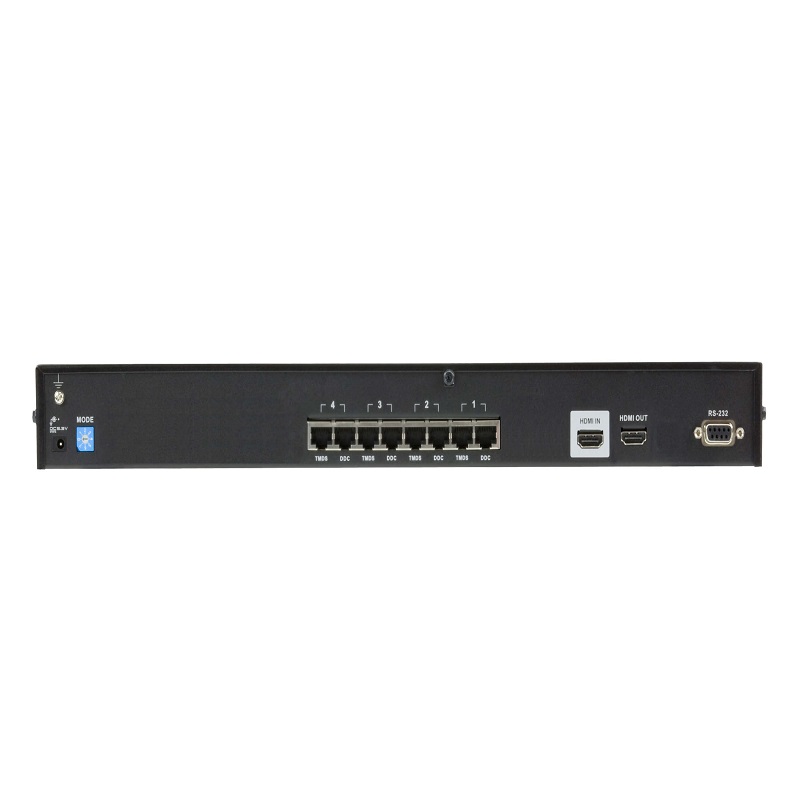

Interfaces	1 x HDMI Type A Female (Black) - Local Output 4 x RJ-45 Female
Impedance	100 Ω
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p (Depends on connected receiver)
Max. Distance	Up to 60 m (Depends on connected receiver)
Audio
Input	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings	EDID Mode: Default / Port 1 / Learn
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5.3V:5.2W:24BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.10 kg ( 4.63 lb )
Dimensions (L x W x H)	43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
Carton Lot	3 pcs
