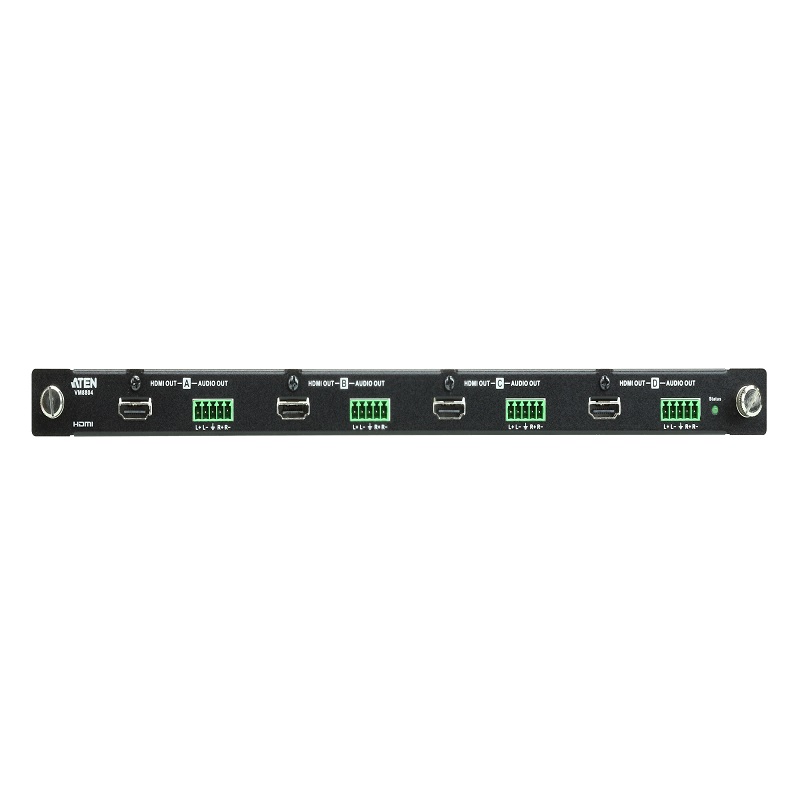

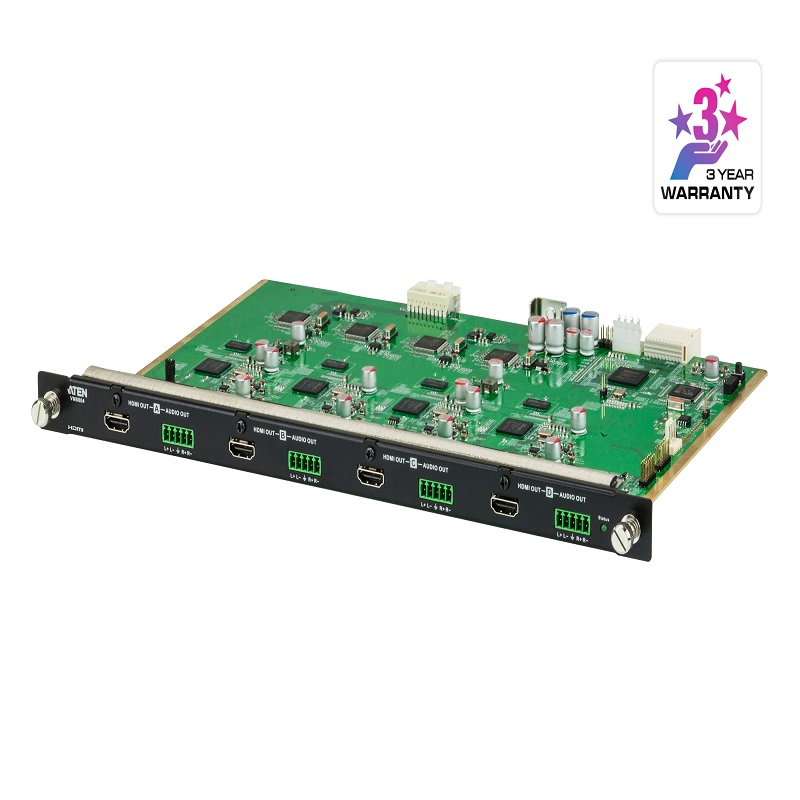

4-Port HDMI Output Board with Scaler

Product Code : VM8804

Brand Category : Video Matrix Switches

Description

4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
HDMI (3D, Deep Color); HDCP 1.4 Compatible
Seamless Switch™– provides continuous video streams, realtime switching and stable signal transmission*
Built-in scaler on each output port to support the scaling function for different video Resolutions
Consumer Electronics Control (CEC) support
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
Built-in EDID wizard – provides an easy way to customized EDID settings
Hot-swappable design for easy integration of I/O boards
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

* Note: If Seamless Switch is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolution features. To use of these features, you must disable Seamless Switch. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Technical Specification

Video Output
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Up to 15m
Video
Max. Data Rate	6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1920 x 1200
Audio
Output	4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced.
Power Consumption	23.13W:108BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Carton Lot	2 pcs
