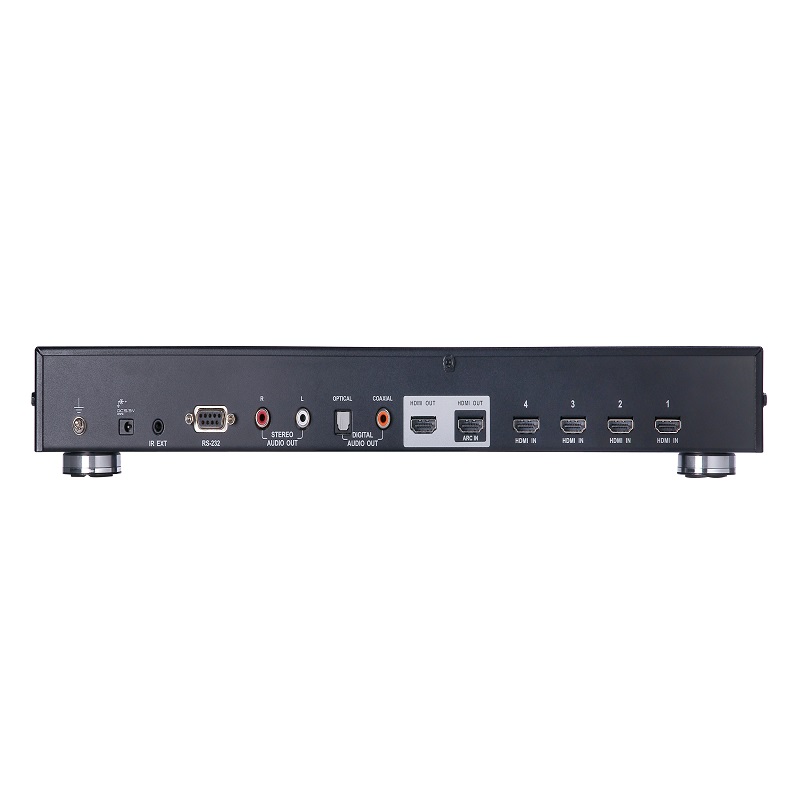

4-Port HDMI Switch with Dual Output

Product Code : VS482

Brand Category : Video Splitters

Description

Allows up to four HDMI A/V sources to be connected to two HDMI displays
HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
Supports Dolby True HD and DTS HD Master Audio
Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
OSD for system configuration setting and information display
Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
Feature EDID Expert technology to set up different configurations via different EDID mode
Allows users to view the HDMI input source port / device for easy selection
Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
Built-in bi-directional RS-232 serial control port for high-end system control *
Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
Rack mountable

* Note: The VS482 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @1920*1080@60 (4:4:4)
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @1920*1080@60 (4:4:4)
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Audio Return Channel, Deep Color) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Audio
Input	4 x HDMI Type A Female (Black)
Output	Analog: 2 x RCA (Red / White) Digital: 1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Auto
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:5.74W:27BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.17 kg ( 4.78 lb )
Dimensions (L x W x H)	43.72 x 15.86 x 4.40 cm (17.21 x 6.24 x 1.73 in.)
Carton Lot	3 pcs
