4-Port PS/2-USB VGA KVM Switch

4-Port PS/2-USB VGA KVM Switch

Product Code : CS84U

Brand Category : Desktop KVM Switches


Description


"

  • One PS/2-USB VGA console controls four VGA interface computers.
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2048 x 1536; DDC2B
  • Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping - supports English, Japanese, and French keyboards
  • Gaming keyboard support
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Bus-Powered

    * 1. PC keyboard combinations emulate Mac/Sun keyboards
    2. Mac/Sun keyboard work only with their own computers

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 4
Port Selection Hotkey, Pushbutton, USB Mouse

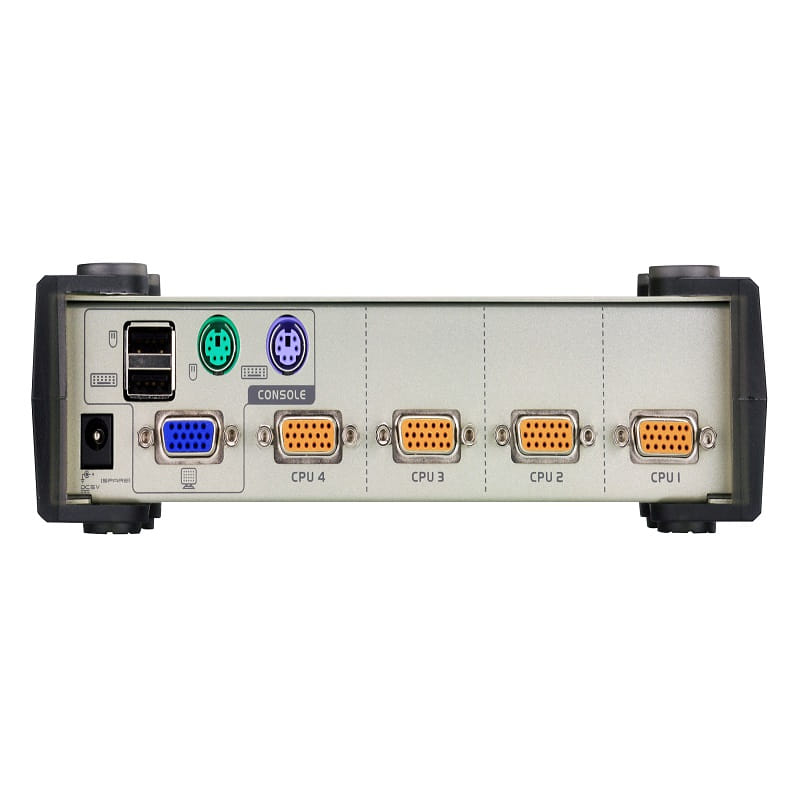

Connectors
Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports 4 x SPHD-18 Female (Yellow)
Power 1 x DC Jack

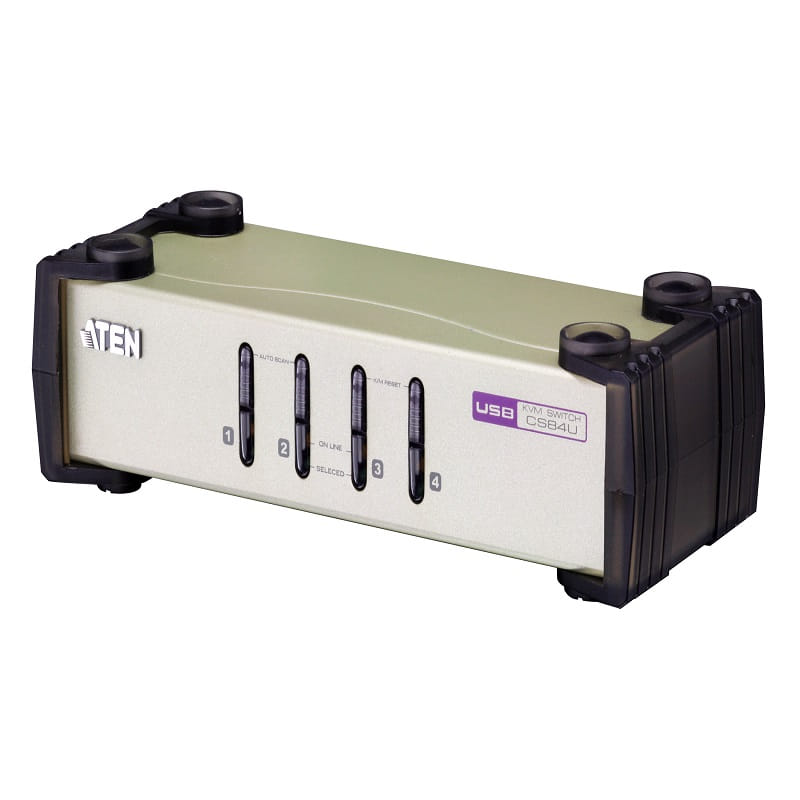

Switches
Selected 4 x Pushbutton
LEDs
Online 4 (Orange)
Selected 4 (Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536 @ 60 Hz; DDC2B
Scan Interval 3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption DC5V:0.87W:13BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.77 kg ( 1.7 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
