4-Port PS/2-USB VGA/Audio KVM Switch

Product Code : CS1754

Brand Category : Rack KVM Switches

Description

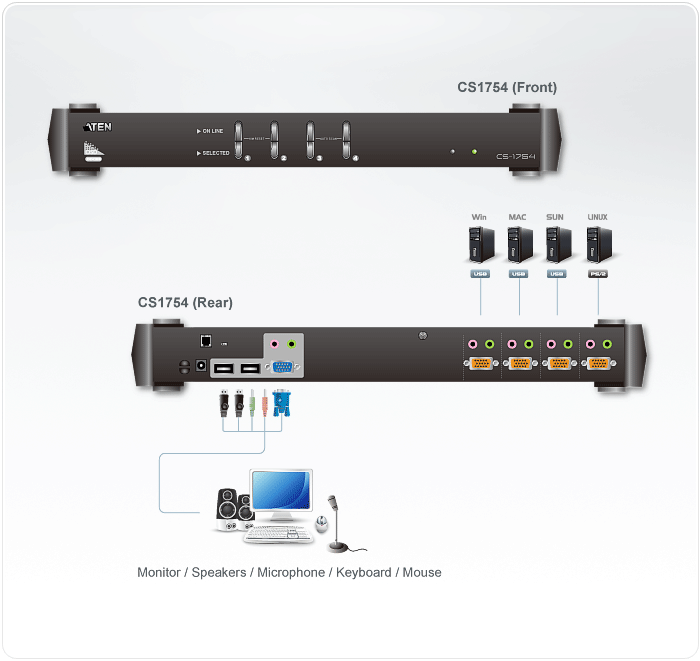

One USB console controls 4 computers.
Cascadable up to 3 levels - provides up to 64 computers.
Dual interface supports with computers with PS/2 or USB keyboards and mice.
Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
Auto PS/2 and USB interface detection.
Buzzer On/Off via hotkey and OSD.
Computer selection via front panel pushbuttons, hotkeys and OSD.
Superior video quality - up to 2048 x 1536; DDC2B.
Firmware upgradable.
With speaker and microphone support.
ATEN USB ASIC inside.
Available in silver and black.
Rack mountable in 19"" system rack.
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
For more information about KVMs which can connect to CS1754, see Compatible KVM Table.

Technical Specification

Computer Connections
Direct	4
Maximum	64 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton

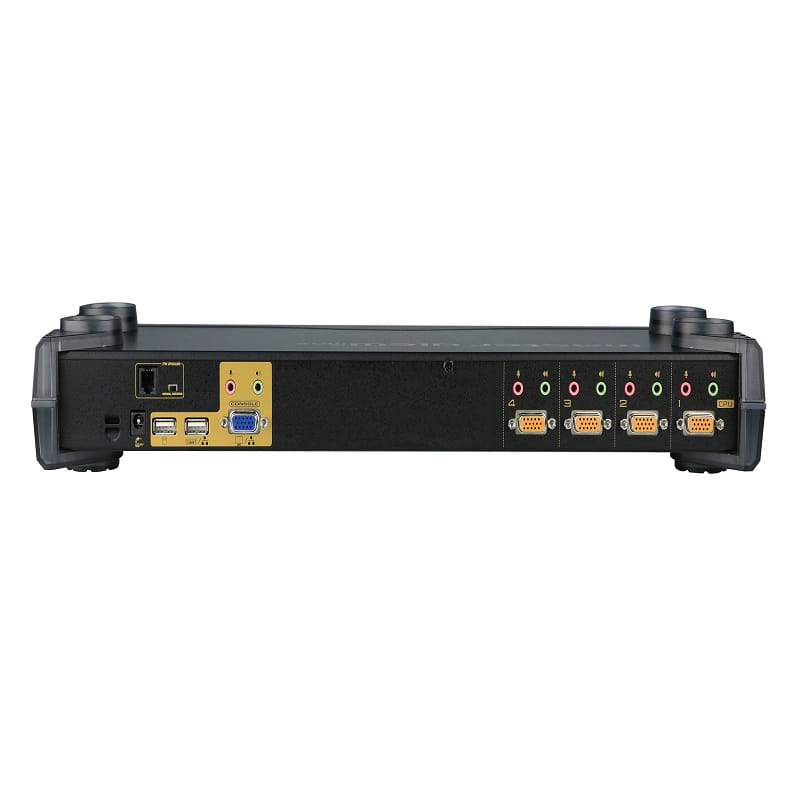

Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade	1 x RJ- 11 Female
Power	1 x DC Jack (Black)
Switches
Ports	4 x Pushbutton
Firmware Upgrade	1 x Slide
Reset	1 x Semi-recessed Pushbutoon
LEDs
Online	4 (Orange)
Selected	4 (Green)
Power	1 (Blue)
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-255 seconds (default: 5 secs.)
Power Consumption	DC5V:1.63W:12BTU
Environmental
Operating Temperature	0-50˚C
Storage Temperature	-20-60˚C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	2.64 kg ( 5.81 lb )
Dimensions (L x W x H)	43.72 x 16.10 x 4.40 cm (17.21 x 6.34 x 1.73 in.)
