4-Port PS/2-USB VGA/Audio KVMP™ Switch

Product Code : CS1734A

Brand Category : Desktop KVM Switches

Description

One USB console controls 4 computers and two additional USB devices
2 port USB Hub built in
Dual interface supports computers with PS/2 or USB keyboards and mice
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Auto PS/2 and USB interface detection
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers

Technical Specification

Computer Connections	4
Port Selection	Hotkey, Pushbutton
USB Port / Audio Port Selection	Hotkey

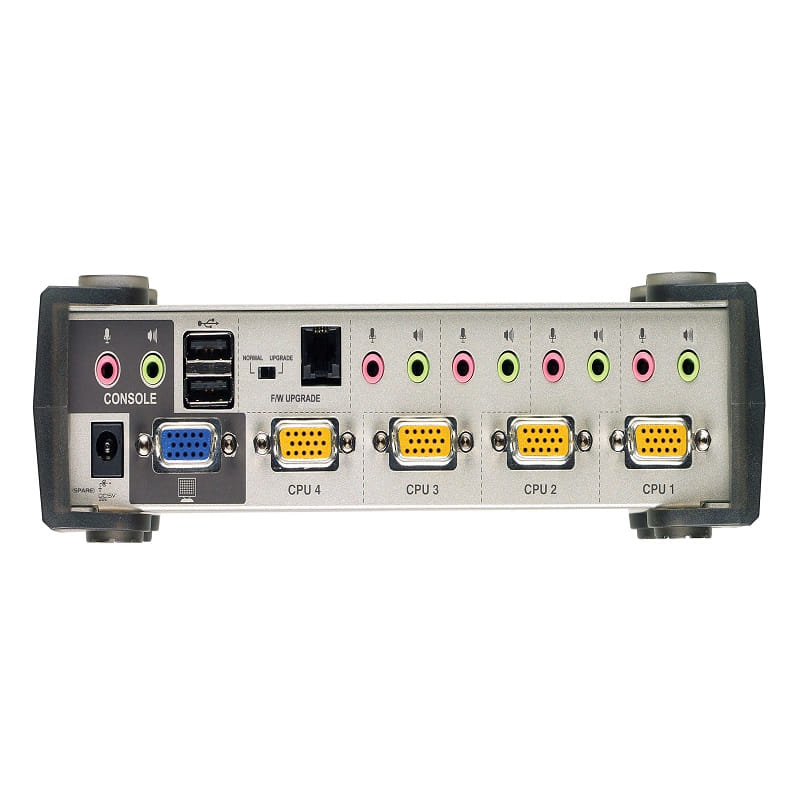

Connectors
Console Ports	2 x USB Type A Female (White) 1 x HDB-15 Female (Black) 1 x Mini Stereo Jack Female(Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	4 x SPHD-15 Female (Yellow) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
USB Hub	2 x USB Type A Female (Black)
Firmware Upgrade	1 x RJ-11 Female (Black)
Power	1 x DC Jack
Switches
Ports	4 x Pushbutton
Firmware Upgrade	1 x Slide
LEDs
Online / Selected	4 (Orange)
USB Link	4 (Green)
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 seconds
Power Consumption	DC5V:1.02W:30BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.78 kg ( 1.72 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
