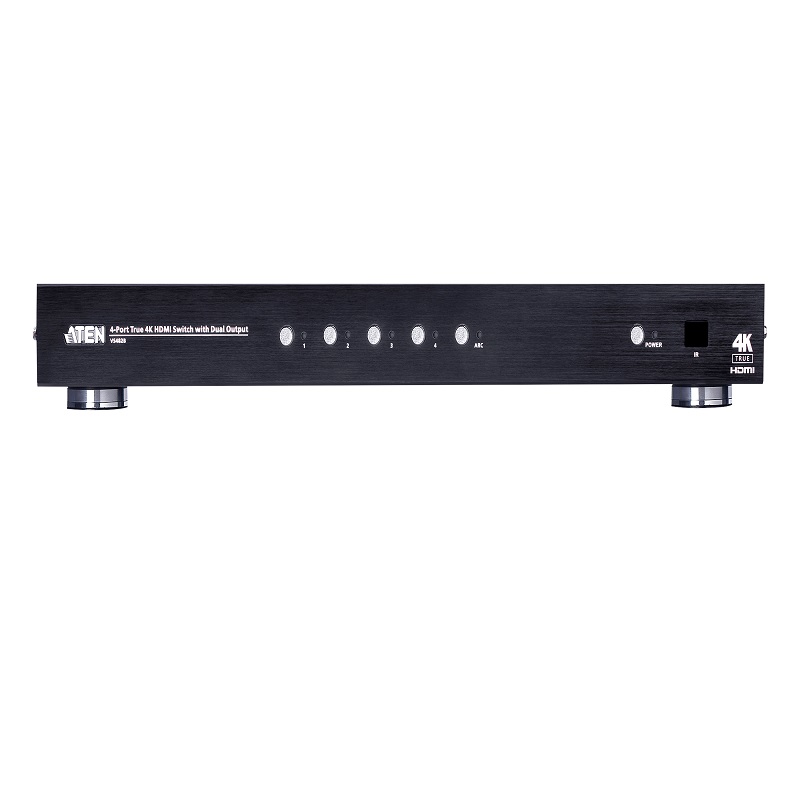

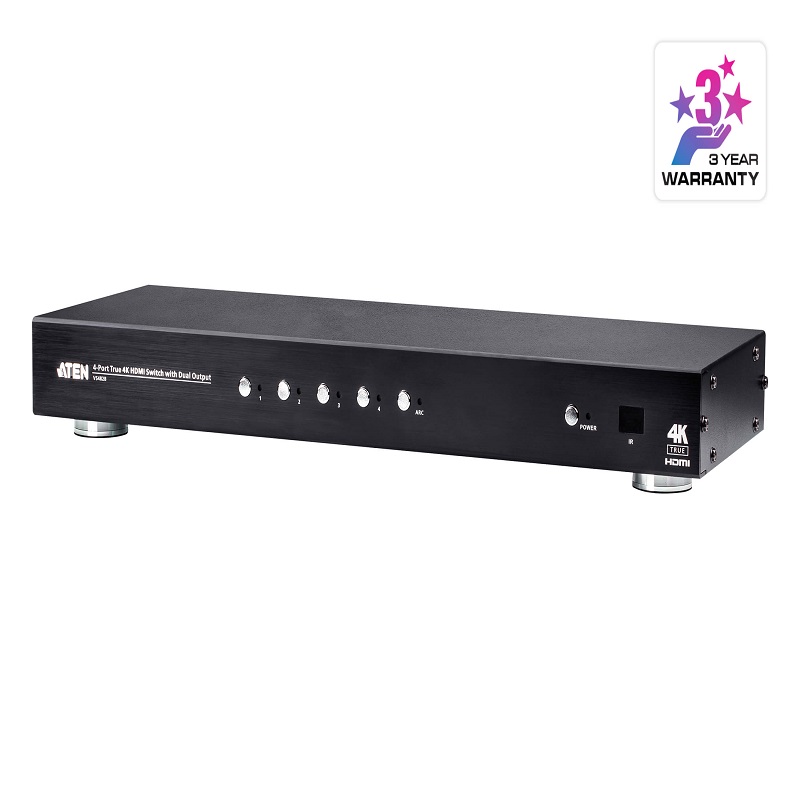

4-Port True 4K HDMI Switch with Dual Output

Product Code : VS482B

Brand Category : Video Switches

Description

Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
OSD for system configuration settings and information display
Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Built-in bi-directional RS-232 serial control port for high-end system control
HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
Supports 5.1 channel audio output
Supports Consumer Electronic Control (CEC)
Rack mountable

Technical Specification

LEDs
Input	LED (Green) x 4 (HDMI-In)
Audio	LED (Green) x 1 (ARC ON/OFF)
Power	LED (Green/Orange) x 1 (Power ON/OFF)
Switches
Video Input Port Selection	Push button x 4 (HDMI-In)
Mode Selection	Push button x 1 (ARC ON/OFF)
Power	Push button x 1 (Power ON/OFF)
Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5m (4096x2160@60Hz, 4:4:4)
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5m (4096x2160@60Hz, 4:4:4)
Video
Max. Data Rate	18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Audio Return Channel, Deep Color) HDCP 2.2 Consumer Electronics Control (CEC)
Max. Resolution	4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance	Up to 5m (input / output)
Audio
Input	4 x HDMI Type A Female (Black)
Output	Analog: 2 x RCA (Red / White) Digital: 2 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange)
Control
RS-232	Function: Port switching & FW upgrade Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black) 1 x IR Receiver
EDID Settings	EDID Mode: Default (4K@60Hz) / Port-1 / Remix
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:3.29W:15BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.16 kg ( 4.76 lb )
Dimensions (L x W x H)	43.72 x 15.88 x 4.40 cm (17.21 x 6.25 x 1.73 in.)
Carton Lot	3 pcs
