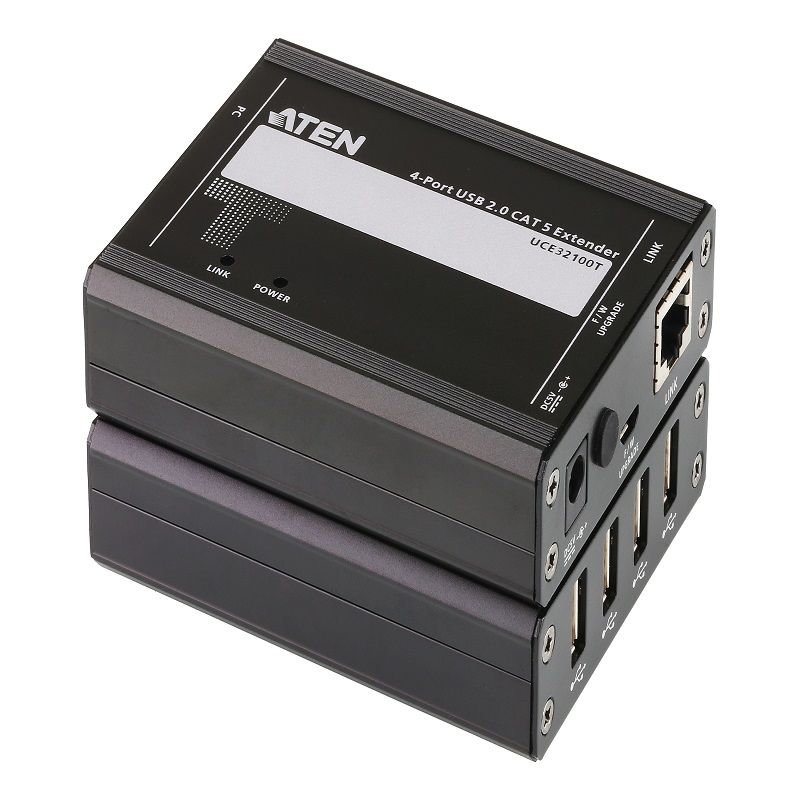

4-port USB 2.0 CAT 5 Extender (100m)

Product Code : UCE32100

Brand Category : Extenders

Description

True USB 2.0 transparent extension over Ethernet Cable up to 100 meters
Supports all USB 2.0 devices up to 480Mbps
USB Lossless – Higher compatibility of remote USB devices
An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
Power supply for remote unit to ensure power delivery to multiple devices at once
Compact size with wall mounting and din rail included for flexible installation
DC jack lock kit included to ensure durable power adapter connection
Supports Windows®, OS X®, and Linux®
Plug-and-play

Technical Specification

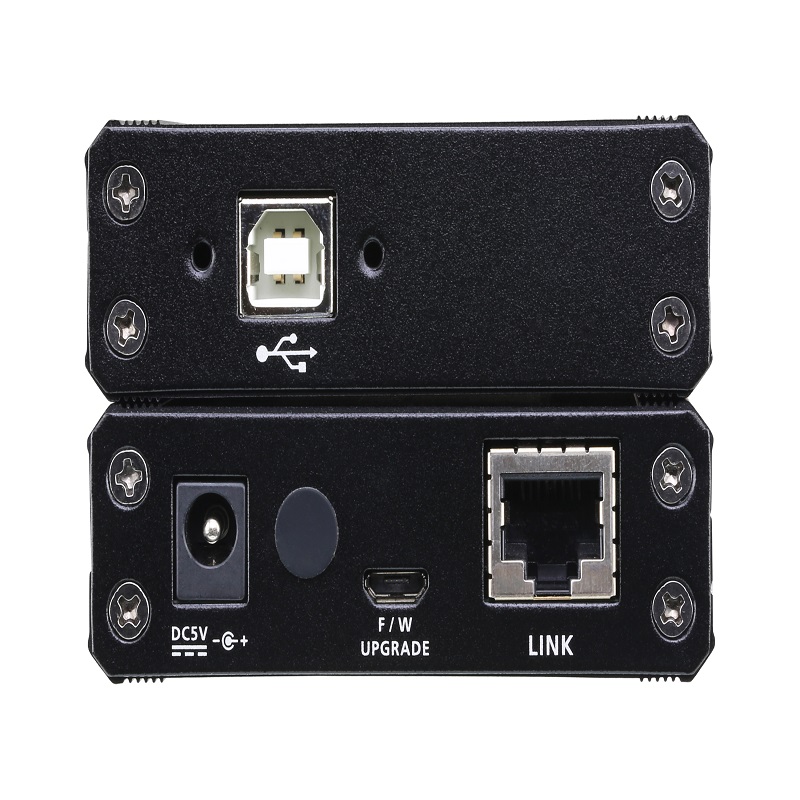

Local Unit
Upstream Port	1 x USB Type B Female
Downstream Port	1 x RJ45 Female 1 x Micro USB Female (Firmware Upgrade)
Power	1 x DC Jack
Remote Unit
Upstream Port	1 x RJ45 Female
Downstream Port	4 x USB Type A Female 1 x Micro USB Female (Firmware Upgrade)
Power	1 x DC Jack
USB Specification	USB 2.0 High-Speed
Cable Type	CAT 5 UTP Cable
Signal Range	100m
LEDs
Status	2 x LED
Power Consumption	DC5V:1.708W:8BTU DC5V:1.649W:50BTU
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Weight	0.21 kg ( 0.46 lb )
Housing	Metal
Dimensions (L x W x H)	10.15 x 7.90 x 2.44 cm (4 x 3.11 x 0.96 in.)
