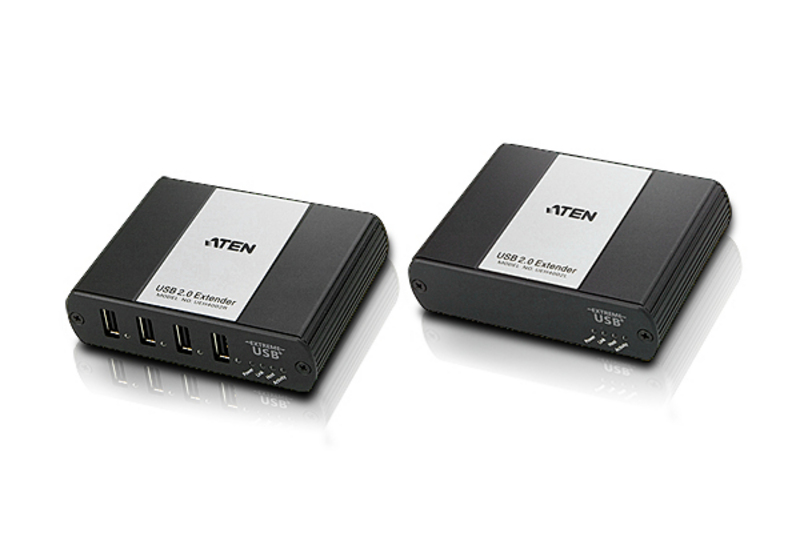

4-Port USB 2.0 Cat 5 Extender (up to 100m)

4-Port USB 2.0 Cat 5 Extender (up to 100m)

Product Code : UEH4002

Brand Category : Extenders

Description

  • Extends the USB transmission distance of up to 100 m
  • Supports all USB 2.0 devices up to 480 Mbps
  • ExtremeUSB® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
  • Fully compliant with USB Electrical and Timing
  • LED indicators display port focus
  • Works with all major operating systems: Windows®, OS X®, and Linux®

Add to Query Cart PDF Download

Technical Specification

FunctionUEH4002LUEH4002R
Connectors
USB Port1 x USB Type B Female (White)1 x RJ-45 Female
Downstream1 x RJ-45 Female4 x USB Type A Female (White)
Power1 x DC Jack1 x DC Jack
USB Specification2.0 / 1.1 High / Full / Low Speed2.0 / 1.1 High / Full / Low Speed
USB Devices SupportedN/A4 USB Devices
Maximum USB Devices SupportedN/ADirect: 4 devices
Cascaded: 3 hubs, 11 devices
Power ConsumptionDC 5V, 2.5WDC 5V, 2.5W
Environmental
Operating Temperature0–50°C0–50°C
Storage Temperature-20–70°C-20–70°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.36 kg ( 0.79 lb )0.36 kg ( 0.79 lb )
Dimensions (L x W x H)10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)		10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)
