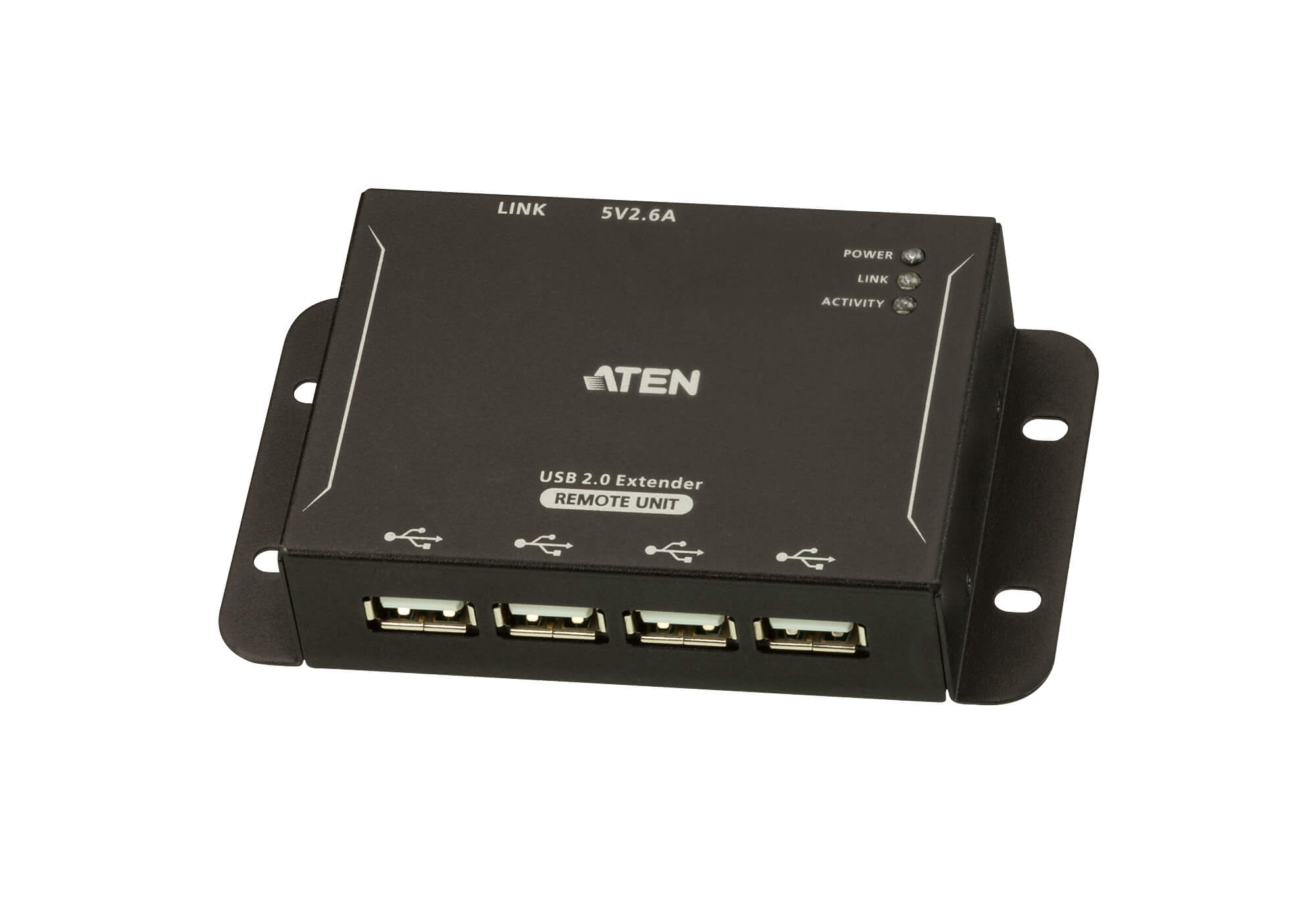

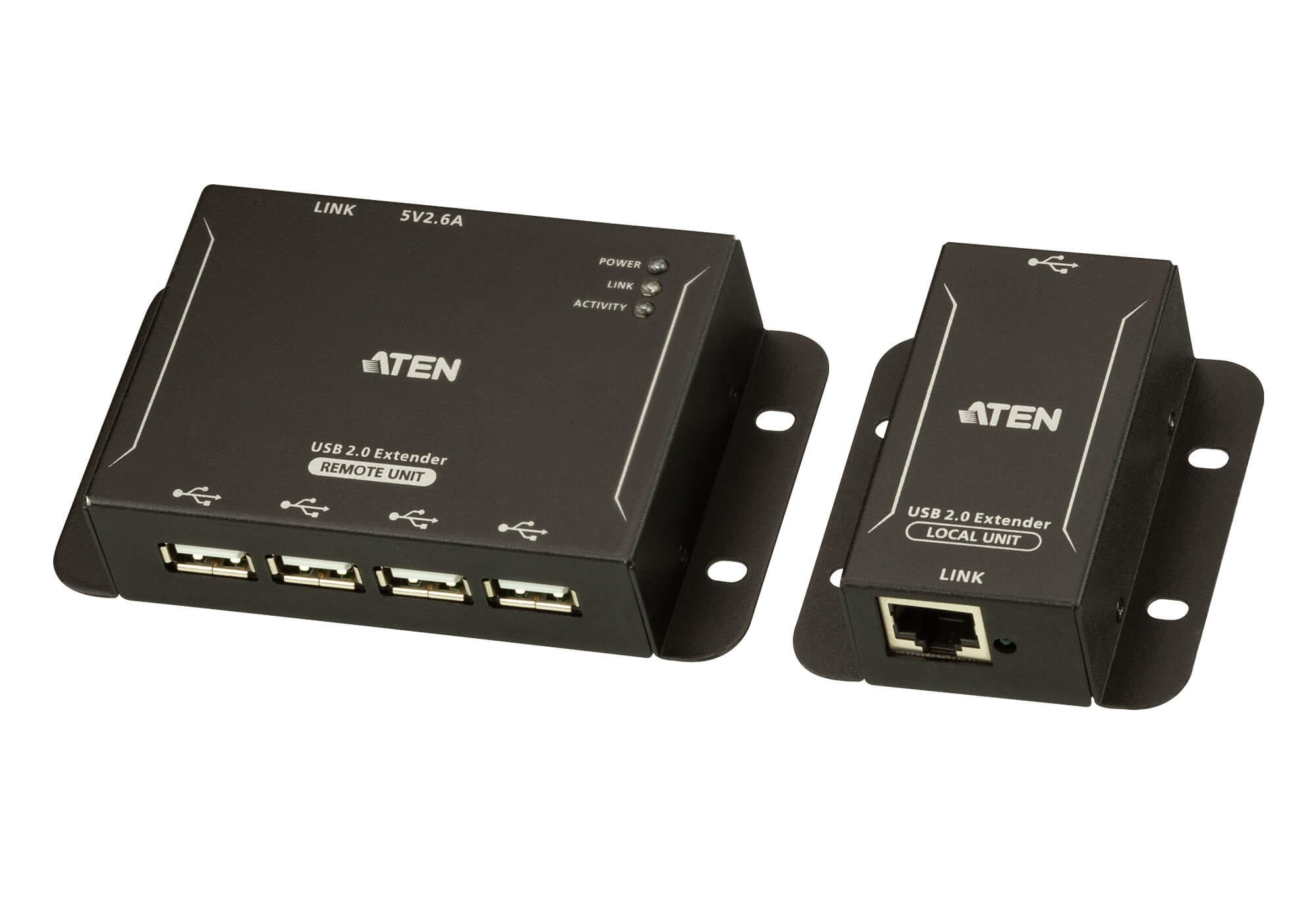

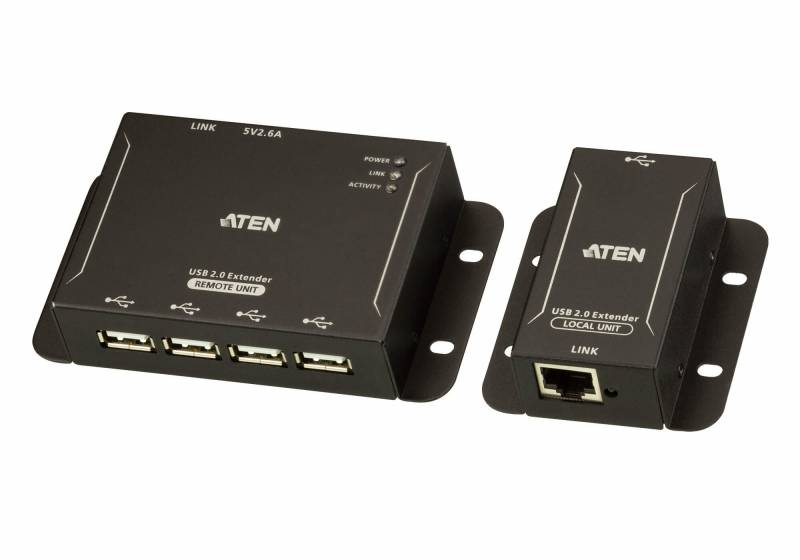

4-Port USB 2.0 CAT 5 Extender (up to 50m)

4-Port USB 2.0 CAT 5 Extender (up to 50m)

Product Code : UCE3250

Brand Category : Extenders

Description

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over an Ethernet Cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play

Add to Query Cart PDF Download

Technical Specification

FunctionUCE3250LUCE3250R
Connectors
USB Port1 x USB Type B Female4 x USB Type A Female
Link1 x RJ45 Female1 x RJ45 Female
PowerN/A1 x DC Jack
USB Specification2.0 / 1.1 High / Full / Low Speed2.0 / 1.1 High / Full / Low Speed
USB Devices SupportedN/A4 Devices
Power ConsumptionBTUDC5V:13W:48BTU
Environmental
Operating Temperature0–50°C0–50°C
Storage Temperature-20–70°C-20–70°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
Weight0.09 kg ( 0.2 lb )0.16 kg ( 0.35 lb )
HousingMetalMetal
Dimensions (L x W x H)6.70 x 6.02 x 2.37 cm
(2.64 x 2.37 x 0.93 in.)		6.33 x 11.04 x 2.41 cm
(2.49 x 4.35 x 0.95 in.)
