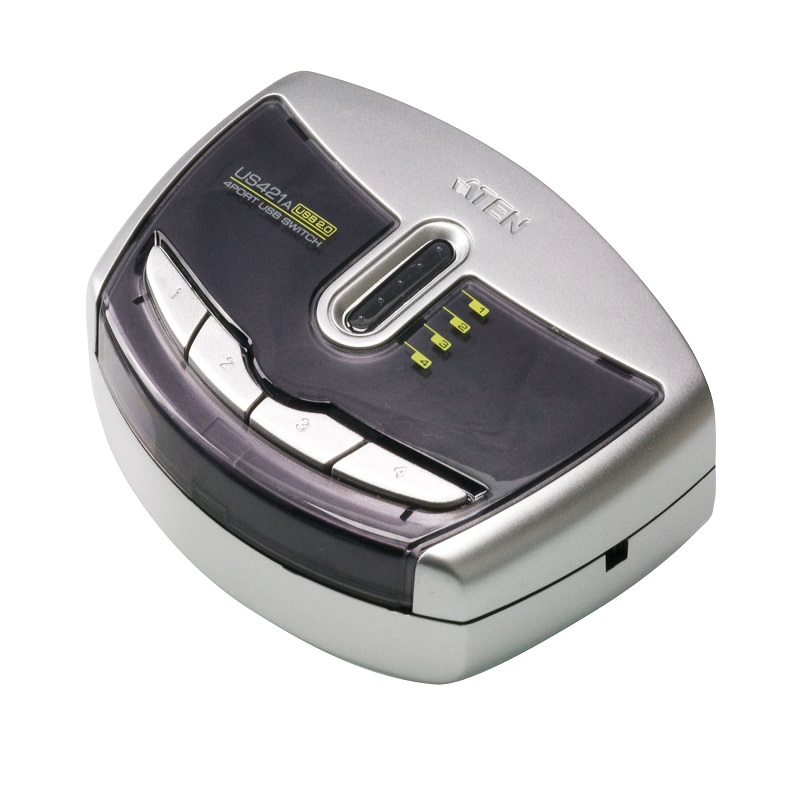

4-Port USB 2.0 Peripheral Switch

Product Code : US421A

Brand Category : Docks and Switches

Description

Enables four computers to share a single USB peripheral device
Simple port selection via pushbuttons, configuration utility, or Auto Switch function
Auto Switch Function - no need for print server
USB 2.0 compliant
Supports transfer rates up to 480 Mbps
Multiplatform support - Windows and Mac
LED indicators display port focus
Overcurrent protection
Bus-powered
Hot pluggable
Buzzer indicates switching between computers
Supports multifunction printers

*The Auto Switch Function may be disabled if your operating system is Windows 8.1 or lower with a USB 3.0 driver installed

Technical Specification

Console Connections	4
Port Selection	Pushbuttons, Software, Auto Switch

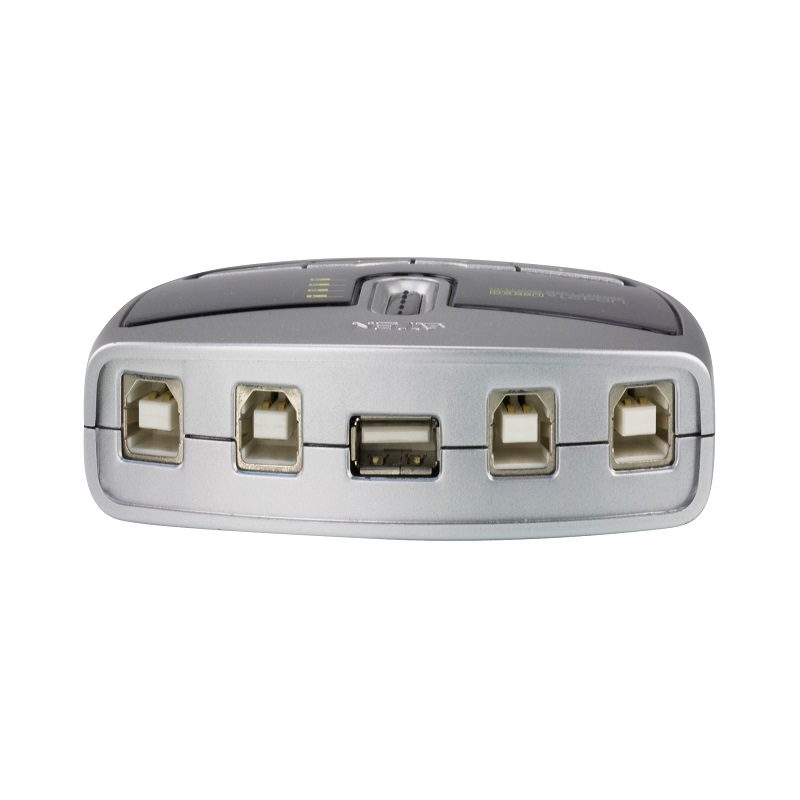

Connectors
Computer	4 x USB Type B
Device	1 x USB Type A
LEDs
Devices	1 (Orange)
Selected	4 (Green)
Switches	4 x Pushbutton
Power	USB Bus Powered
Environmental
Operating Temperature	0–40˚C
Storage Temperature	-20–60˚C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.10 kg ( 0.22 lb )
Dimensions (L x W x H)	10.40 x 7.96 x 2.20 cm (4.09 x 3.13 x 0.87 in.)
