4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch

4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch

Product Code : CS1944DP

Brand Category : Desktop KVM Switches


Description


"

  • One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
  • Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
  • 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Dual-Mode technology (DP++)1
  • Supports MST (Multi-Stream Transport)2
  • Supports Console keyboard emulation / bypass feature
  • Supports Console mouse emulation / bypass feature
  • Independent switching of KVM, USB, and Audio
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • DisplayPort 1.2 compliant; HDCP compliant3
  • Supports HD audio4
  • Power on detection
  • Firmware upgradable

    Note:
    1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
    2. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
    3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue
    4. HD audio through DisplayPort cannot be switched independently

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands

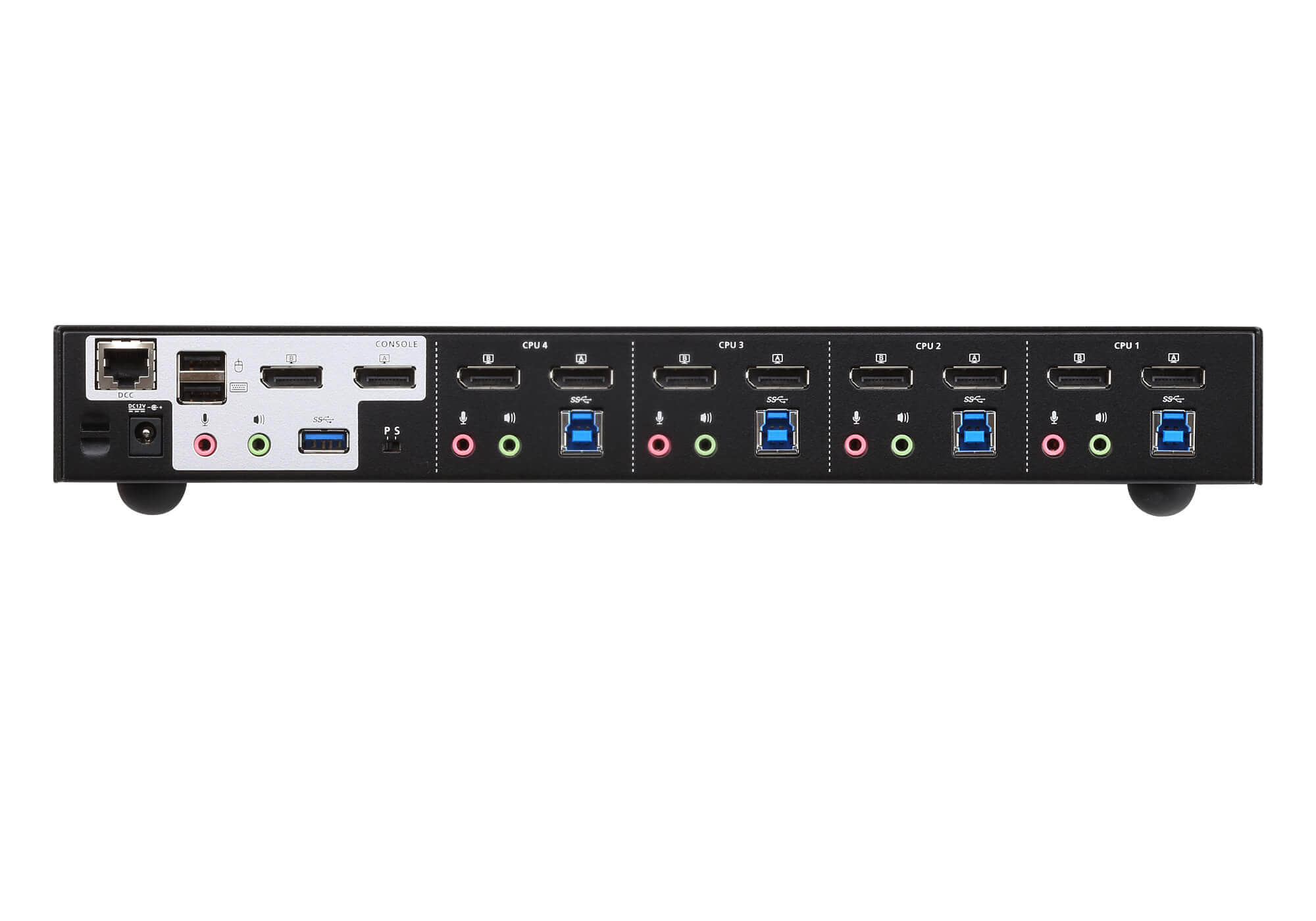

Connectors
Console Ports 2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
8 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

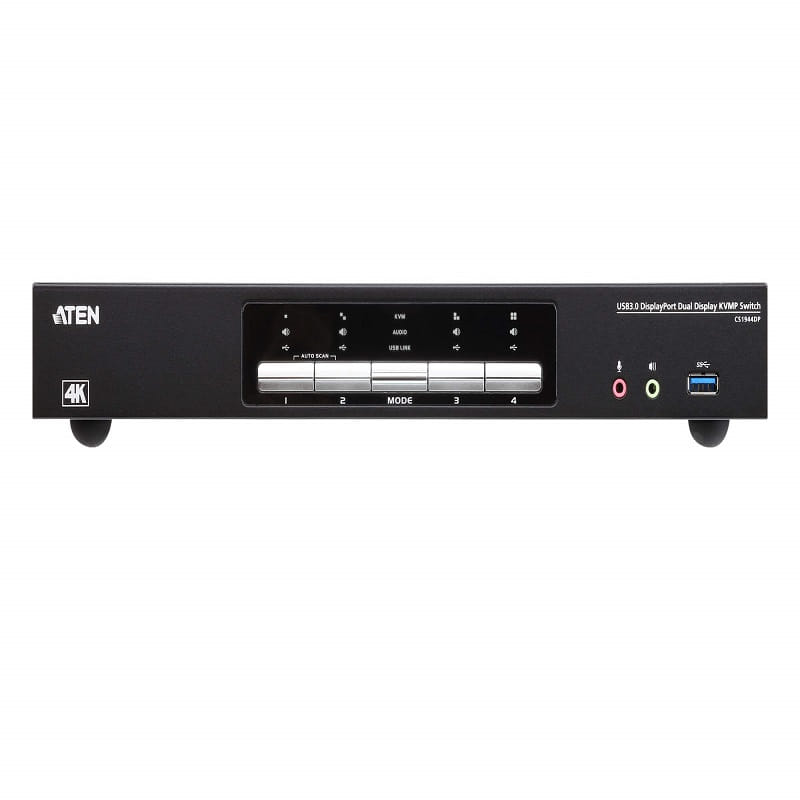

LEDs
KVM 5 (Orange)
Audio 5 (Green)
USB Link 5 (Green)
Switches
Selected 5 x Pushbutton
Station Selection 1 x Slide Switch
Emulation
Keyboard / Mouse USB
Video Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:6.125W:85BTU
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.51 kg ( 3.33 lb )
Dimensions (L x W x H) 33.50 x 15.66 x 4.40 cm
(13.19 x 6.17 x 1.73 in.)
