4-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC

4-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC

Product Code : CS1924ATC

Brand Category : Desktop KVM Switches


Description


"

  • One USB / DisplayPort console controls 4 DisplayPort computers and shares 2 USB peripherals
  • Supports 2048 x 2048 @ 60 Hz screen resolutions dedicated for radar monitoring; maximum resolution up to 4096 x 2160 @ 60 Hz
  • Zero-Second Switch – provides continuous video stream and real-time switching
  • Supports power failover – 2 DC jacks for power redundancy to ensure constant availability for mission-critical applications
  • Computer Selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, and remote port selector
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
  • EDID Expert™ – smooth power- up, high-quality display and use of the best video resolution across different screens
  • Supports serial port switching for legacy devices
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • DisplayPort 1.2, and HDCP compliant
  • Supports HD audio*
  • Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
  • Console keyboard emulation / bypass feature supports most multimedia keyboards
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Power on detection
  • Auto scan
  • Firmware upgradable

    Note: HD audio through DisplayPort cannot be switched independently

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 4
Port Selection Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector

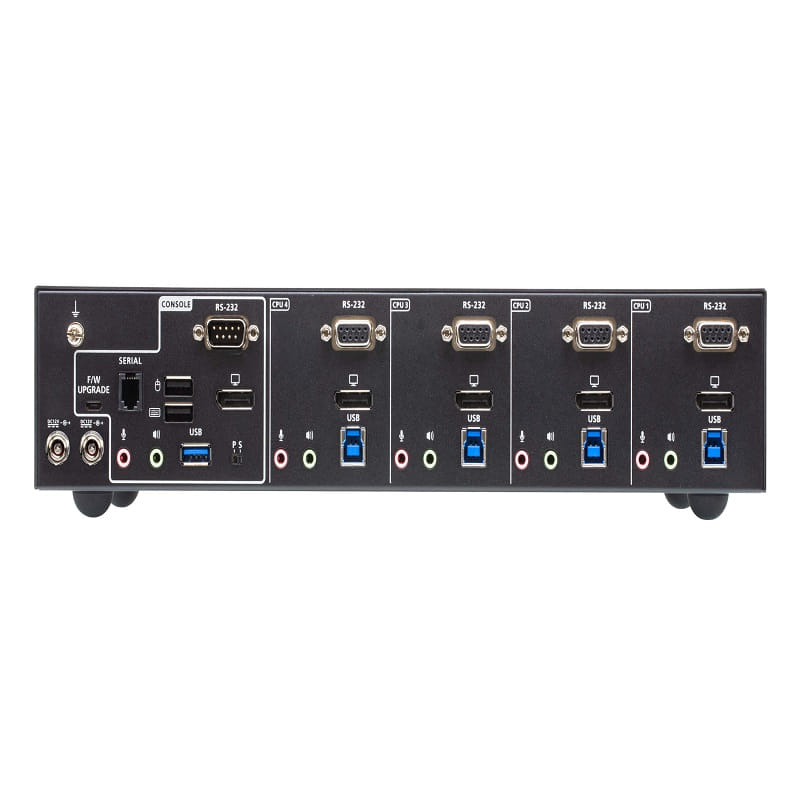

Connectors
Console Ports 2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear)
1 x DB-9 Male
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
4 x DB-9 Female
Power 2 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Remote Port Selector 1 x RJ-11 Female
Firmware Upgrade 1 x micro USB Female
Switches
Selected 5 x Pushbutton
LEDs
USB Link 4 (Green)
Audio 4 (Green)
KVM 4 (Orange)
Emulation
Keyboard / Mouse USB
Video Up to 4096 x 2160 @ 60Hz
Power Consumption DC12V:16.84W:137BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.87 kg ( 4.12 lb )
Dimensions (L x W x H) 33.50 x 16.10 x 6.55 cm
(13.19 x 6.34 x 2.58 in.)
