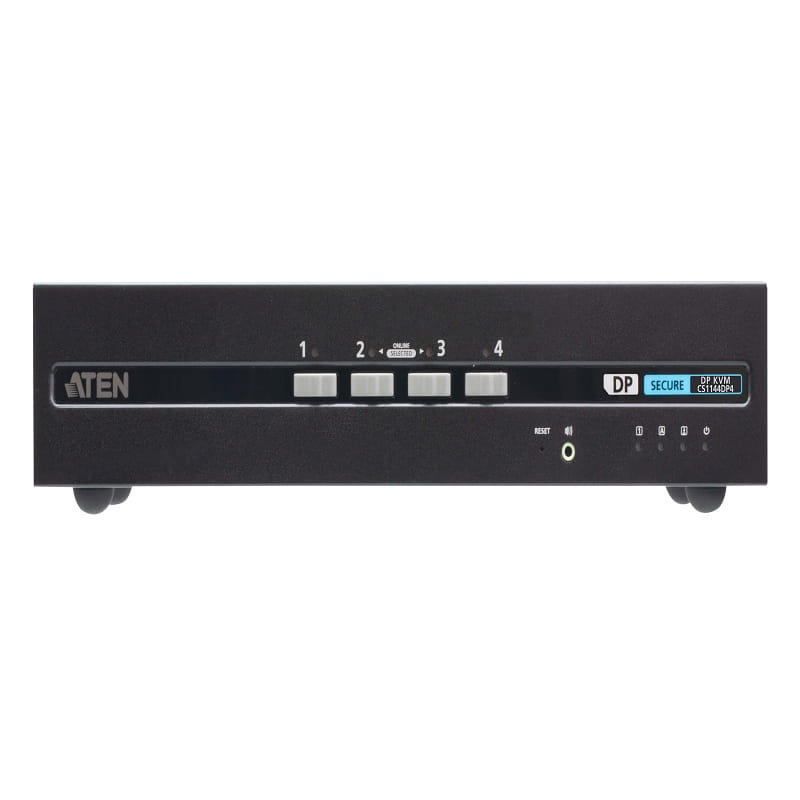

4-Port USB DisplayPort/HDMI Dual Display Universal Secure KVM Switch Kit (PSD PP v4.0 Compliant)

"

• NIAP Common Criteria Compliant
  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements

<!-- Features List-2 -->

• Multi-Layered Security
  • Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
  • Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
  • Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
  • Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), and video are rejected
  • Port selection via pushbuttons / Remote Port Selector (RPS) ¹ only to enhance security
  • LED indicators for peripheral filtering and KVM security status
  • Strict audio filtration protects against audio leakage.
  • Rugged metal enclosure

<!-- Features List-3-->

• Data Channel Isolation and Unidirectional Data Flow
  • True data path isolation – data cannot be transferred between computers
  • The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
  • Unidirectional data flow between console devices and the selected computer is ensured
  • Supports analog audio (speaker only) ²

<!-- Features List-4 -->

• User Data Protection
  • The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched

<!-- Features List-5 -->

• Security Management
  • Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
  • Provides administrative functions for authorized administrators to audit KVM log data

<!-- Features List-6 -->

• Superior Video Quality
  • Superior video quality – up to 4K (3840 x 2160 @ 30Hz) ³
  • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources

    1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
    2. Only analog speaker data input is supported.
    3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.

"
