4-Port USB DVI Dual Link/Audio KVMP™ Switch

4-Port USB DVI Dual Link/Audio KVMP™ Switch

Product Code : CS1784A

Brand Category : Desktop KVM Switches


Description


"

  • 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
  • One USB console controls four computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 2.1 channel surround sound systems

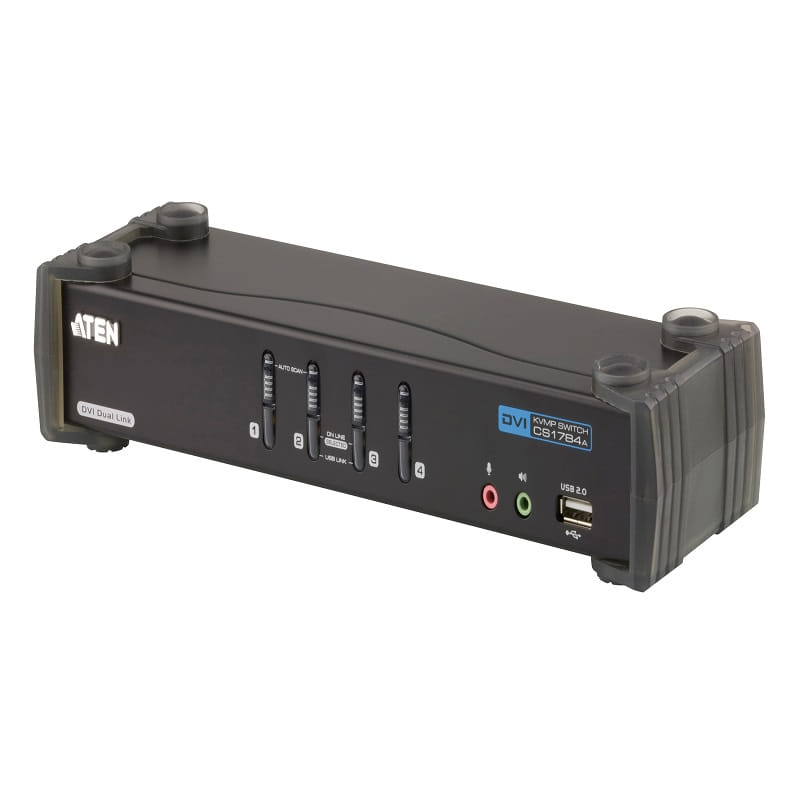

  • Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support – Windows, Linux, Mac, and Sun*
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with the DVI specifications
  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
  • nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

    * PC keyboard combinations emulate Mac/Sun keyboards
    Mac/Sun keyboard work only with their own

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse

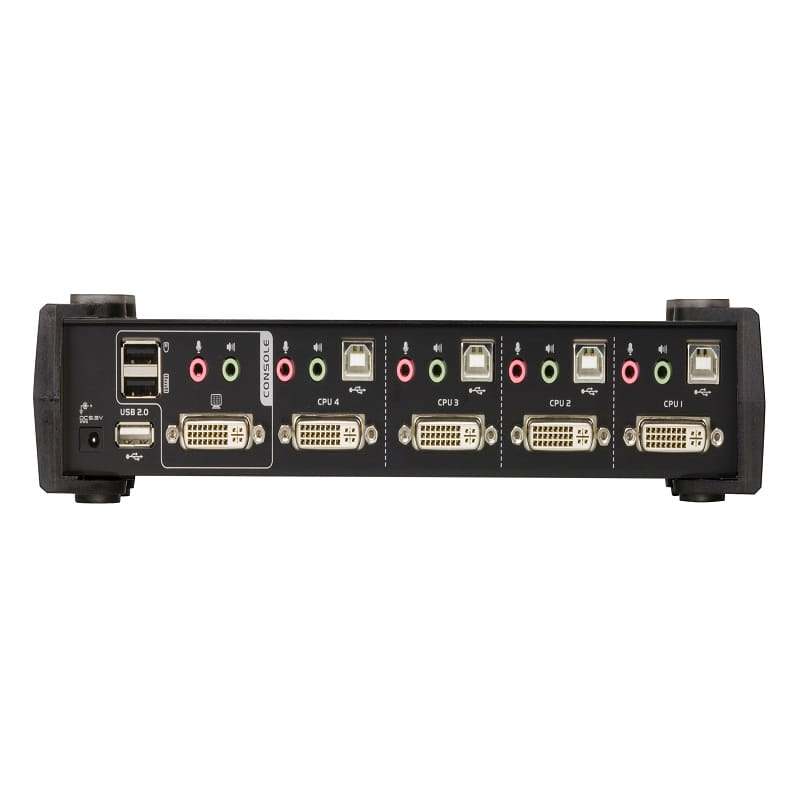

Connectors
Console Ports 1 x DVI-I Female (White)
2 x USB Type A Female (rear panel)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports 4 x DVI-I Female (White)
4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Power Selected 4 x Pushbutton
LEDs
USB Link 4 (Green)
On Line /Selected 4 (Orange)
Emulation
Keyboard / Mouse USB
Video DVI Dual Link: 2560 x 1600 @ 60Hz;
DVI Single Link: 1920 x 1200 @ 60Hz
Scan Interval 1–99 seconds (default: 5 secs.)
Power Consumption DC5.3V:5.91W:53BTU
Environmental
Operating Temperature 0 -50°C
Storage Temperature -20-60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.93 kg ( 2.05 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
