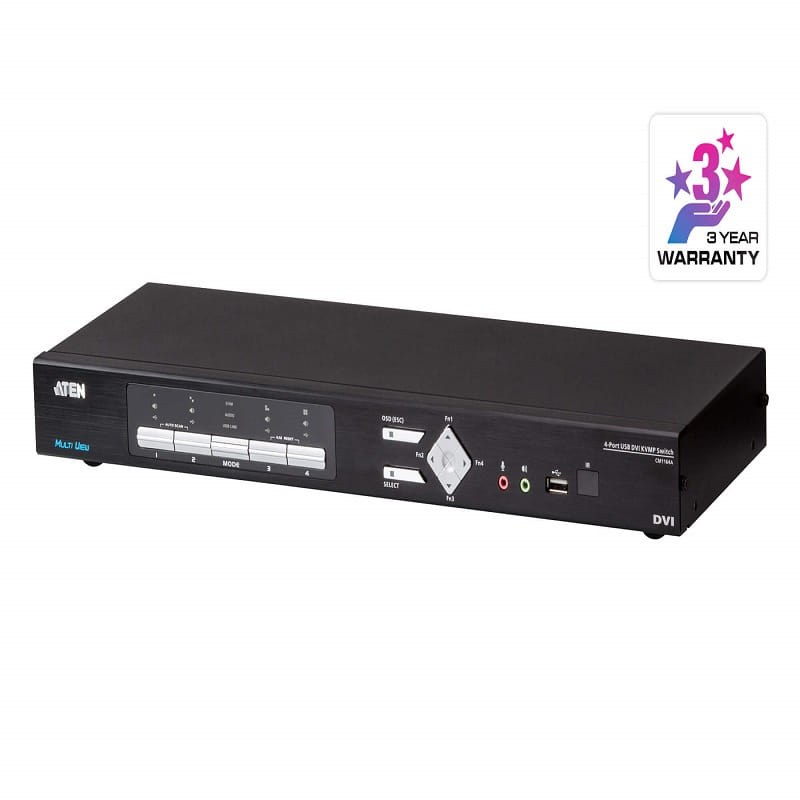

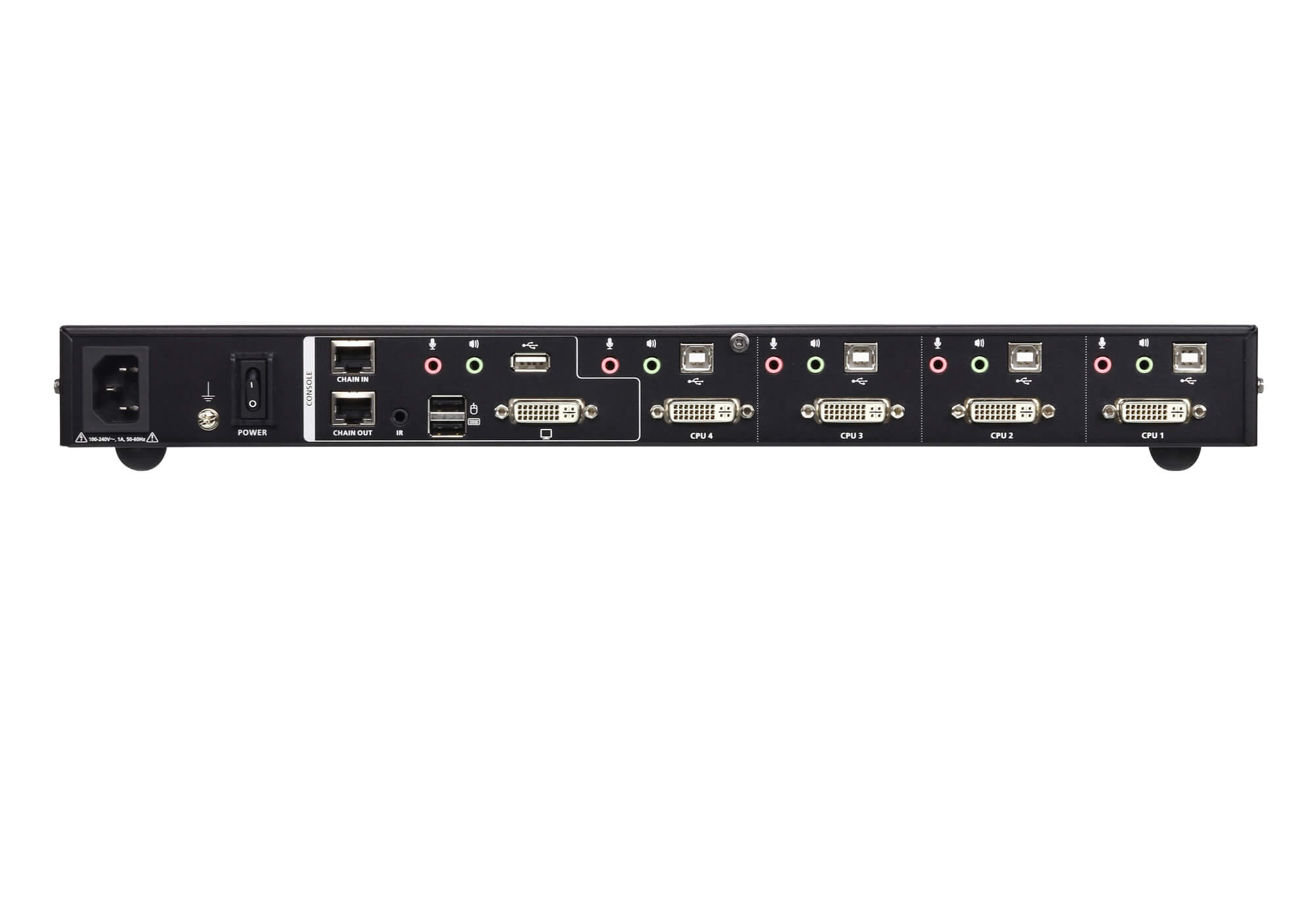

4-Port USB DVI Multi-View KVMP™ Switch

"

• Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
• System configuration via front panel, OSD, IR Remote – display mode and port selection
• Supports superior video quality – Up to 1920 x 1200; YCbCr 4:2:2
• Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
• DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
• Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
• Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands¹
• Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
• Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus
• Supports Extended Desktops Boundless Switching²
• Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
• HDCP 1.4 compliant
• Supports RS-232 commands
• Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
• Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
• Console keyboard emulation / bypass feature that support most multimedia keyboards
• Independent switching for USB peripheral port, audio function and KVM switch focus
• Auto Scan feature
• Power on detection
• Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
• Full bass response provides a rich experience for 2.1 channel audio
• Supports keyboard combinations via emulation (for Sun / Mac)³

  Note:
  1. Mouse port switching is only workable under the mouse emulation mode and applicable to 3-key USB wheel mouse only
  2. This function is only supported by Multi-View KVMP™ Switch using firmware version v2.3.222 or later
  3. PC keyboard combinations emulate Mac keyboard. Mac keyboards only work with their computers

"
